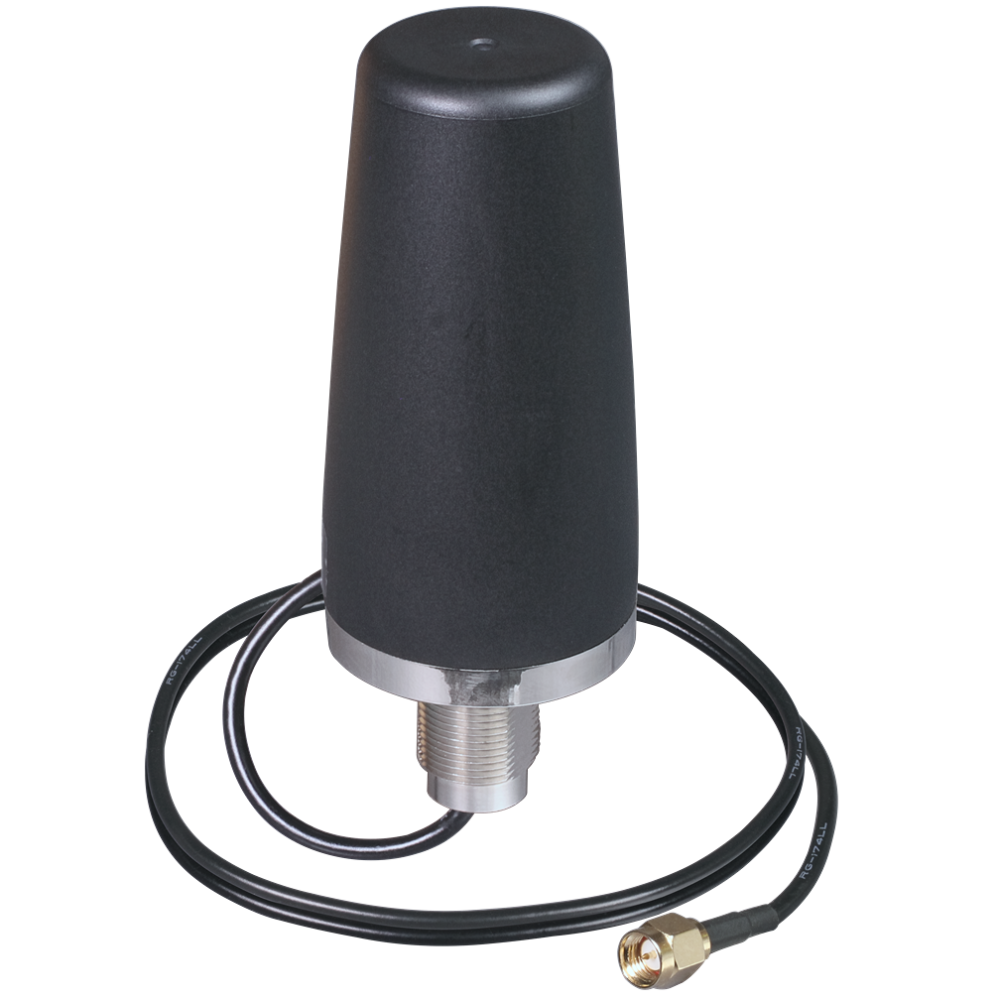

2.4 GHz External Cabled Compact Dome Antenna
The AC17101 series cabled SMA-connector dome antennas provide robust compact, outdoor, omnidirectional antenna solutions for 2.4 GHz IoT applications including Bluetooth®, BLE, WiFi, and ZigBee®. Each antenna supports IP67 and IP65 ingress protection as well as IK-10 impact resistance, all under an attractive, UV-resistant, dome. The 82 mm x 40mm mounted size combines excellent antenna performance with a compact low-profile that fits in many applications from mobile/vehicular roof-mount to fixed vending machine use, and supports use on both metal enclosures or in free space including non-metallic enclosures.

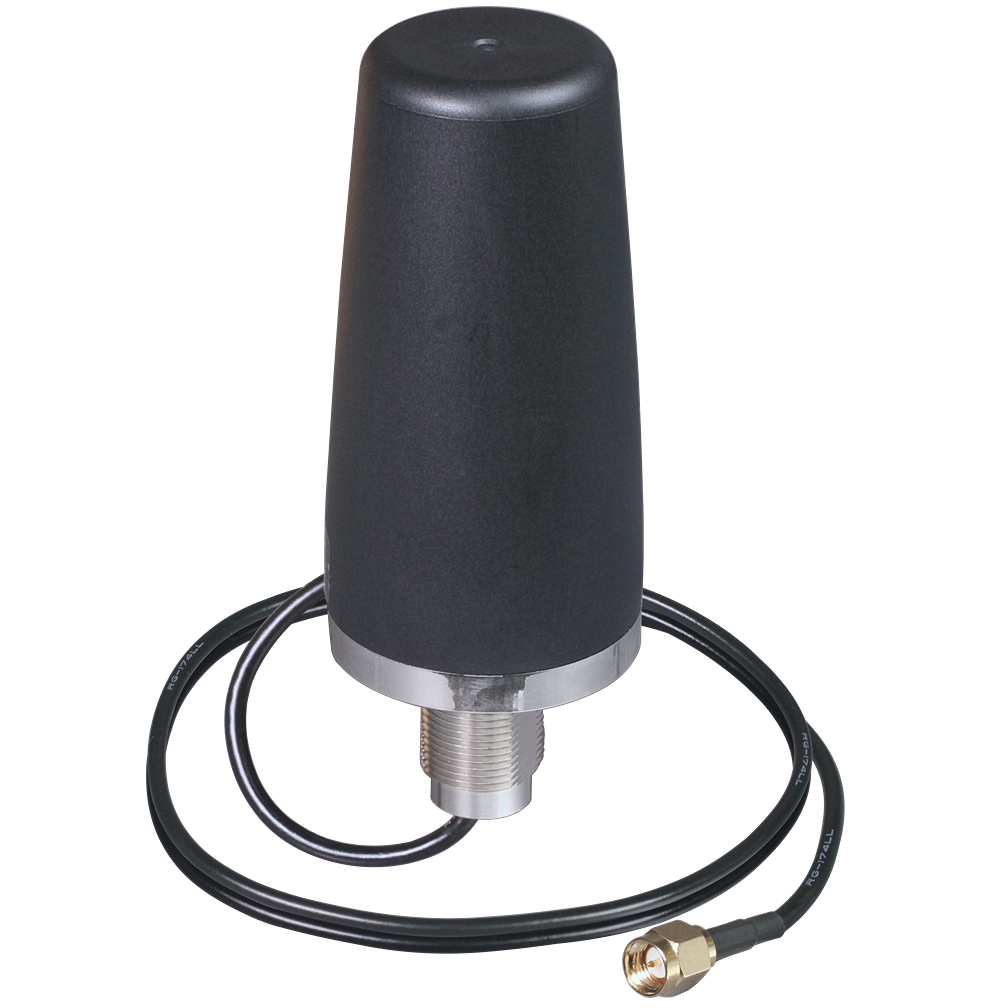

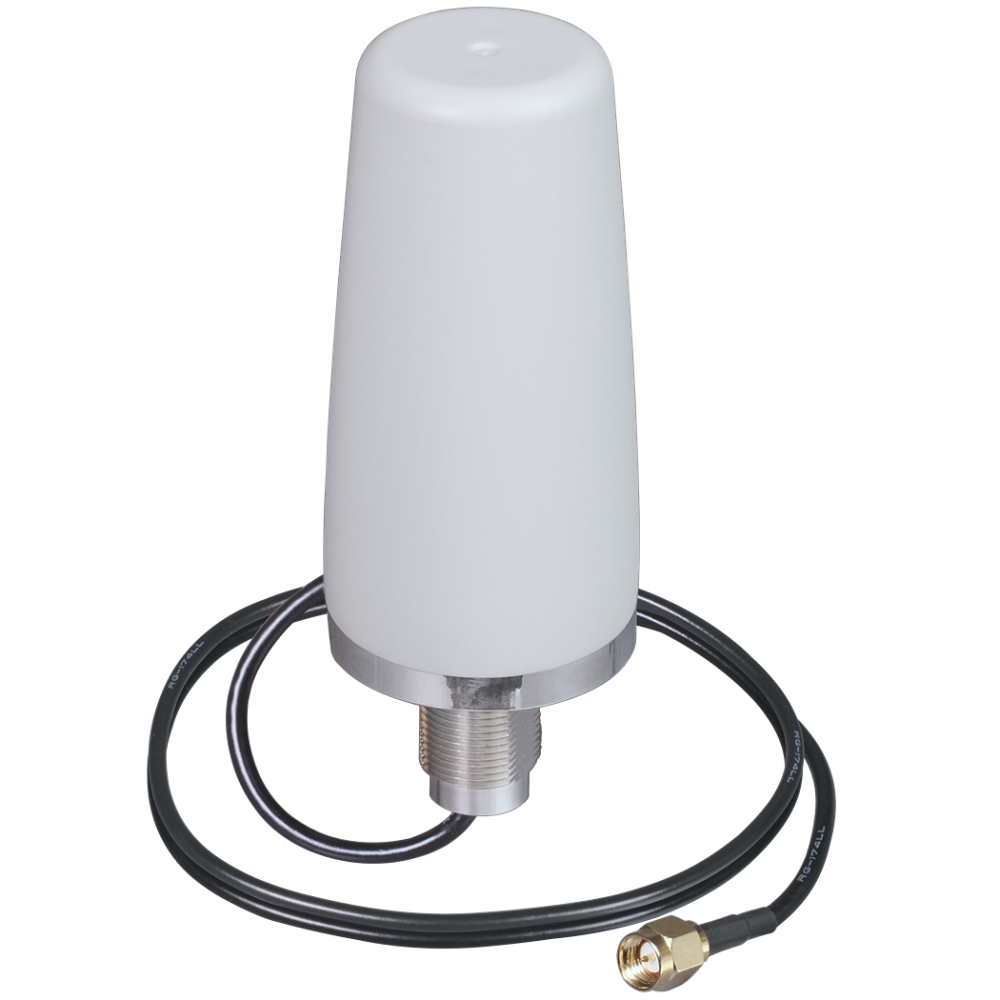

The AC17101 compact dome antenna series is available in two colors, black and white, with fine matte finish and two cable lengths, 1m and 2m. Similar-performing N-jack-terminated (AC15101-NJ series) and NMO (AC15101-NM series) compact dome antennas are also available.
Features
- Very high efficiency
- IP67/IP65 ingress protection
- IK10 impact resistance
- O-ring mounting seal
- UV resistance
- Ground plane independence
- Dimensions: 82 mm x 40 mm
- Multiple cable options: 1m, 2m
Applications
- 4 GHz ISM
-
- Bluetooth
- BLE
- WiFi
- ZigBee
- IEEE 802.15.4
- IEEE 802.11b
- Internet of Things (IoT) devices
Ordering Information
Part Number
Description
Buy

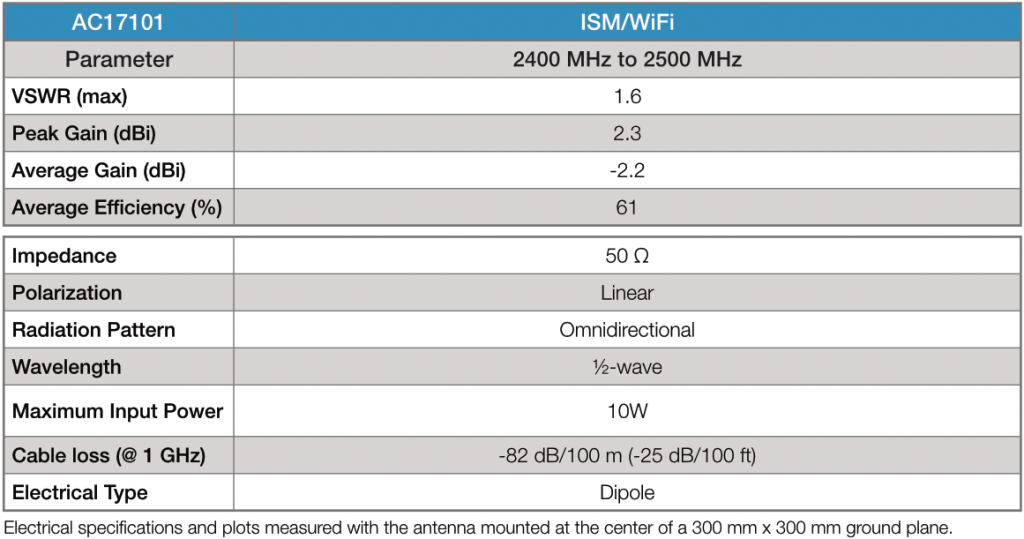

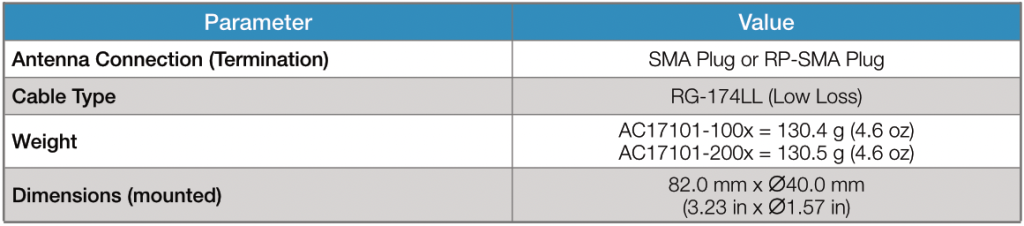

Specifications and Additional Information
