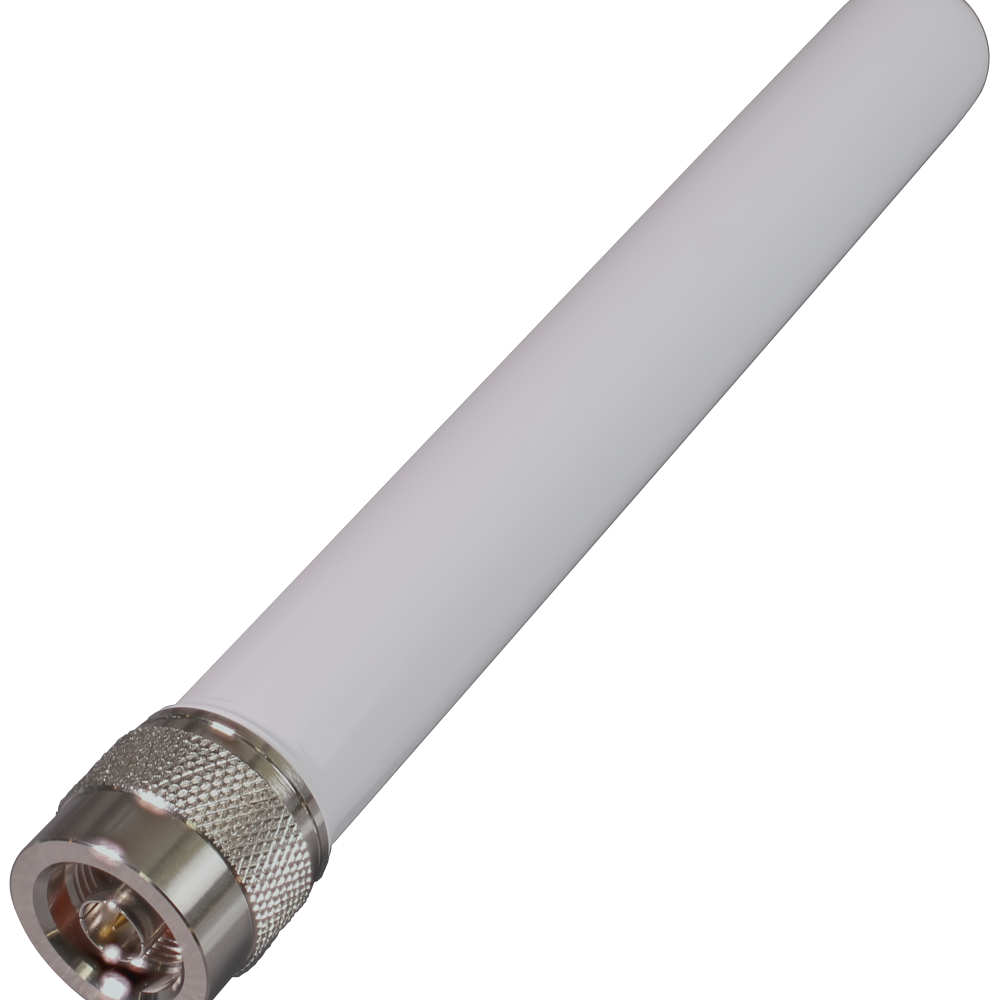

LPWA 868/915 MHz External N-Connector Baton-Style Antenna
AC66001-NPW
The AC66001-NPW is a robust outdoor antenna for LoRaWAN®, Wi-Fi HaLow™, IEEE 802.14.5 ZigBee®, and other sub-1 GHz industrial, scientific, and medical (ISM) applications. 180 mm long with N-plug connector termination, the AC66001-NPW is built to operate in solutions requiring a robust, high-performance antenna. Supporting IP67 ingress protection and an ASA ultraviolet resistant baton-style radome, the AC66001-NPW does just that for low-power wide-area network applications in the 863 to 870 MHz and 902 to 928 MHz (as well as 930 MHz) bands.
Categories: Connector Mount, External, LPWA/Sub-1 GHz ISM, Terminal Mount
Tags: Baton, Dipole, Dome, Ground Plane Independent, IP67, LoRaWAN, N Connector, Omnidirectional, Plug (Male), Whip, White, WiFi HaLow
Features
- Performance at 863 MHz to 870 MHz
- VSWR: 1.8
- Peak Gain: 2.8 dBi
- Efficiency: 81%
- Performance at 902 MHz to 928 MHz
- VSWR: 1.6
- Peak Gain: 7.6 dBi
- Efficiency: 96%
- IP67 ingress protection
- UV resistance
- N Plug connector
- Excellent ground plane and free space performance
Applications
- LoRaWAN®
- Wi-Fi HaLow™
- IEEE 802.15.4
- ZigBee®
- Sub-1 GHz ISM
- 868 MHz
- 915 MHz
- Gateways, aggregators, network hubs
- Asset Management
Ordering Information
Part Number
Description
Buy
Specifications and Additional Information
Electrical Specifications
Mechanical Specifications
