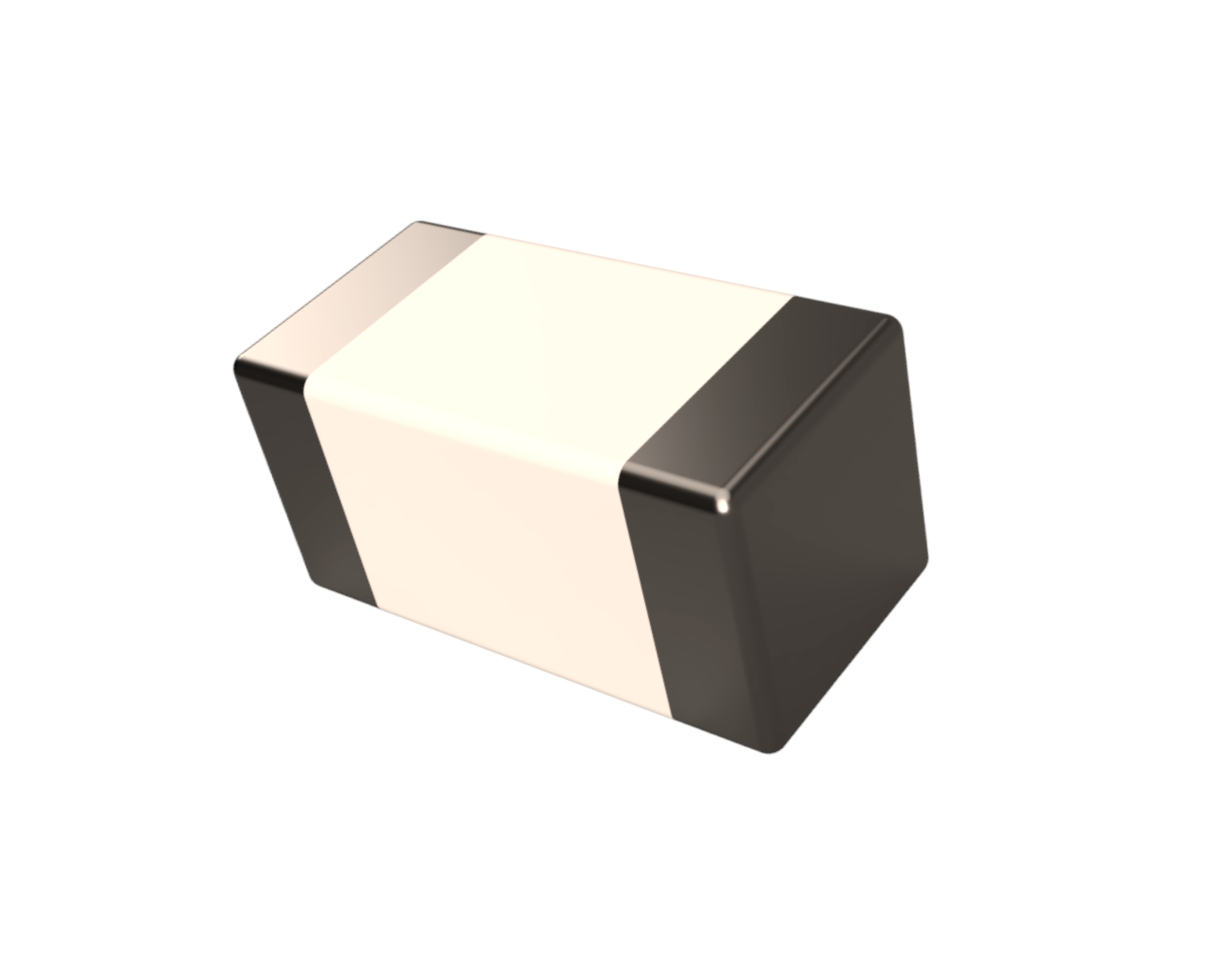

2.4GHz BT/ISM/Wi-Fi SMD Ceramic Chip Antenna
AC10242-01
The AC10242-01 is a compact high efficiency 2400-2500 MHz SMD ceramic antenna optimized for small devices and wearable applications.
The antenna has been designed to support a wide variety of WLAN/Bluetooth and ISM applications: Sensors and Wearables, Asset Tracking, Connected Health (Patient Monitoring), Smart Meters, OBDII, Tablets and Handheld Devices.
Categories: 2.4 GHz ISM, Embedded/Internal, SMD/Surface Mount, Wi-Fi / Bluetooth
Tags: 1.6×0.8×0.8mm, BLE, Bluetooth, Ceramic, Chip, IEEE 802.15.4, ISM, Linear Polarization, Omnidirectional, Passive, Short-Edge Fit, Solder, ZigBee
Features
- Compact high efficiency antenna
- Low profile (< 0.8mm) SMD component for ease of integration
- Surface mount device suitable for automated assembly (SMT process)
- Supplied on tape & reel
- Clean resonance with no unwanted out of band response.
- Ideal for smaller wearable designs
- RoHS and REACH compliant
