WiFi External Compact Dome Antenna
The AC15001 series NMO-connector dome antennas provide robust compact, outdoor, omnidirectional WiFi antenna solutions for all WiFi applications including WiFi 6 and WiFi 7. Each antenna supports IP67 and IP65 ingress protection as well as IK-10 impact resistance, all under an attractive, UV-resistant, dome. The 82mm x 40mm mounted size combines excellent antenna performance with a compact low-profile that fits in many applications from mobile/vehicular roof-mount to fixed vending machine use, and supports use on both metal enclosures or in free space including non-metallic enclosures.

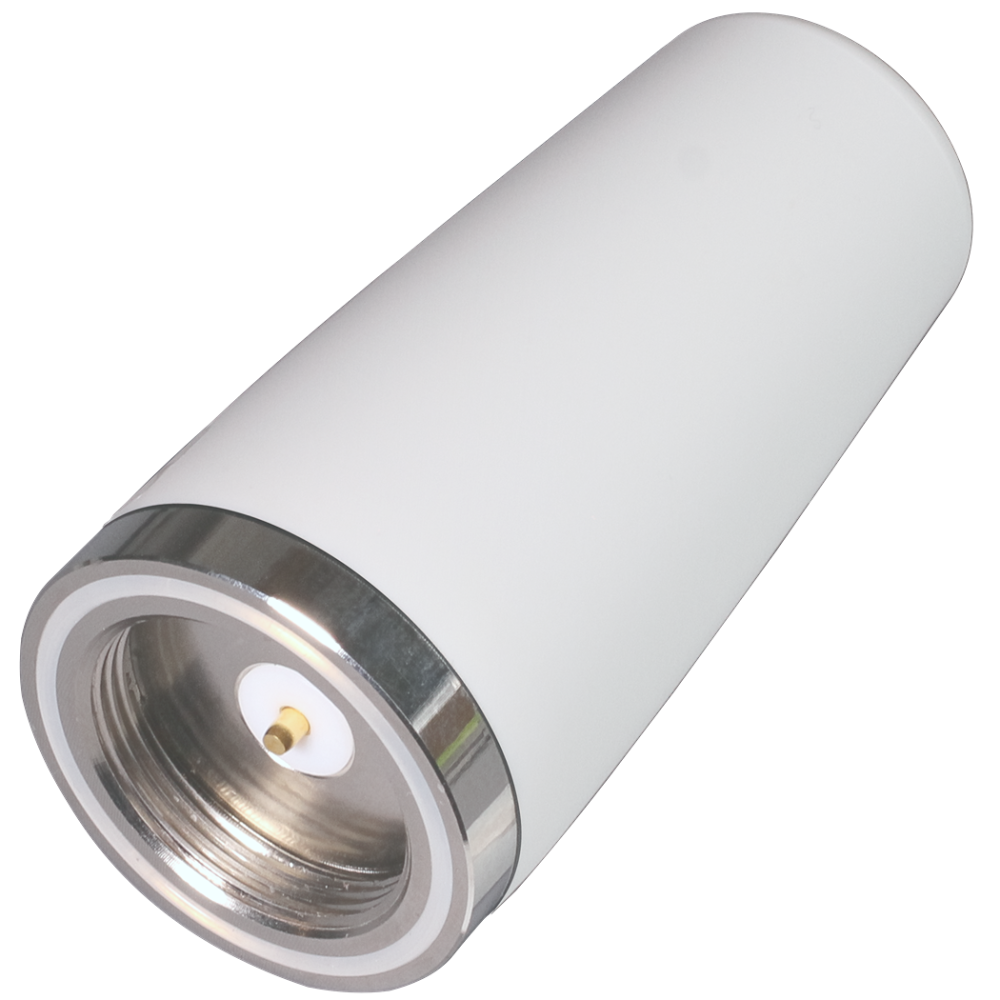

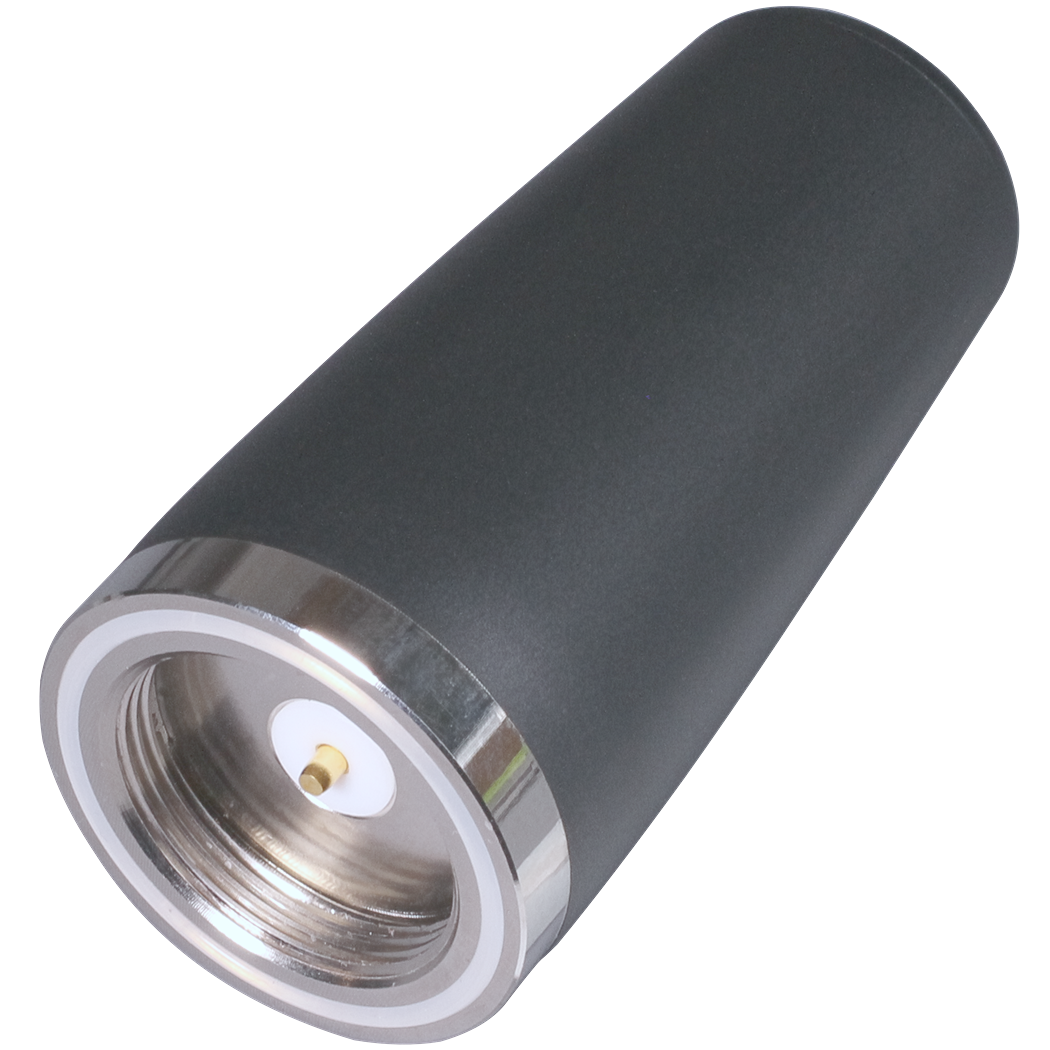

The AC15001-NM NMO compact dome antennas are available in two colors, black and white, with fine matte finish. Similar-performing N-jack-terminated (AC15001-NJ) and cabled (AC17001) compact dome antennas are also available.
Features
- Very high efficiency
- IP67/IP65 ingress protection
- IK10 impact resistance
- O-ring mounting seal
- UV resistance
- Salt spray resistance
- Ground plane independent
- Dimensions: 82 mm x 40 mm
- NMO Connector
Applications
- WiFi/WLAN Coverage
- WiFi 7 (802.11be)
- WiFi 6E (802.11ax)
- WiFi 6 (802.11ax)
- WiFi 5 (802.11ac)
- WiFi 4 (802.11n)
- IEEE 802.11b/g
- 4 GHz ISM applications
- Bluetooth®
- ZigBee®
- U-NII bands 1-8
- Internet of Things (IoT) devices
- WLAN Gateways/Routers
- Customer Premise Equipment (CPE)
- Fixed wireless
- Outdoor CPE
- Automotive/vehicular/OHV
Ordering Information
Part Number
Description
Buy

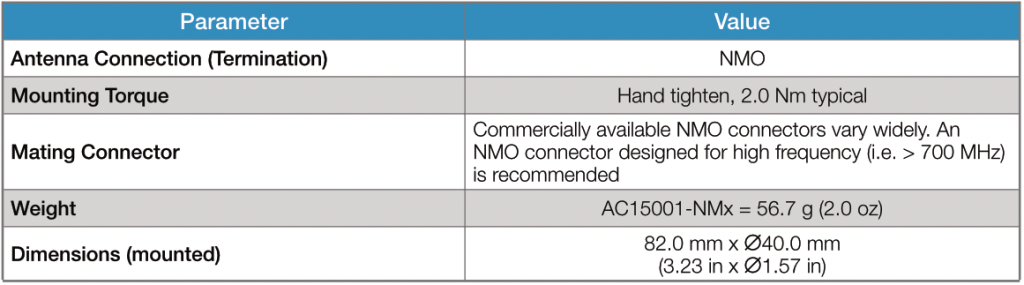

Specifications and Additional Information
