2.4 GHz External Compact Dome Antenna

The AC15101-NJ series N-connector dome antennas provide robust compact, outdoor, omnidirectional cellular antenna solutions for 2.4 GHz ISM applications including Bluetooth®, BLE, WiFi and ZigBee®. Each antenna supports IP67 and IP65 ingress protection as well as IK-10 impact resistance, all under an attractive, UV-resistant, dome. The 82 mm x 40mm mounted size combines excellent antenna performance with a compact low-profile that fits in many applications from mobile/vehicular roof-mount to fixed vending machine use, and supports use on both metal enclosures or in free space including non-metallic enclosures.

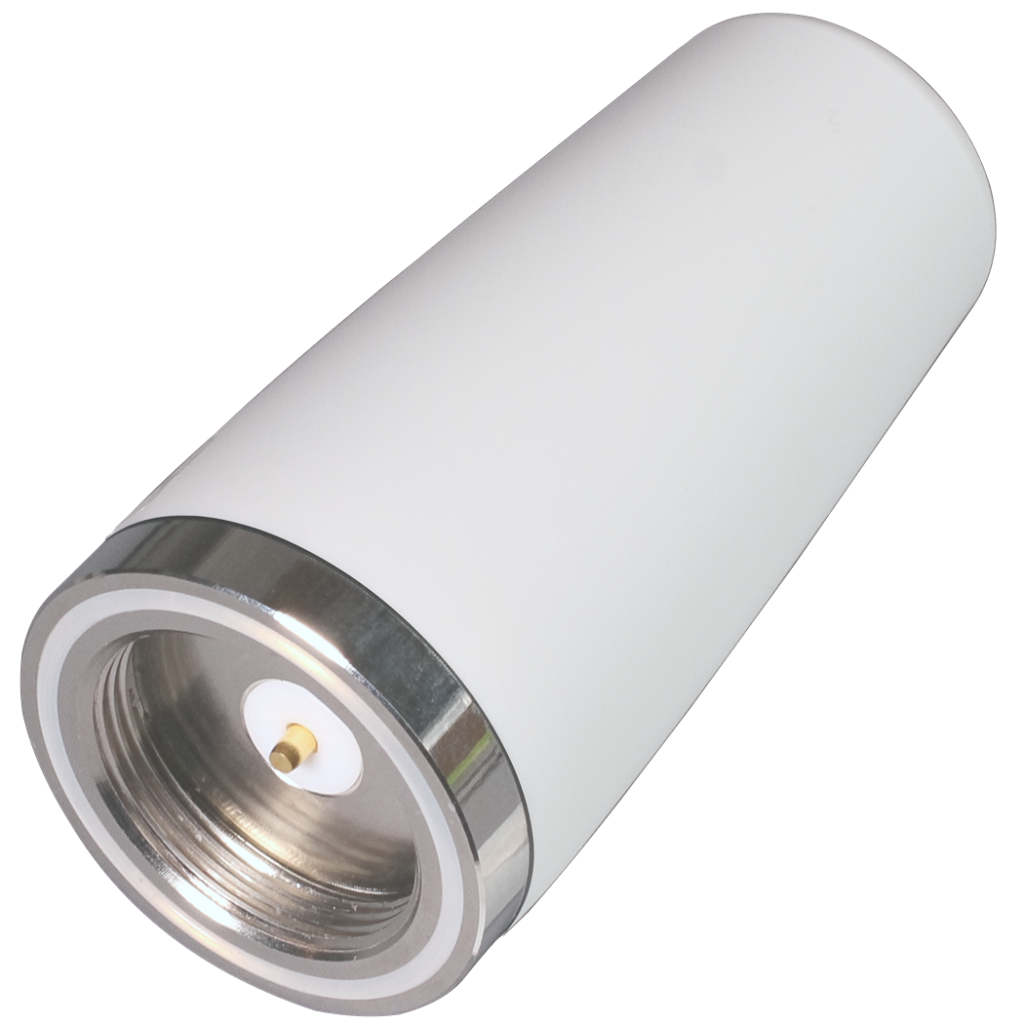

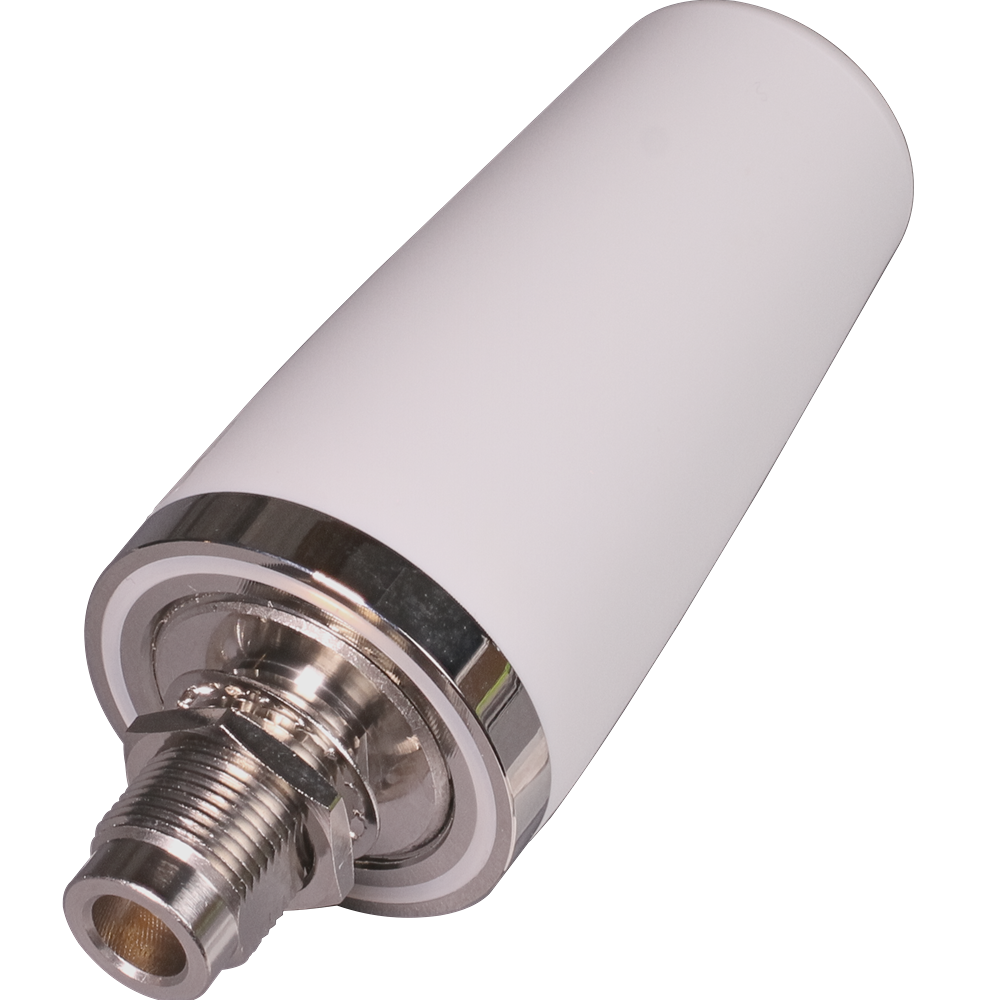

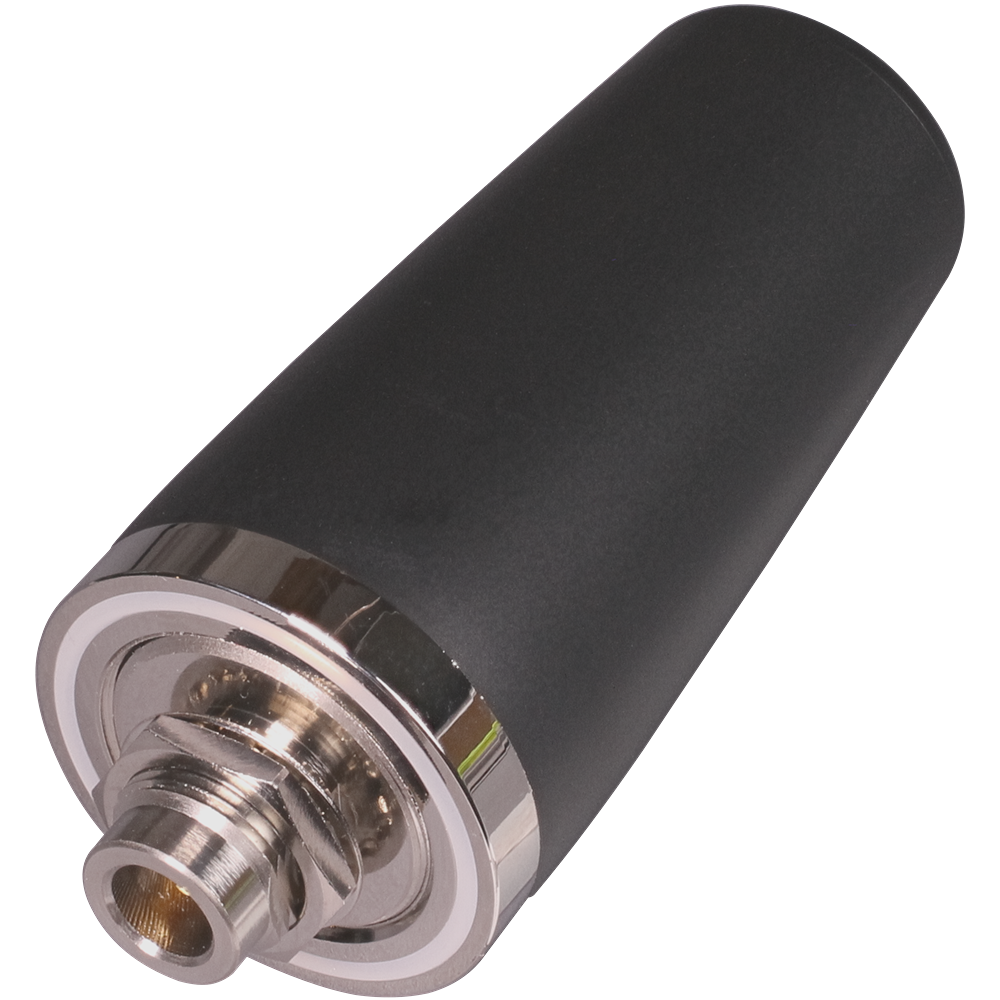

The AC15101-NJ compact dome antenna series is available in two colors, black and white, with fine matte finish, and two termination options: 24mm N-connector jack, and 14mm N-connector jack for thin/limited area mounts. Similar-performing NMO-terminated (AC15101-NM series) and cabled (AC17101 series) compact dome antennas are also available.
