WiFi Indoor/Outdoor Blade Antenna
The AC16000 tilt/swivel blade antennas provide robust indoor/outdoor, omnidirectional WiFi antenna solutions for all WiFi applications including WiFi 7 as well as ISM applications including Bluetooth®, BLE and ZigBee®. The hinged base allows for fixed positioning of the antenna at 0 degrees (straight), 45 degrees and 90 degrees (right angle) to support use in many configurations from single-antenna (SISO) and MIMO IoT applications. The swivel connector allows for easy installation and firm positioning for optimal performance.
The 152 mm long (straight) by 25 mm max width provides appropriate size for performance on both metal enclosures or in free space including non-metallic enclosures while not being so large as to interfere with the deployment or dominating equipment aesthetics. Additionally, beyond the capability of most blade antennas, AC16000 blade antennas support IP67 and IP65 ingress protection and UV-resistant materials for outdoor applications.

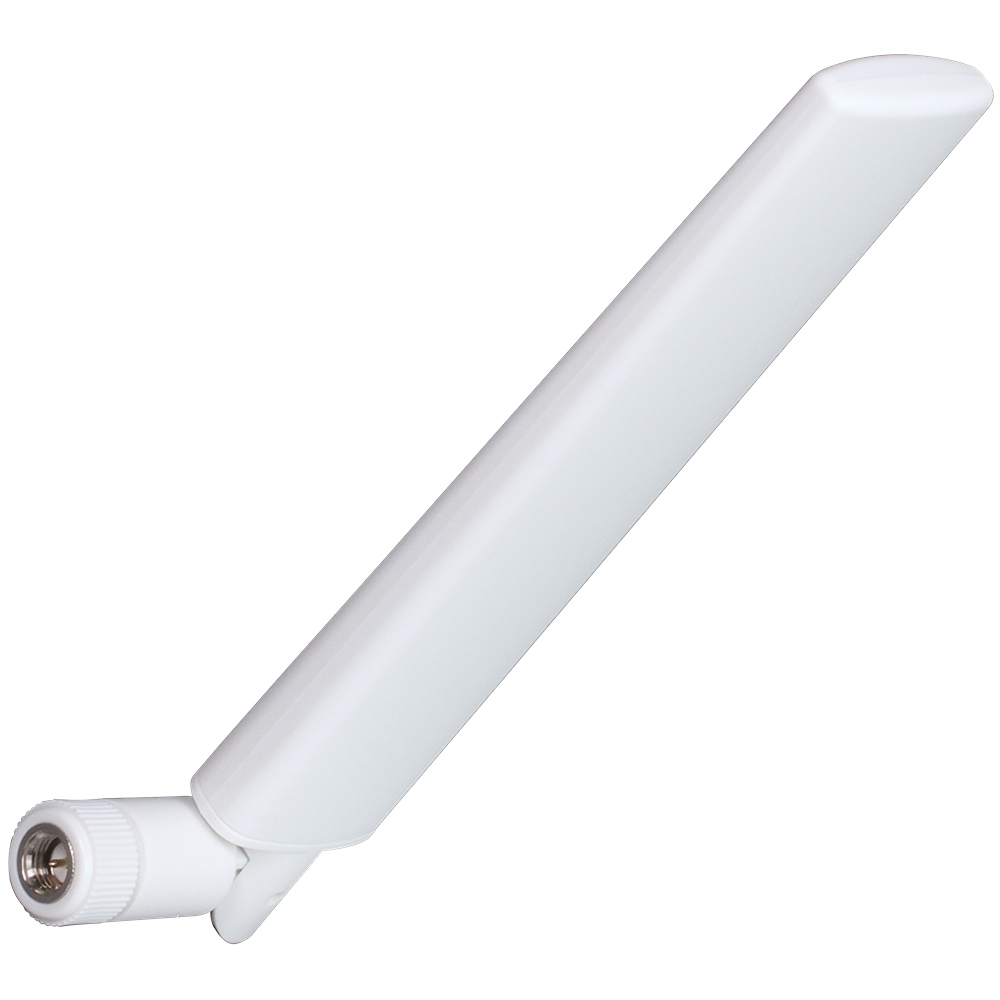

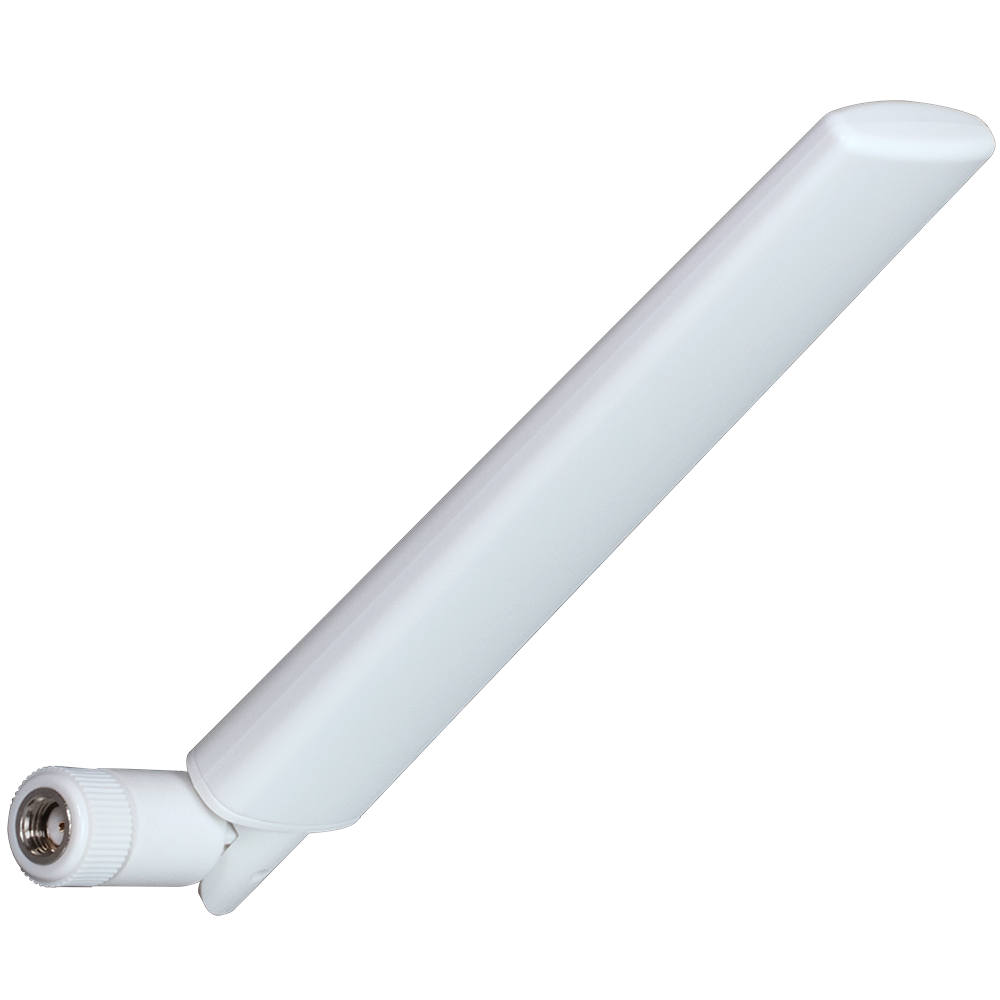

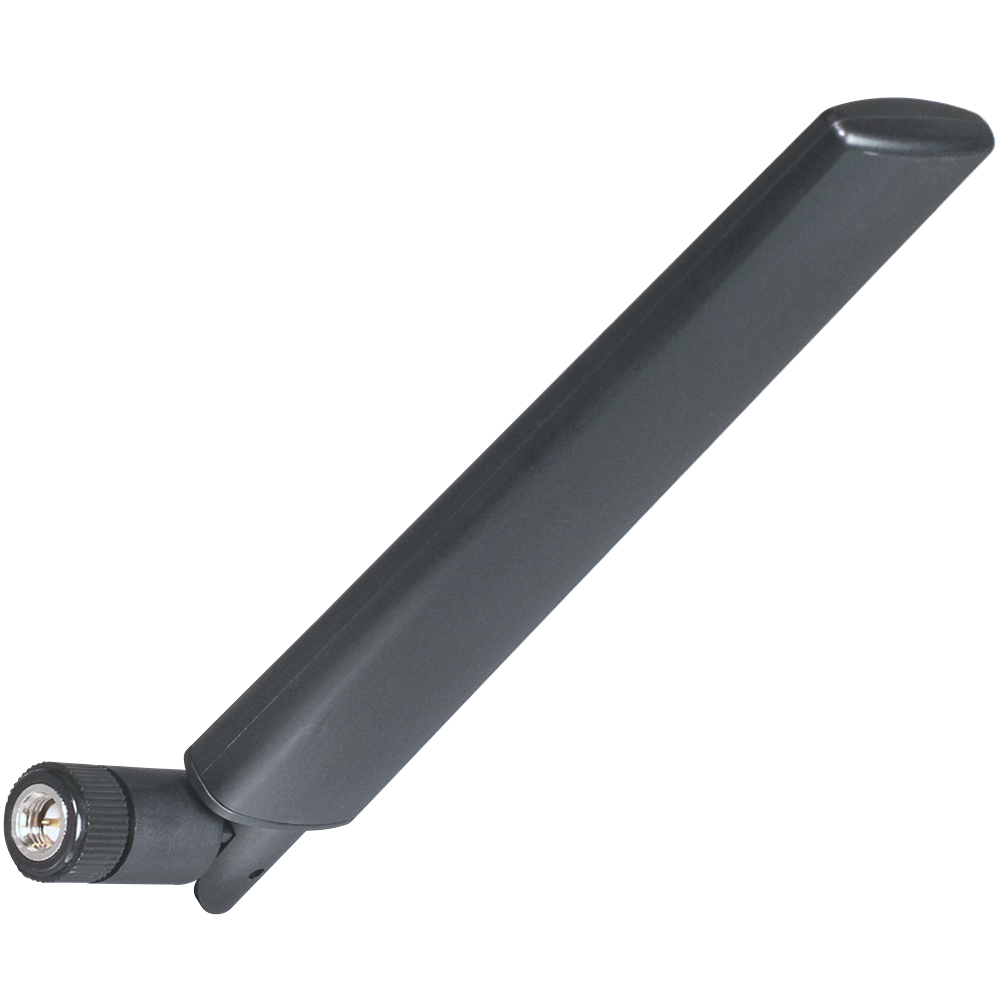

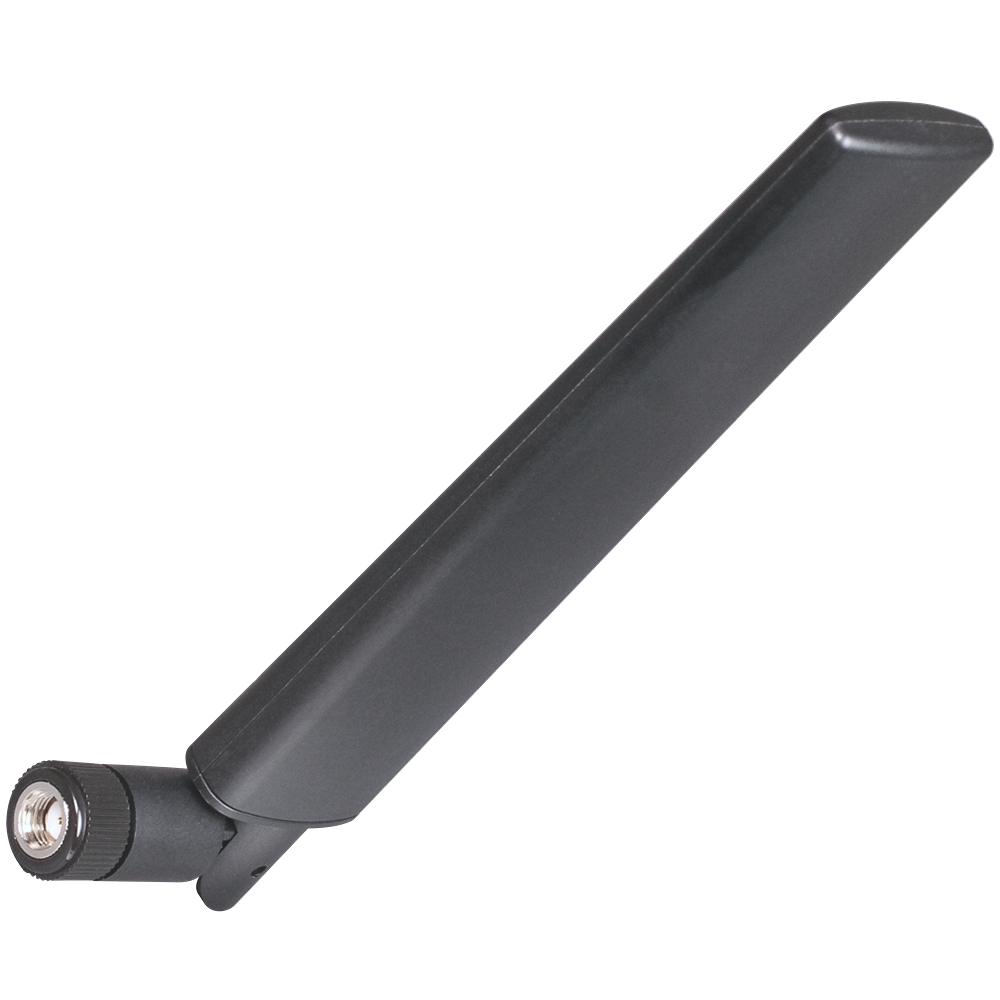

The AC16000 blade antennas are available in black and white, with fine matte finish, and SMA or reverse-polarity SMA (RPSMA) connection.
Features
- Very high efficiency
- IP67/IP65 ingress protection
- UV resistance
- Dimensions: 151.6 mm x 25mm

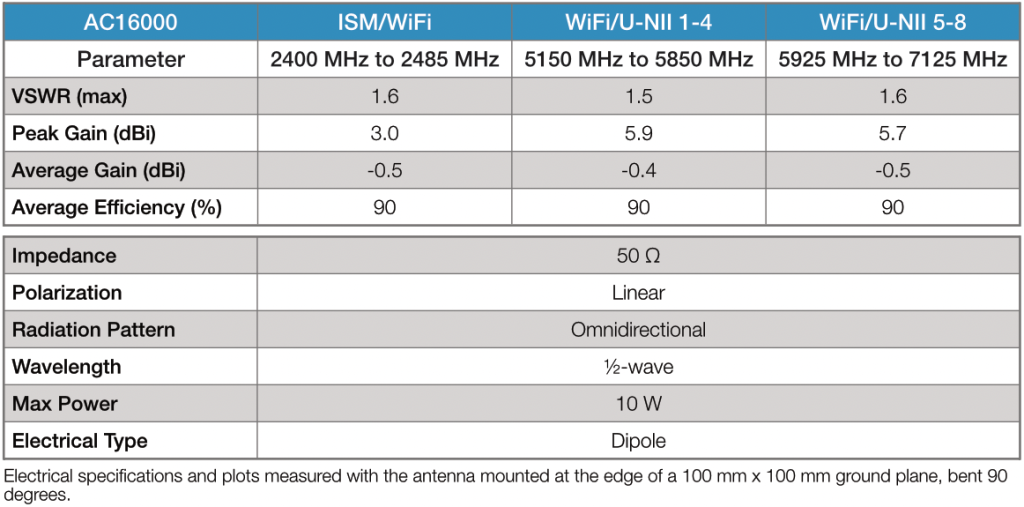

- Performance at 2.4GHz to 2.485GHz
- VSWR: 1.6
- Peak Gain: 3.0 dB
- Efficiency: 93%
- Performance at 5.15GHz to 5.85GHz
- VSWR: 1.5
- Peak Gain: 5.9
- Efficiency: 94%
- Performance at 5.93GHz to 7.13GHz
- VSWR: 1.6
- Peak Gain: 5.7
- Efficiency: 98
- SMA and RPSMA termination options
Applications
- WiFi/WLAN Coverage
- WiFi 7 (802.11be)
- WiFi 6E (802.11ax)
- WiFi 6 (802.11ax)
- WiFi 5 (802.11ac)
- WiFi 4 (802.11n)
- IEEE 802.11b/g
- 2.4 GHz ISM applications
- Bluetooth®
- ZigBee®
- U-NII bands 1-8
- Internet of Things (IoT) devices
- WLAN Gateways/Routers
- Customer Premise Equipment (CPE)
- Fixed wireless
- Outdoor CPE
Ordering Information
Part Number
Description
Buy

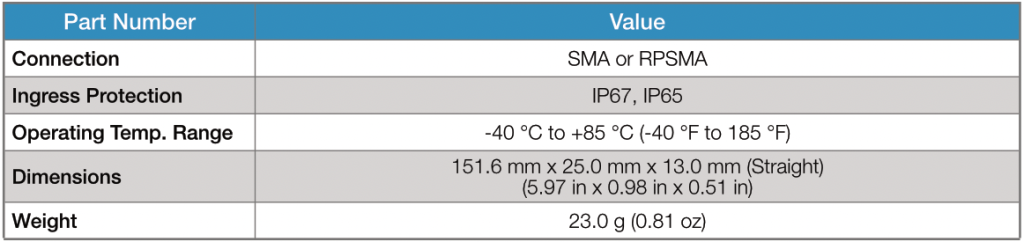

Specifications and Additional Information
