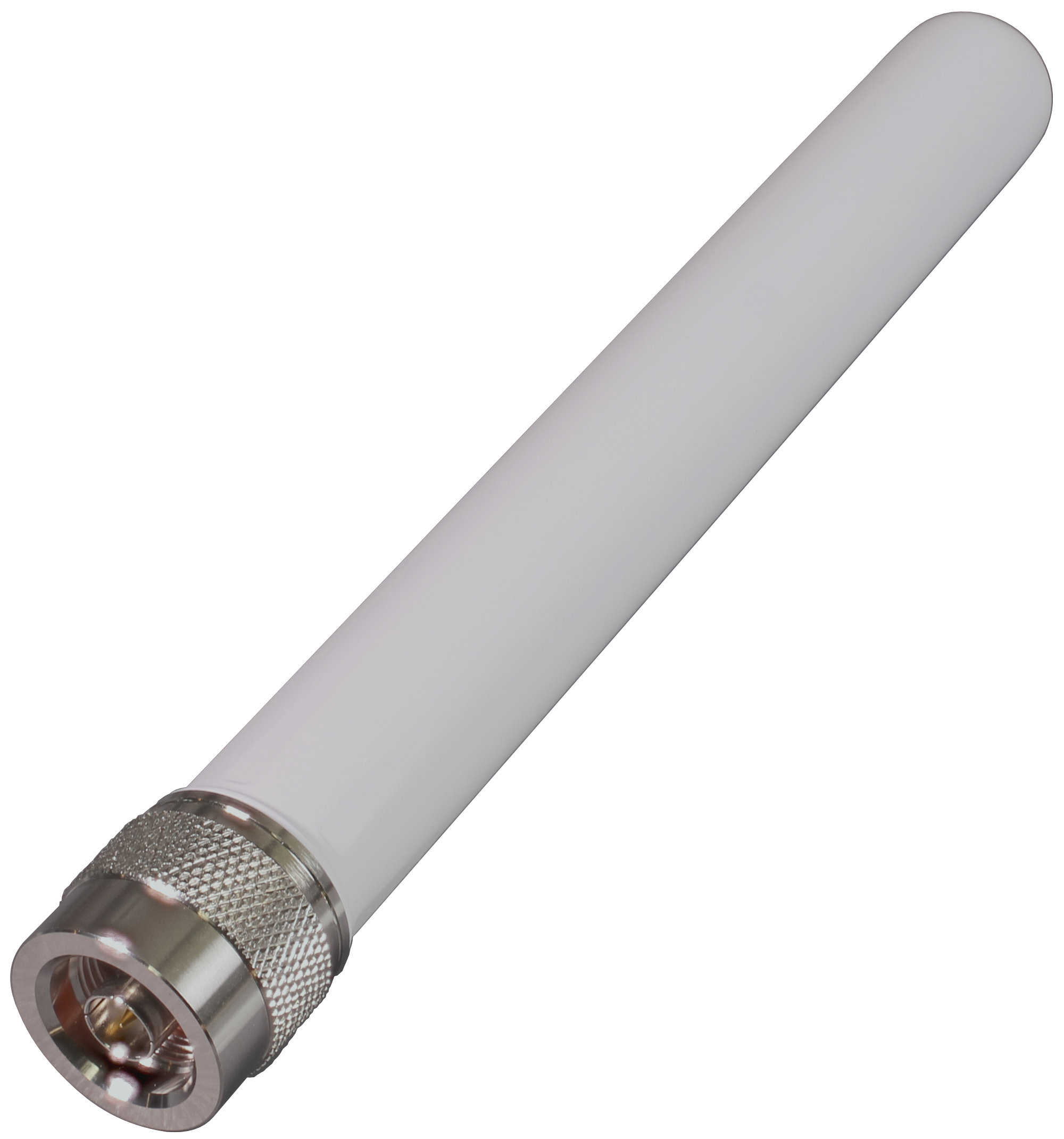

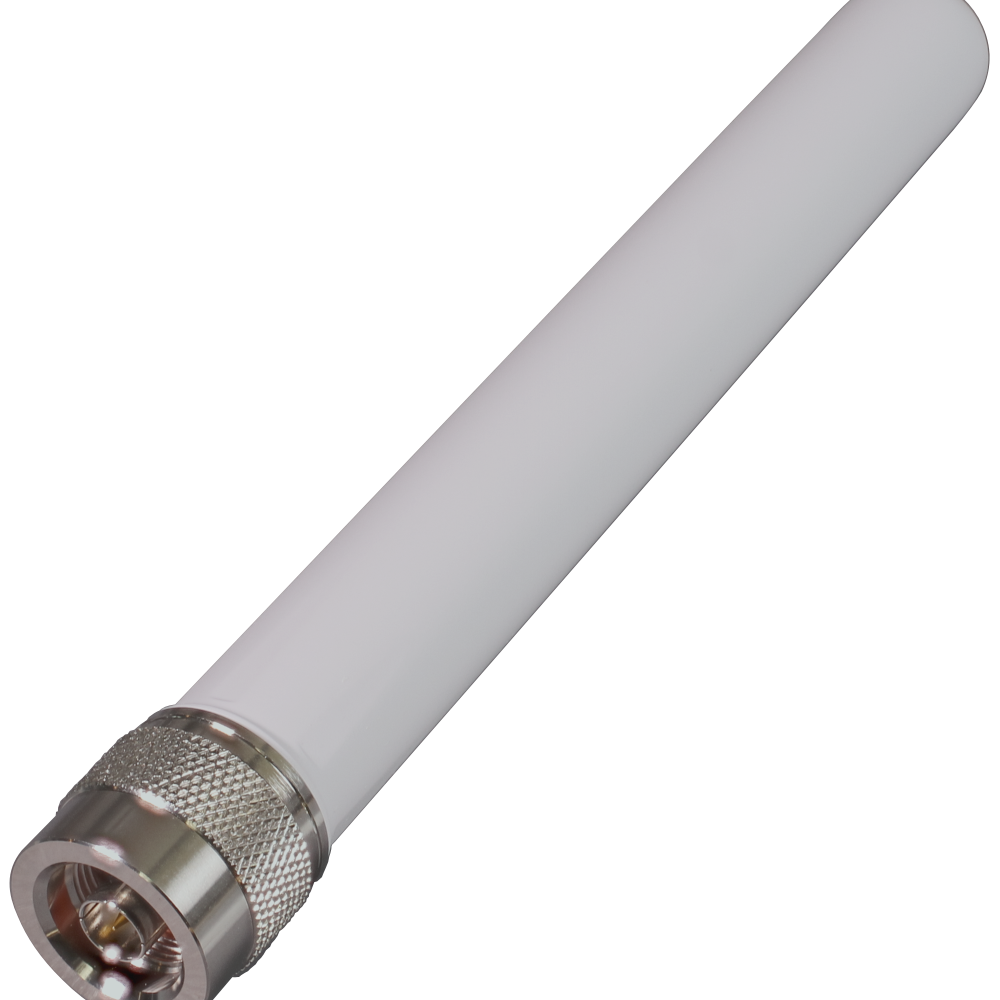

WiFi External N-Connector Baton-Style Antenna
AC16001-NPW
The AC16001-NPW is a robust outdoor antenna for applications including WiFi7, WiFi6/6E and others. 180 mm long with N-plug connector termination, the AC16001-NPW is built to operate in solutions requiring a robust, high-performance antenna. Supporting IP67 ingress protection and an ASA ultraviolet resistant baton-style radome, the AC16001-NPW does just that for WiFi applications in the 2400 to 2500 MHz and 5150 to 7125 MHz bands.
Categories: Connector Mount, External, Terminal Mount, Tri-Band WiFi, Wi-Fi / Bluetooth
Tags: 2.4 GHz Band, 5 GHz Band, 6 GHz Band, 802.11ac, 802.11ax, 802.11b, 802.11be, 802.11g, 802.11n, Baton, BLE, Bluetooth, Dipole, Dome, Ground Plane Independent, IEEE 802.15.4, IP67, ISM, N Connector, Omnidirectional, Plug (Male), Whip, Wi-Fi, WiFi 4, WiFi 5, WiFi 6, WiFi 6E, WiFi 7, WLAN, ZigBee
Features
- Performance at 2.40 GHz to 2.50 GHz
- VSWR: 1.8
- Peak Gain: 2.8 dBi
- Efficiency: 81%
- Performance at 5.150 GHz to 7.125 GHz
- VSWR: 1.6
- Peak Gain: 7.6 dBi
- Efficiency: 96%
- IP67 ingress protection
- UV resistance
- N Plug connector
- Excellent ground plane and free space performance
Applications
- WiFi/WLAN Coverage
- WiFi 7 (802.11be)
- WiFi 6E (802.11ax)
- WiFi 6 (802.11ax)
- WiFi 5 (802.11ac)
- WiFi 4 (802.11n)
- 11b/g
- 4 GHz ISM applications
- Bluetooth®
- ZigBee®
- U-NII bands 1-8
- Internet of Things (IoT) devices
- WLAN Gateways/Routers
- Fixed Wireless Customer Premise Equipment (CPE)
Ordering Information
Part Number
Description
Buy
Specifications and Additional Information

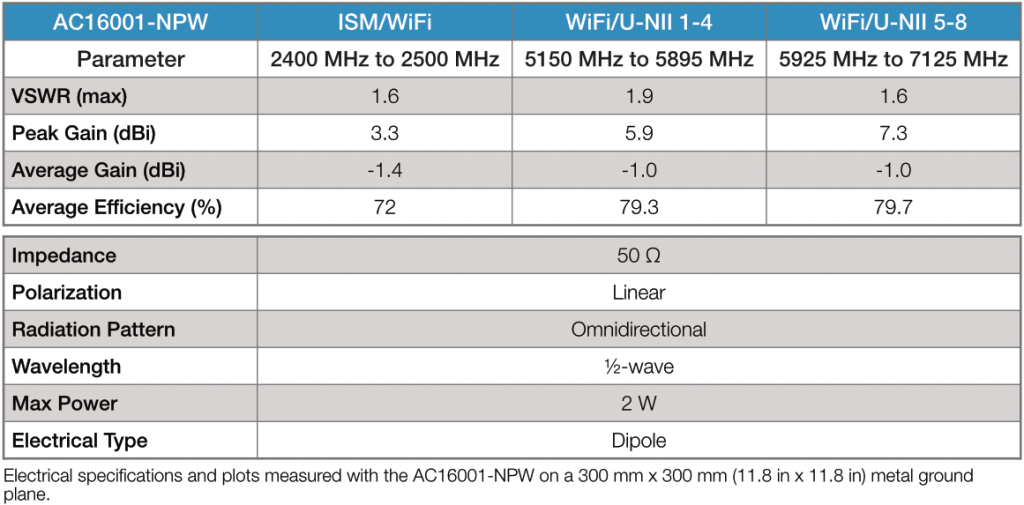

Electrical Specifications

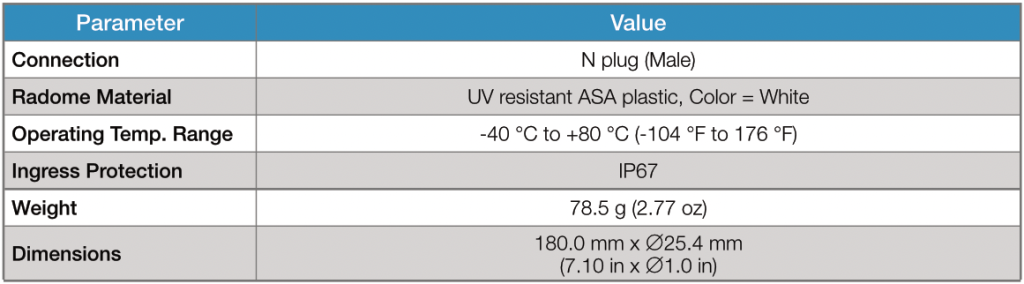

Mechanical Specifications
