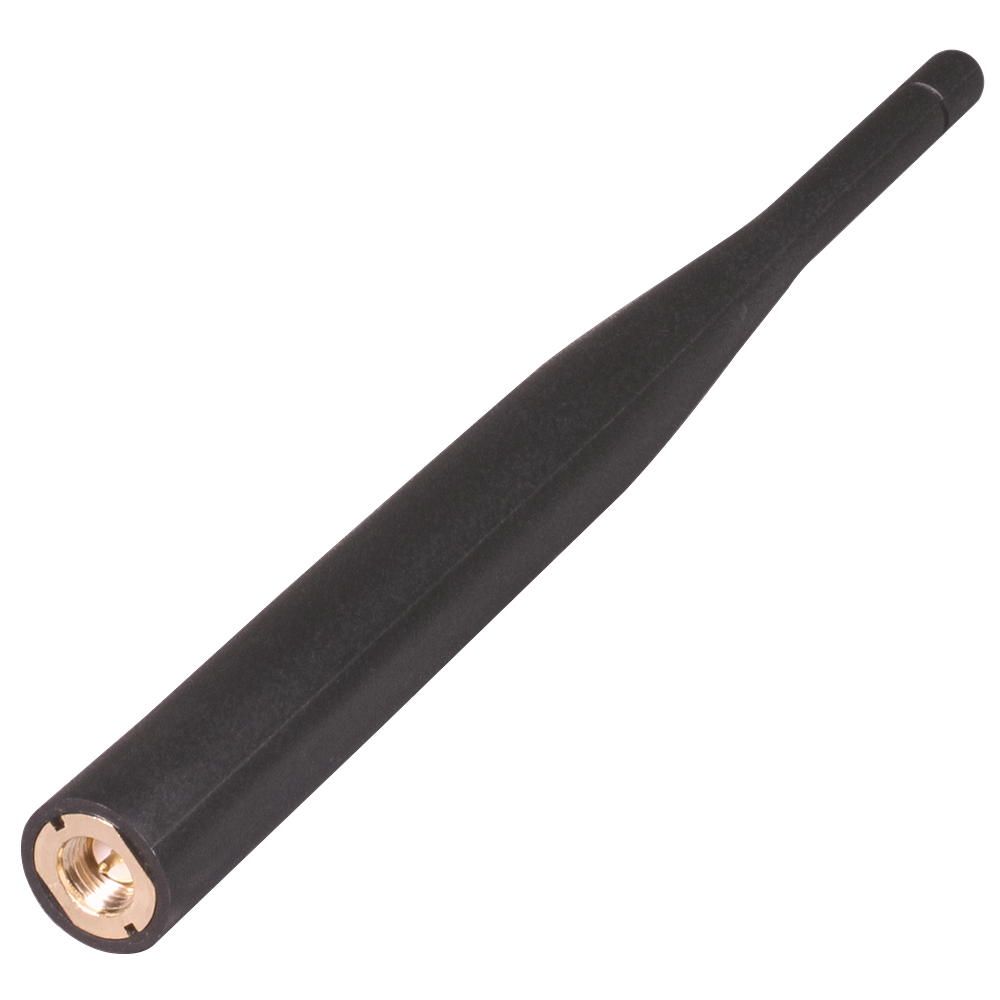

2.4 GHz 154 mm Straight Whip Antenna
AC16501
The Antenna Company AC16501 straight whip antennas provide a compact omnidirectional 2.4 GHz antenna solution for all ISM applications including Bluetooth®, BLE and ZigBee®.
The 154 mm long straight whip (“rubber duck”) antenna performs adjacent to a ground plane or in free space including non-metallic enclosures while not being so large as to interfere with the deployment, or dominating equipment aesthetics. Additionally, the AC16501 supports IP65 ingress protection for wet and dusty applications.
The AC16501 blade antennas are available with SMA or reverse-polarity SMA (RPSMA) plug (male) connector.
Categories: 2.4 GHz ISM, Connector Mount, External, Terminal Mount
Tags: BLE, Bluetooth, IEEE 802.15.4, IP65, ISM, Linear Polarity, Monopole, Omnidirectional, Plug, RP-SMA, SMA, Straight, Whip, ZigBee
Features
- Very high efficiency
- IP65 ingress protection
- Dimensions: 154.0 mm x 13.0 mm
- Performance at 2.4 GHz to 2.485 GHz
- VSWR: 1.3
- Peak Gain: 3.0
- Efficiency: 84
- SMA and RP-SMA termination options
Applications
- 2.4 GHz ISM applications
- Bluetooth®
- Bluetooth Low Energy (BLE)
- ZigBee®
- Wi-Sun
- Internet of Things (IoT) devices
- WLAN Gateways/Routers
Ordering Information
Part Number
Description
Buy
Specifications and Additional Information

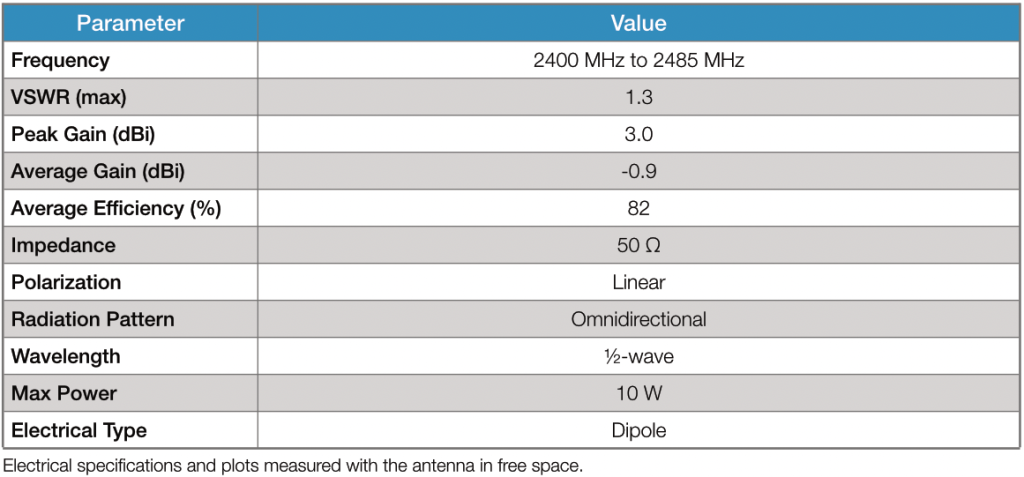

Electrical Specifications

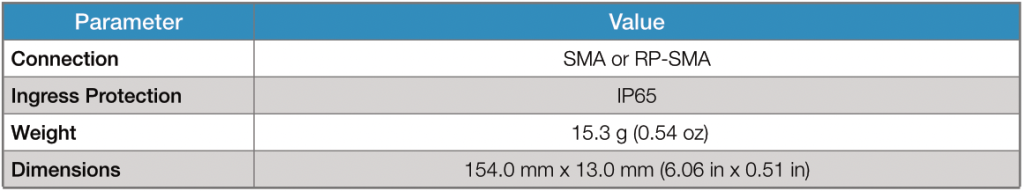

Mechanical Specifications
