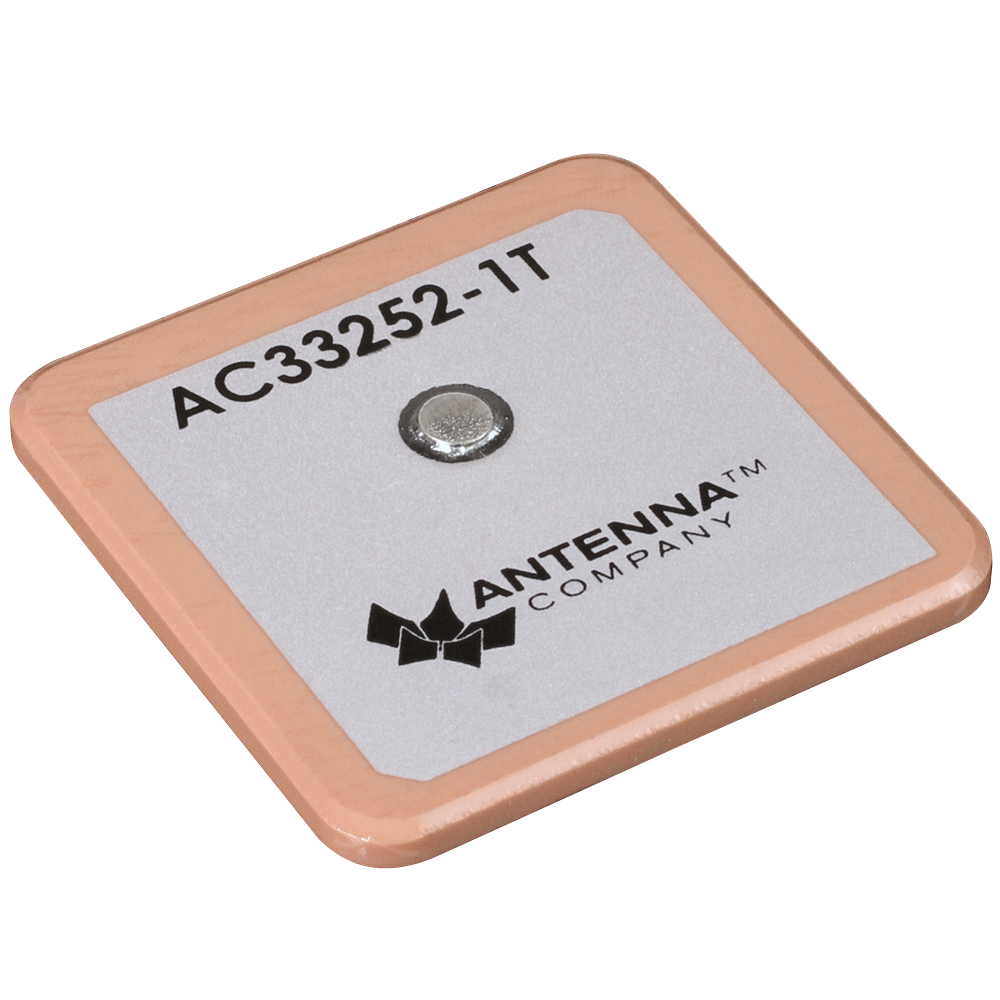

GNSS L1 Embedded Patch Antenna
The AC33252-1T is a 25 mm x 25mm GNSS ceramic patch antenna optimized for operation in the GPS L1, Galileo E1, GLONASS L1, Beidou B1-BOC and QZSS bands.
Featuring a precision-tuned ceramic resonator, the antenna provides stable right-hand circular polarization (RHCP) and a hemispherical radiation pattern for multipath suppression and fast time-to-first-fix, making it an ideal choice for asset tracking, telematics, and global navigation satellite systems (GNSS).
The AC33252-1T offers an extended temperature range to +105 °C for compliance to automotive standard AEC-Q200 Grade 2. Its mechanically robust pin-type design, with self-adhesive backing ensures reliable and repeatable electrical contact in demanding embedded positioning and timing applications.
Features
- Performance at 1575.42MHz
- VSWR: 1.2
- Peak Gain: 3.5 dBi
- Efficiency: 62%
- Performance at 1.593 GHz to 1.609 GHz
- VSWR: 1.4
- Peak Gain: 3.3 dBi
- Efficiency: 63%
- 25.0 mm x 25.0 mm x 2.0 mm
- Hemispherical radiation pattern
- Right-hand circularly polarized (RHCP)
- Strong out of band rejection
- Pin termination
- Through-hole mounting with adhesive
Applications
- Global Navigation (GNSS)
- GPS L1
- Galileo E1
- GLONASS L1
- Beidou B1-BOC
- QZSS
- Timing Applications
- OBD-II Module
- Internet of Things (IoT) Applications
- Asset Tracking
- Smart Energy
- M2M Industrial
- Wearables/Healthcare
- UAV/Drones
Ordering Information
Part Number
Description
Buy

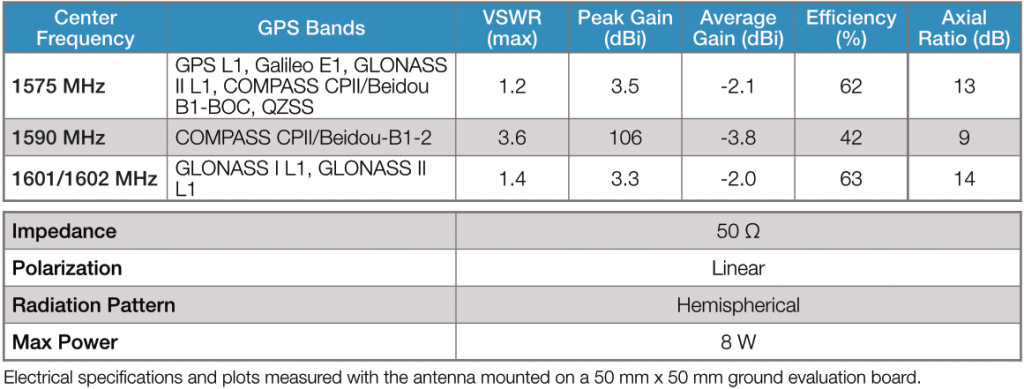

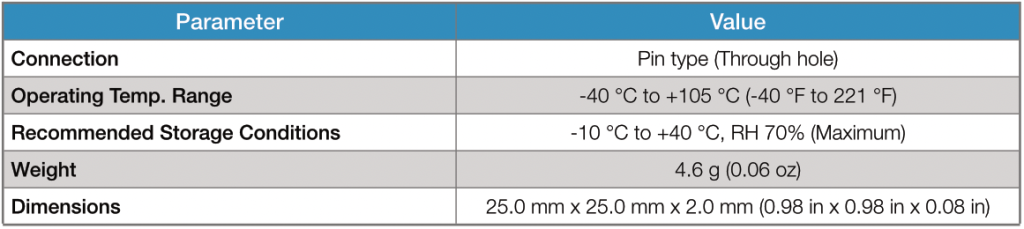

Specifications and Additional Information
