868/915 MHz Embedded Adhesive Flexible Printed Circuit (FPC) Antenna
868/915 MHz Embedded Adhesive Flexible Printed Circuit (FPC) Antenna
AC61001
The AC61001 flexible printed circuit (FPC) antenna is a low power wide area (LPWA) antenna solution for unlicensed technologies including WiFi HaLow, LoRaWAN, Sigfox and Wireless M-Bus, serving a multitude of Internet of Things (IoT) applications. The flexibility and peel-and-stick adhesive backing make the AC61001 antenna easy to mount in unique and custom enclosures.
Connection is made to the radio via a 1.13 mm coaxial cable terminated in a U.FL-type plug connector. Various cable length options are available (See Ordering Information).
Categories: Adhesive Mount, Embedded/Internal, LPWA/Sub-1 GHz ISM
Tags: 122×22 mm, FPC, FR4, Ground Plane Independent, IEEE 802.11.ah, ISM, Linear Polarization, LoRaWAN, MHF1-Type, Omnidirectional, Plug (Male), Sigfox, T-shape, U.FL-Type, WiFi HaLow
Features
- Very high efficiency
- Ground plane independent
- T-shape form factor
- 121.6 mm x 21.7 mm x 0.27 mm
- Performance at 863 MHz to 870 MHz
- VSWR: 1.3
- Peak Gain: 2.1 dBi
- Efficiency: 88%
- Performance at 902 MHz to 928 MHz
- VSWR: 1.4
- Peak Gain: 2.8 dBi
- Efficiency: 94%
- MHF1/U.FL compatible plug termination
Applications
- Unlicensed low power wide area networking (LPWAN) applications
- WiFi HaLow®
- LoRaWAN®
- Sigfox
- Wireless M-Bus
- 868 MHz and 915 MHz band applications
- Internet of Things (IoT) devices
- Gateways/Routers
Ordering Information
Part Number
Description
Buy
Specifications and Additional Information

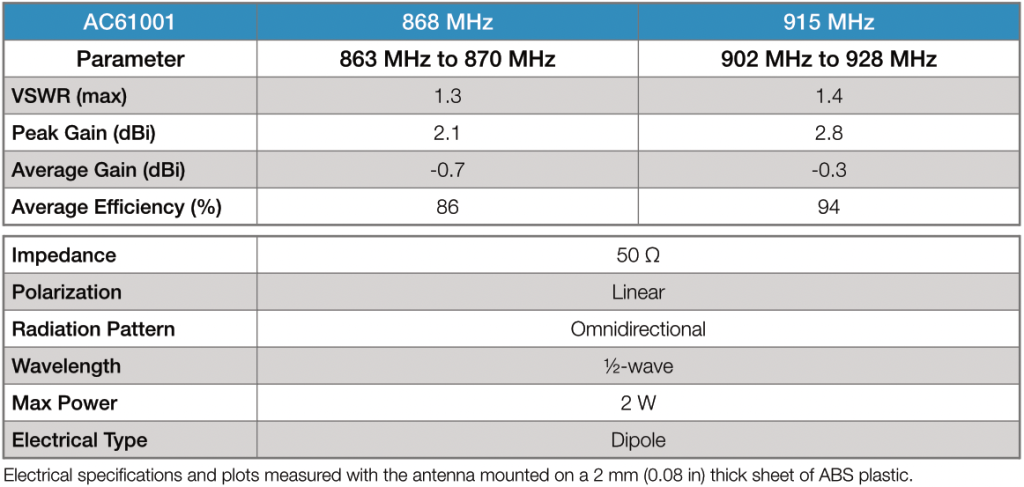

Electrical Specifications

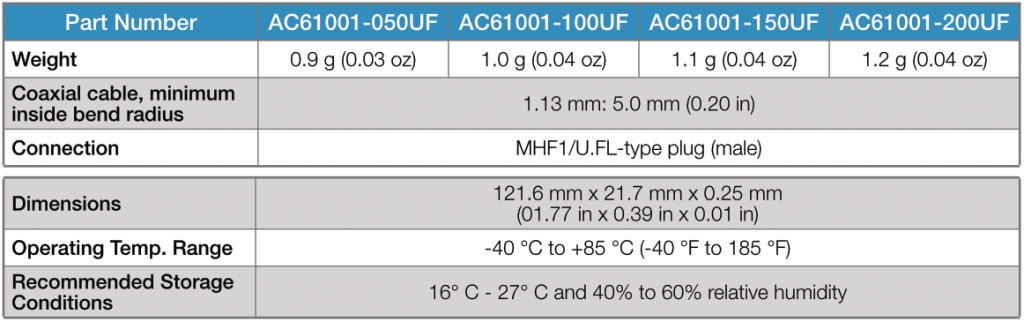

Mechanical Specifications
