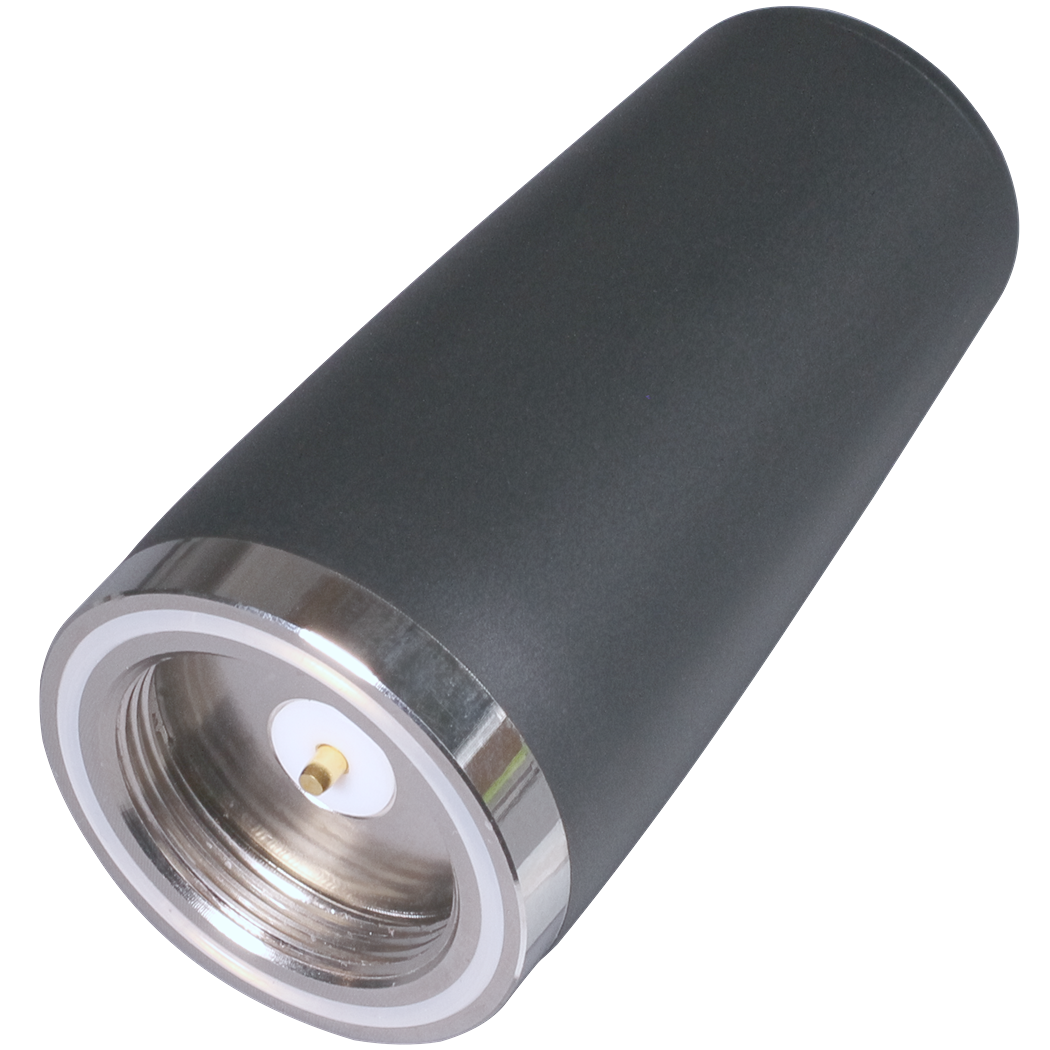

868/915 MHz External Compact Dome Antenna

The AC65001-NM NMO-connector dome antennas provide robust compact, outdoor, omnidirectional cellular antenna solutions for 868 MHz and 915 MHz ISM applications including LoRaWAN® and WiFi HaLow™. Each antenna supports IP67 and IP65 ingress protection as well as IK-10 impact resistance, all under an attractive, UV-resistant, dome. The 82 mm x 40mm mounted size combines excellent antenna performance with a compact low-profile that fits in many applications from mobile/vehicular roof-mount to fixed vending machine use, and supports use on both metal enclosures or in free space including non-metallic enclosures.

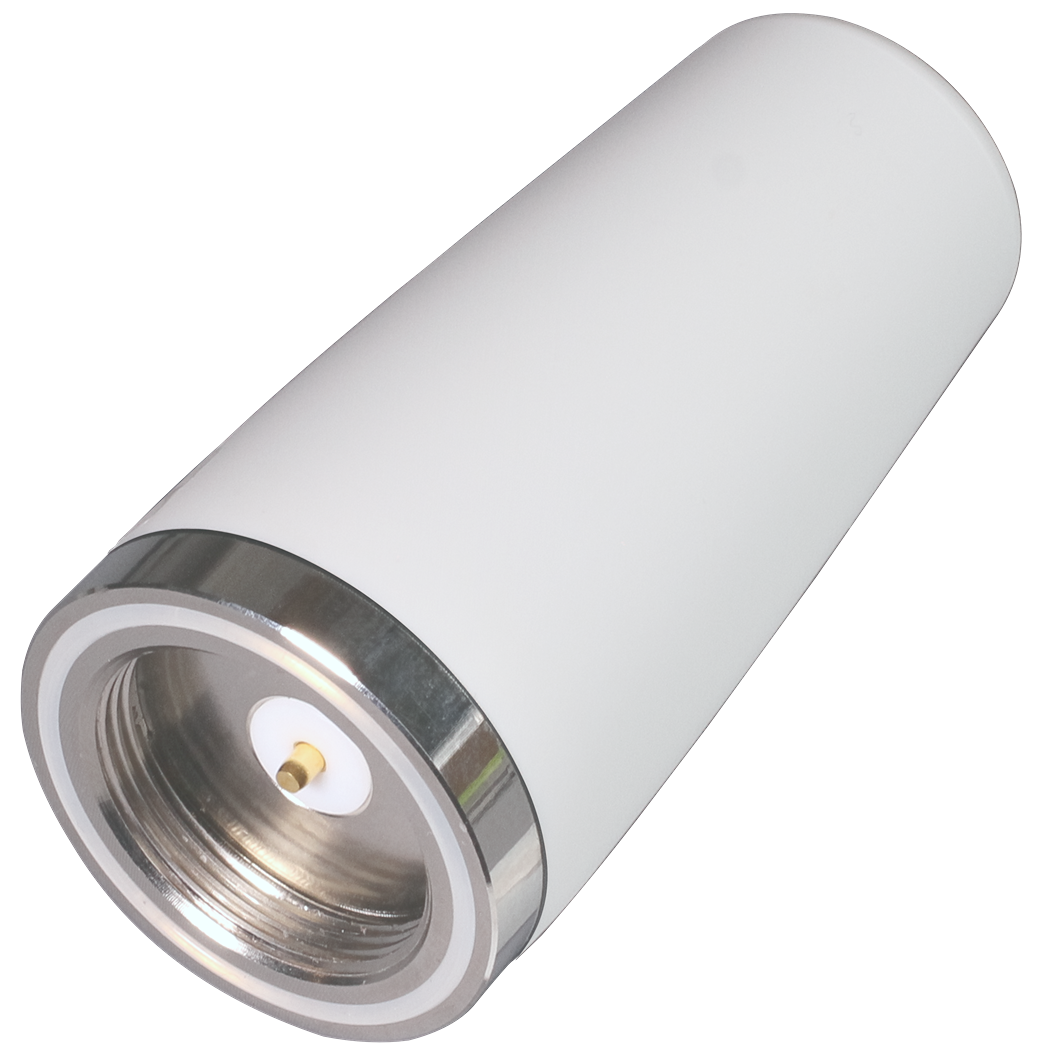

The AC65001-NM compact dome antenna series is available in two colors, black and white, with fine matte finish. Similar-performing N-jack-terminated (AC65001-NJ) and cabled (AC67001) compact dome antennas are also available.
