868/915 MHz External Compact Dome Antenna
The AC65001-NJ series N-connector dome antennas provide robust compact, outdoor, omnidirectional cellular antenna solutions for 868 MHz and 915 MHz ISM applications including LoRaWAN® and WiFi HaLow™. Each antenna supports IP67 and IP65 ingress protection as well as IK-10 impact resistance, all under an attractive, UV-resistant, dome. The 82 mm x 40mm mounted size combines excellent antenna performance with a compact low-profile that fits in many applications from mobile/vehicular roof-mount to fixed vending machine use, and supports use on both metal enclosures or in free space including non-metallic enclosures.

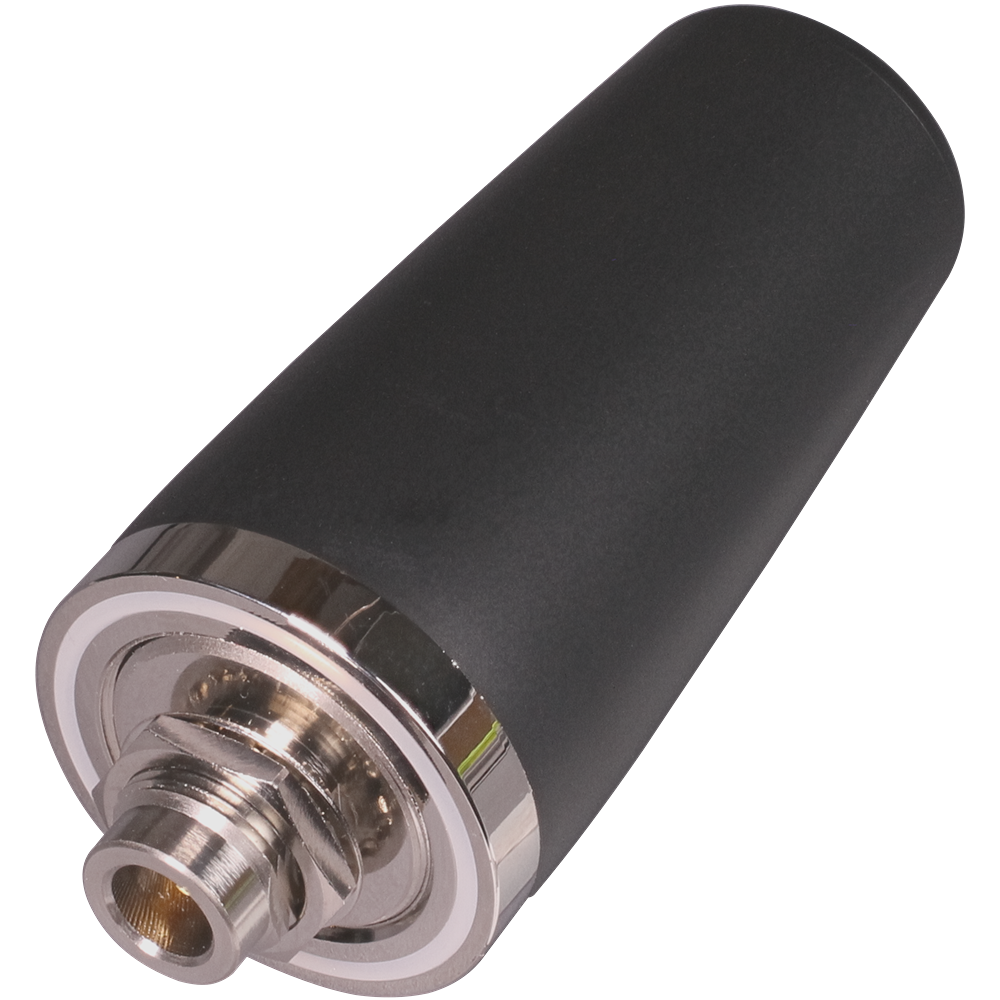

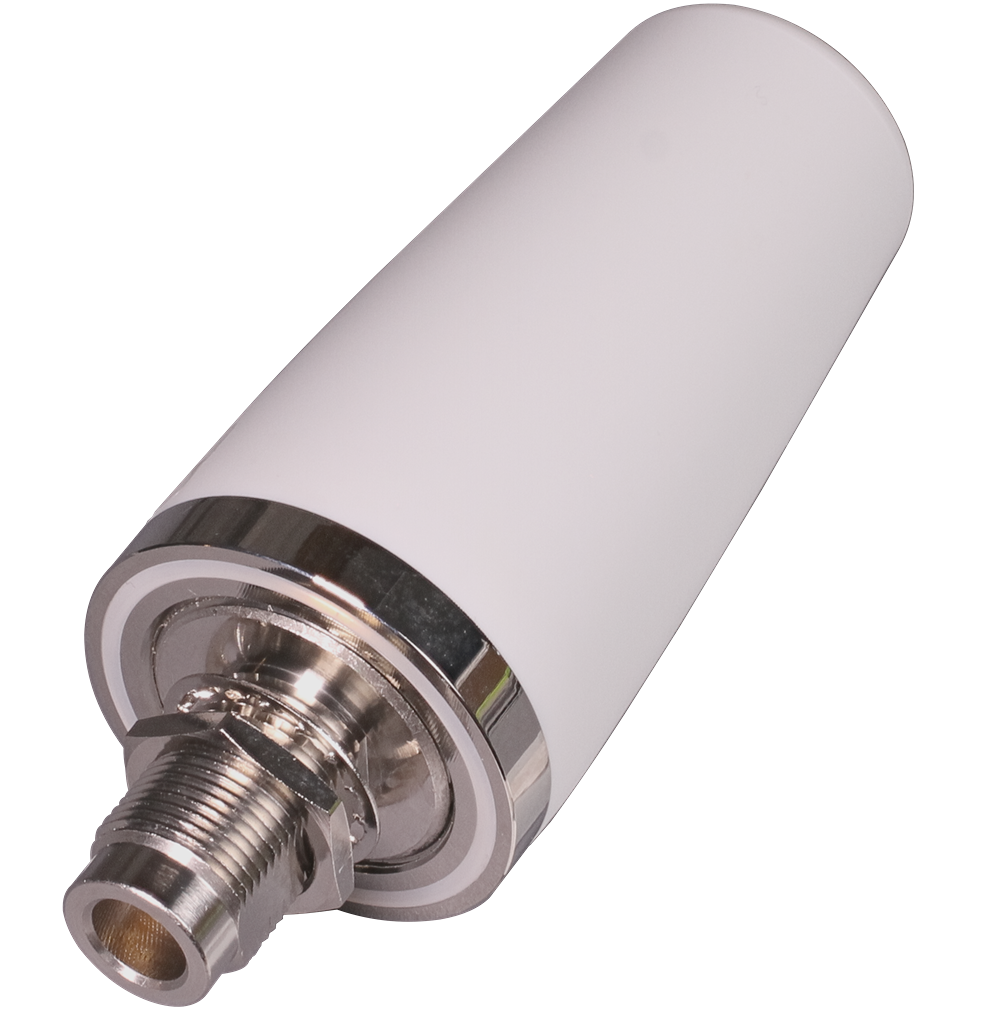

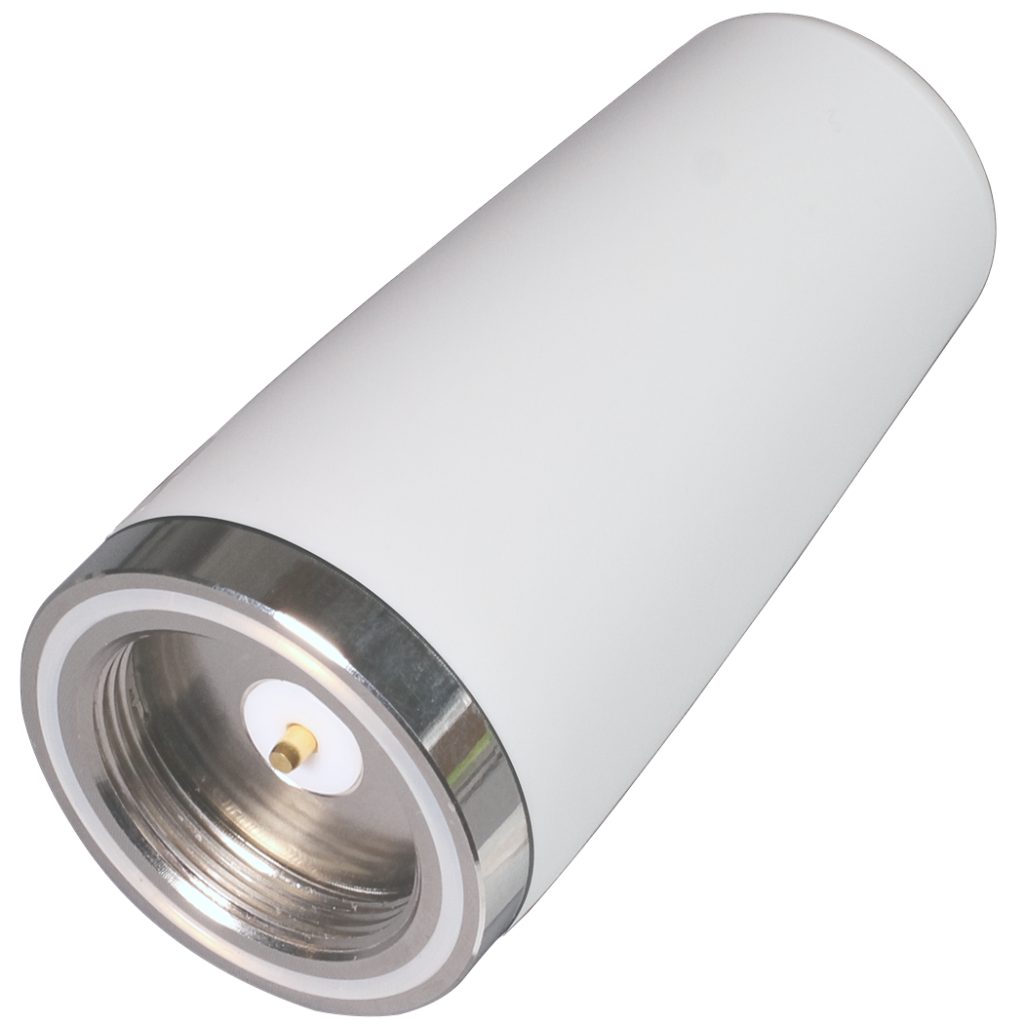

The AC65001-NJ compact dome antenna series is available in two colors, black and white, with fine matte finish, and two termination options: 24mm N-connector jack, and 14mm N-connector jack for thin/limited area mounts. Similar-performing NMO-terminated (AC65001-NM series) and cabled (AC17101 series) compact dome antennas are also available.
Features
- Very high efficiency
- IP67/IP65 ingress protection
- IK10 impact resistance
- O-ring mounting seal
- UV resistance
- Salt spray resistance
- Ground plane independent
- Dimensions: 82 mm x 40 mm
- 24 mm and 14 mm N-connector termination options
Applications
- 868 MHz ISM
- 915 MHz ISM
- WiFi HaLow
- LoRaWAN
- Sigfox
- Wi-SUN
- Wireless M-Bus
- IEEE 802.11ah
- IEEE 802.15.4g
- Internet of Things (IoT) devices
Ordering Information
Part Number
Description
Buy

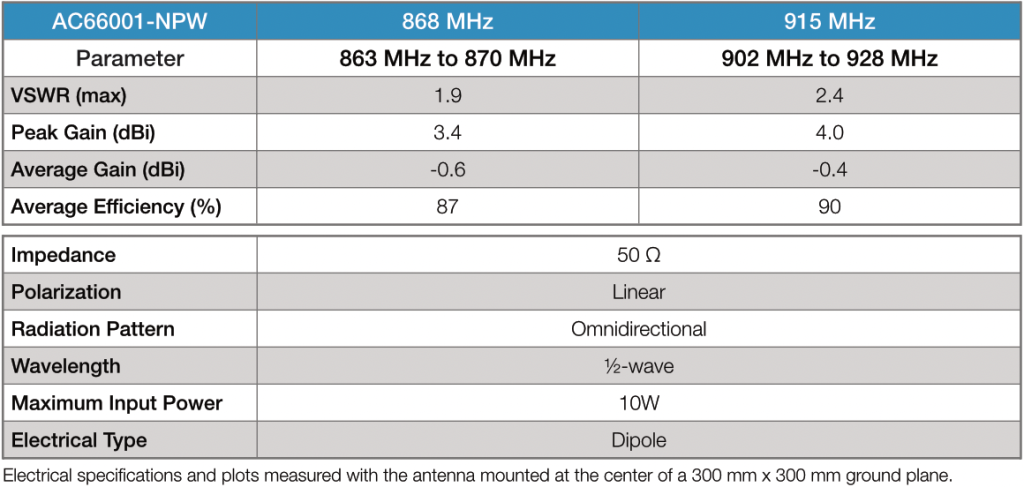

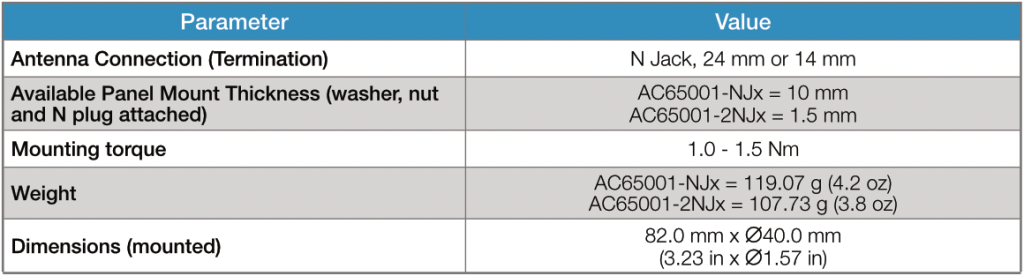

Specifications and Additional Information
