868 MHz ISM Hinged Whip Antenna
AC66502
The Antenna Company AC66502 hinged whip antennas provide a compact omnidirectional 868 MHz antenna solution for all ISM applications including WiFi HaLow™ and LoRaWAN®.
The 136 mm long hinged whip antenna performs adjacent to a ground plane and the hinged connector permits use in straight, 45- or 90-degree bent applications to support backplane applications and in-position signal optimization. Additionally, the AC66502 supports IP65 ingress protection for wet and dusty applications.

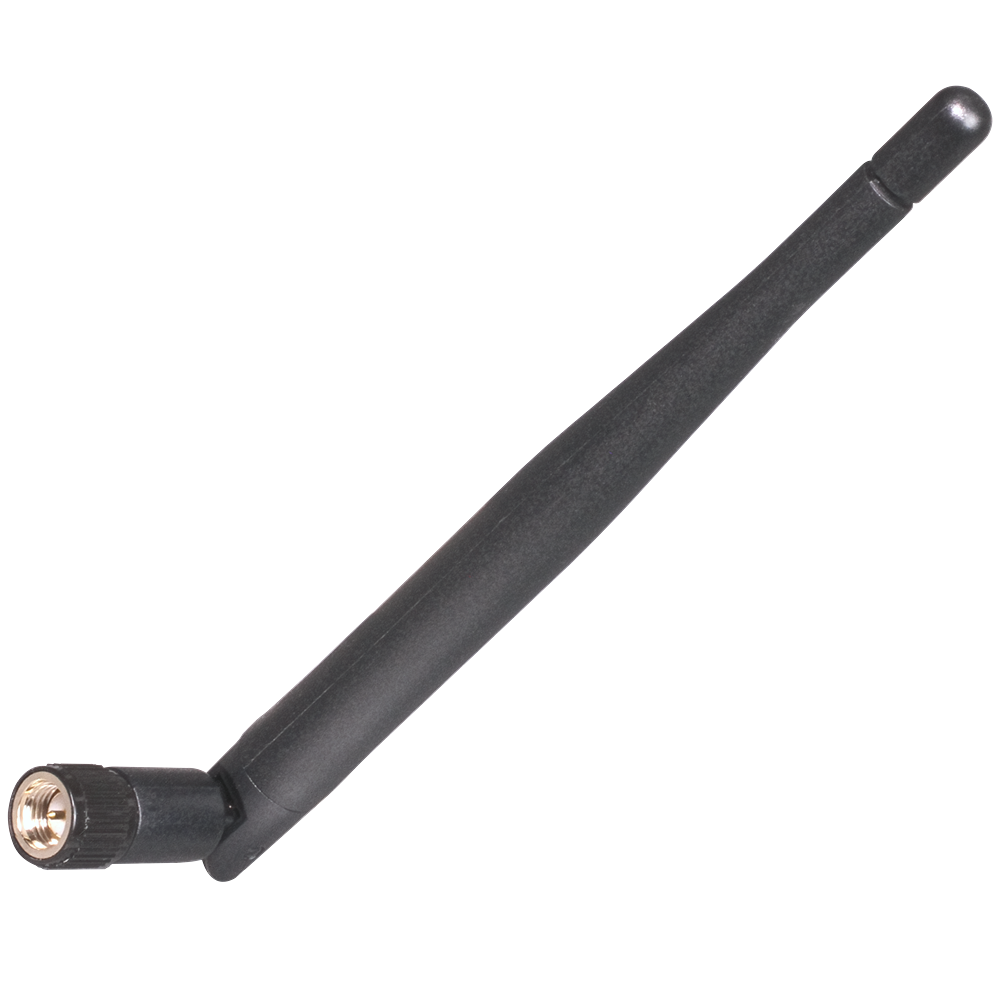

The AC66502 blade antenna is available with SMA plug (male) connector.
Categories: Connector Mount, External, LPWA/Sub-1 GHz ISM, Terminal Mount
Tags: Hinged, IEEE 802.11.ah, IP65, ISM, Linear Polarity, LoRaWAN, Omnidirectional, Plug (Male), SMA, Whip, Wi-SUN, WiFi HaLow, Wireless M-Bus
Features
- High efficiency
- IP65 ingress protection
- Dimensions: 136 mm x 10 mm
- Performance at 863 MHz to 870 MHz
- VSWR: 1.4
- Peak Gain: 1.3 dBi
- Efficiency: 57%
- SMA termination
Applications
- Unlicensed low power wide area networking (LPWAN)
- LoRaWAN
- WiFi HaLow™
- Wireless M-Bus
- Wi-Sun®
- Internet of Things (IoT) devices
- Gateways/Routers
- Industrial, scientific and medical (ISM) applications
Ordering Information
Part Number
Description
Buy
Specifications and Additional Information

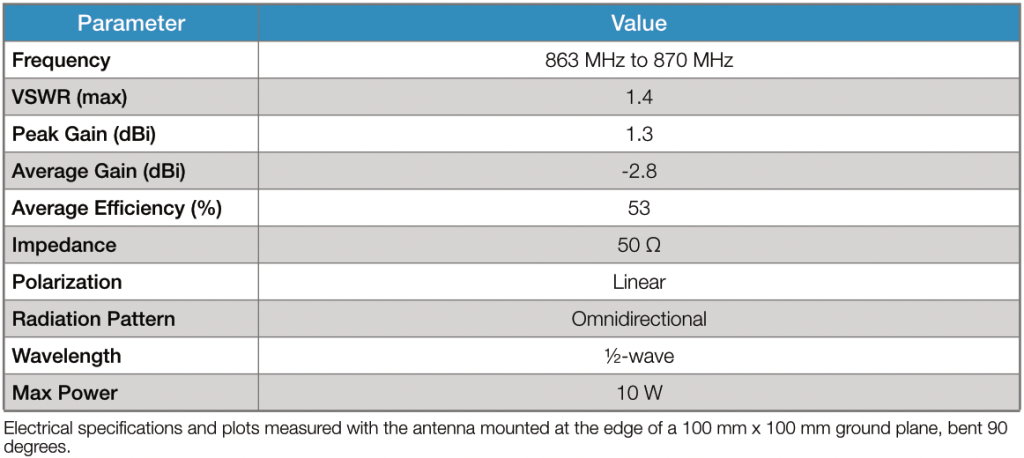

Electrical Specifications

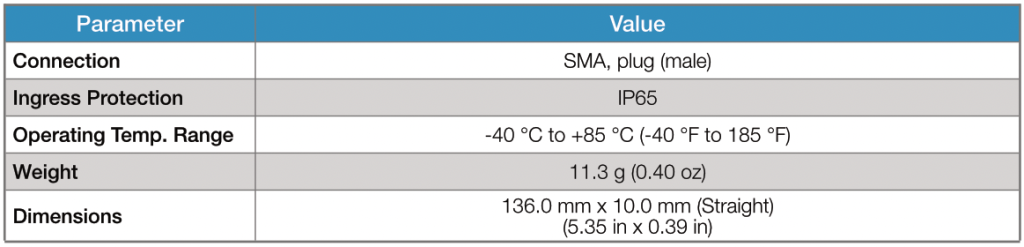

Mechanical Specifications
