868/915 MHz External Compact Dome Antenna

The AC67001 cabled SMA-connector dome antennas provide robust compact, outdoor, omnidirectional cellular antenna solutions for 868 MHz and 915 MHz ISM applications including LoRaWAN® and WiFi HaLow™. Each antenna supports IP67 and IP65 ingress protection as well as IK-10 impact resistance, all under an attractive, UV-resistant, dome. The 82 mm x 40mm mounted size combines excellent antenna performance with a compact low-profile that fits in many applications from mobile/vehicular roof-mount to fixed vending machine use, and supports use on both metal enclosures or in free space including non-metallic enclosures.

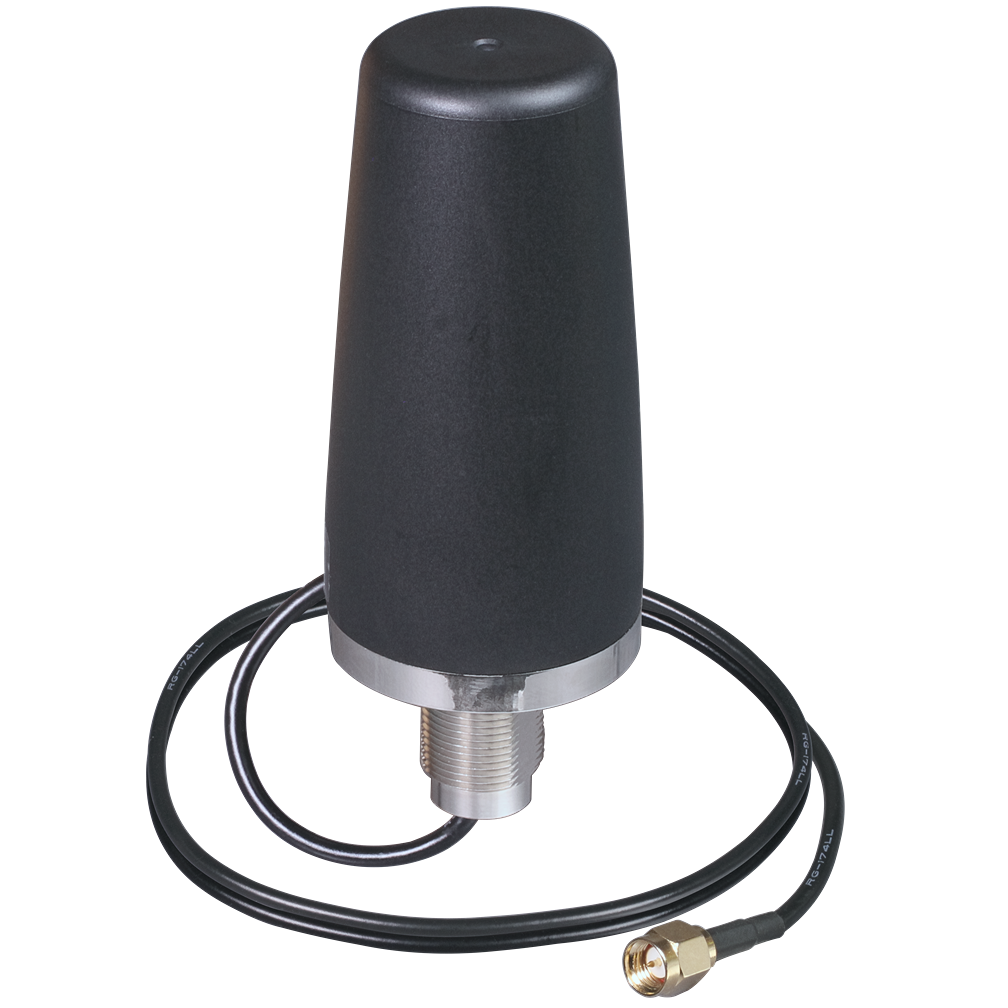

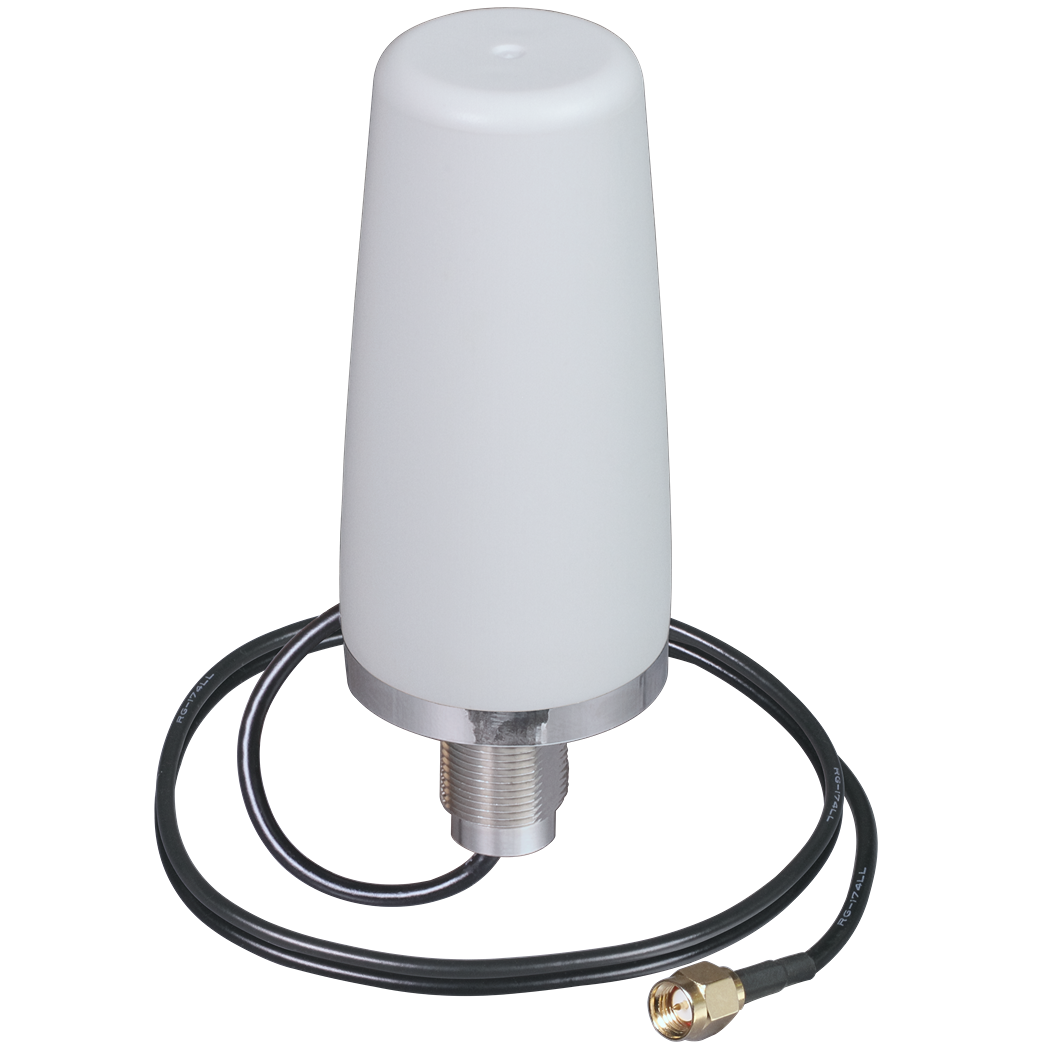

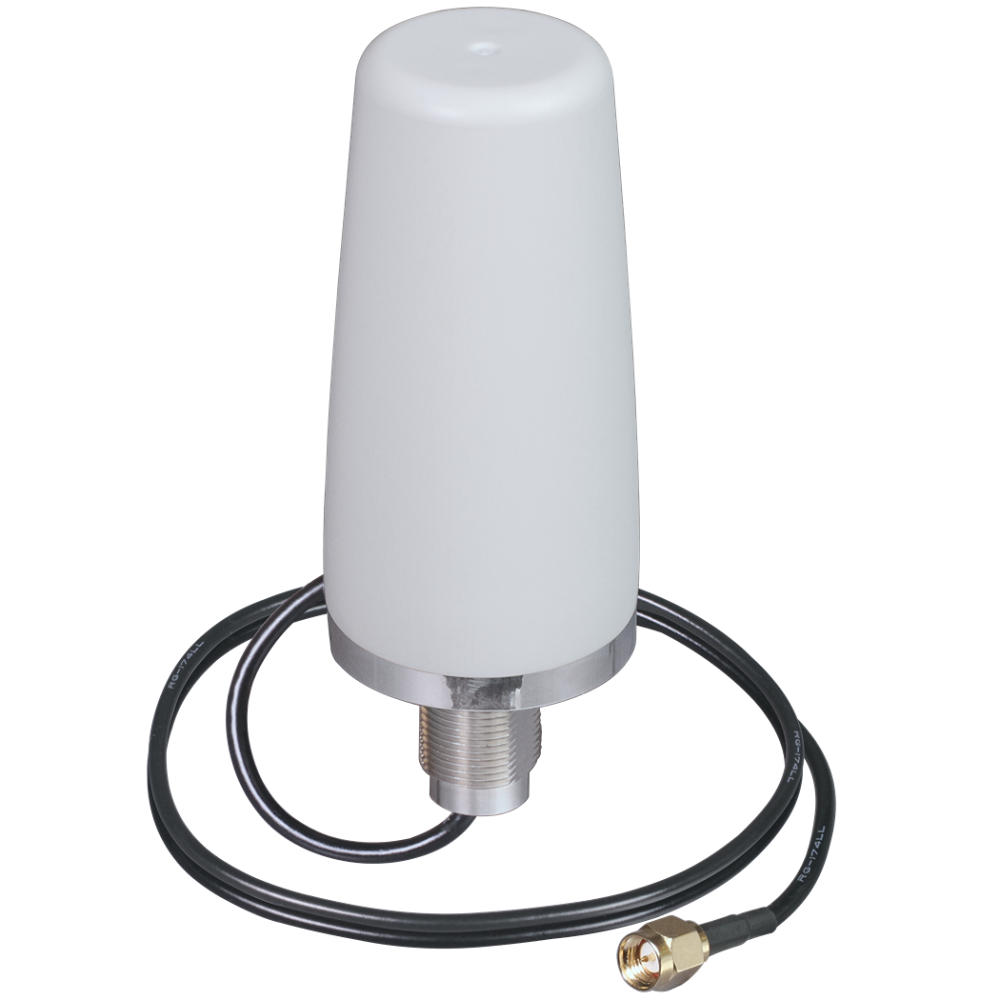

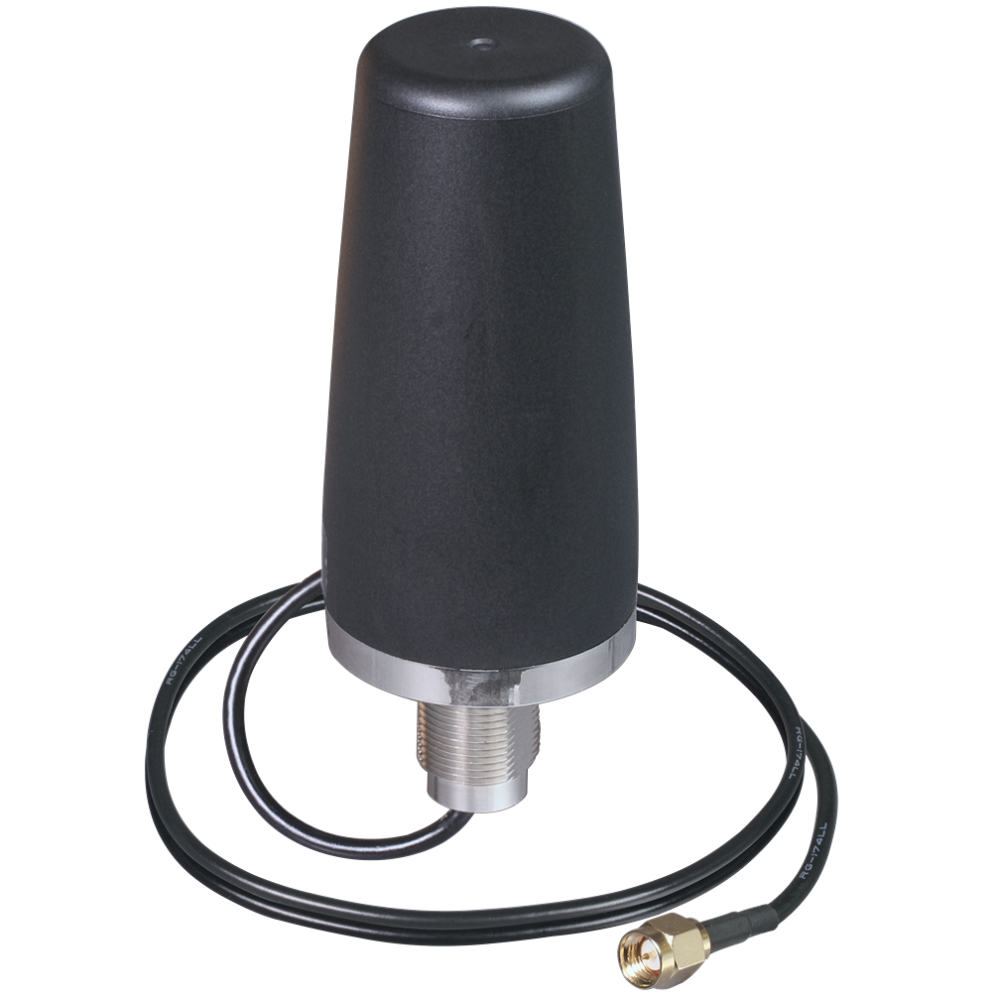

The AC67001 compact dome antenna are available in two colors, black and white, with fine matte finish, with multiple cable length options and SMA connector termination. Similar-performing NMO-terminated (AC65001-NM series) and N-connector terminated (AC65001-NJ) compact dome antennas are also available.
