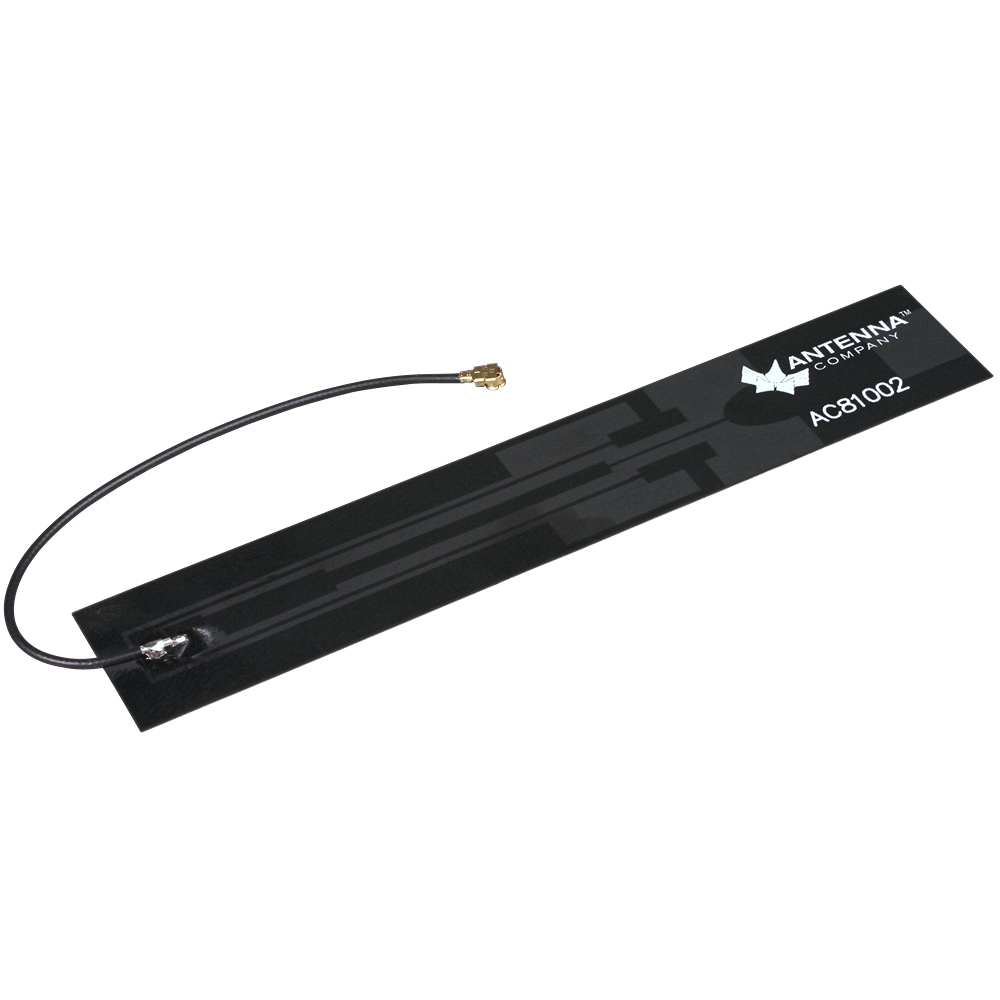

Cellular Adhesive Embedded FPC Antenna
AC81002
The AC81002 is a linearly polarized, flexible printed circuit (FPC) antenna that delivers robust, omnidirectional performance for cellular IoT applications including NB-IoT, Cat-M1/LTE-M, and 5G NR systems from 695 MHz to 6000 MHz. The flexibility and peel-and-stick adhesive backing make the AC81002 antenna easy to mount in unique and custom enclosures.
Connection is made to the radio via a 1.13 mm coaxial cable terminated in a U.FL-type plug connector. Various cable length options are available (See Ordering Information).
Categories: Adhesive Mount, Cellular, Embedded/Internal, Multiband Cellular
Tags: 116x21mm, 4G, 5G, 5G NR, 5G RedCap, Cat-M1, CBRS, Cellular IoT, eRedCap, flexible printed circuit, FPC, Ground Plane Independent, I-shape, Linear Polarization, LTE, LTE-M, MHF1-Type, NB-IoT, Omnidirectional, Passive, Plug (Male), Sub-6, U.FL-Type
Features
- Wideband (695MHz to 6000MHz) coverage
- Very high efficiency
- Ground plane independent
- I-shape form factor
- 115.5 mm x 20.5 mm x 0.25 mm
- Linear polarization for use in varying orientations
- MHF1/U.FL compatible plug termination
- Lightweight and flexible construction for embedded applications
- Ground plane independent
Applications
- Worldwide 5G/4G/3G/2G cellular
- Cellular IoT
- 5G NR/RedCap
- 4G LTE
- Cat-M1/LTE-M
- NB-IoT
- Smart Metering and Smart Utility Infrastructure
- M2MÂ and Industrial IoT
- Asset Management
- Tracking Devices
- Vending Machines
- Gateways/Routers/CPEs
Ordering Information
Part Number
Description
Buy
Specifications and Additional Information

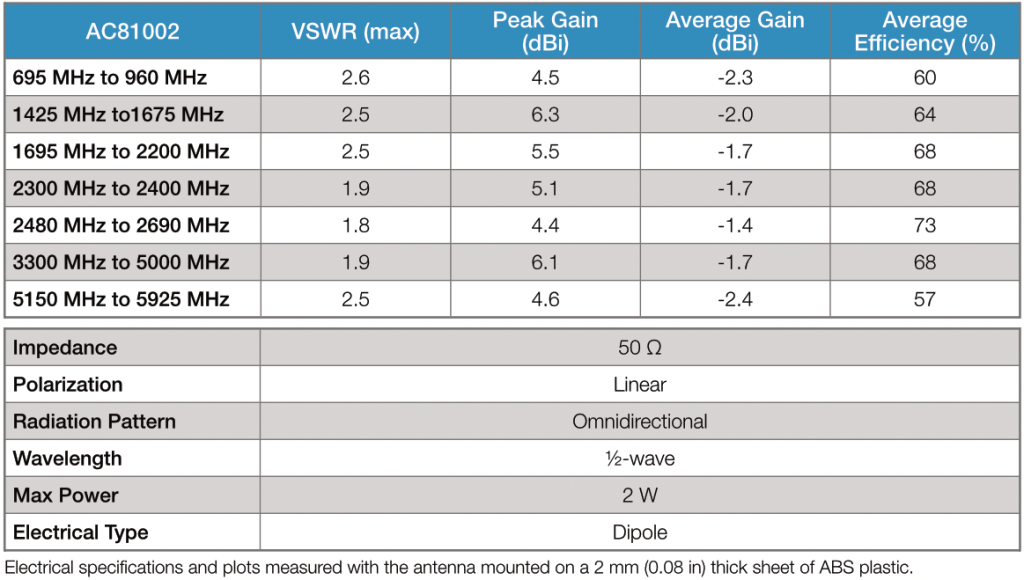

Electrical Specifications

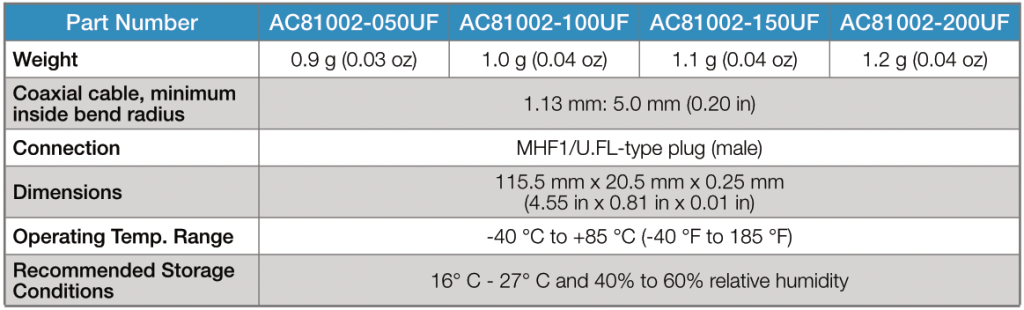

Mechanical Specifications
