Cellular Adhesive Embedded FPC Antenna
AC81005

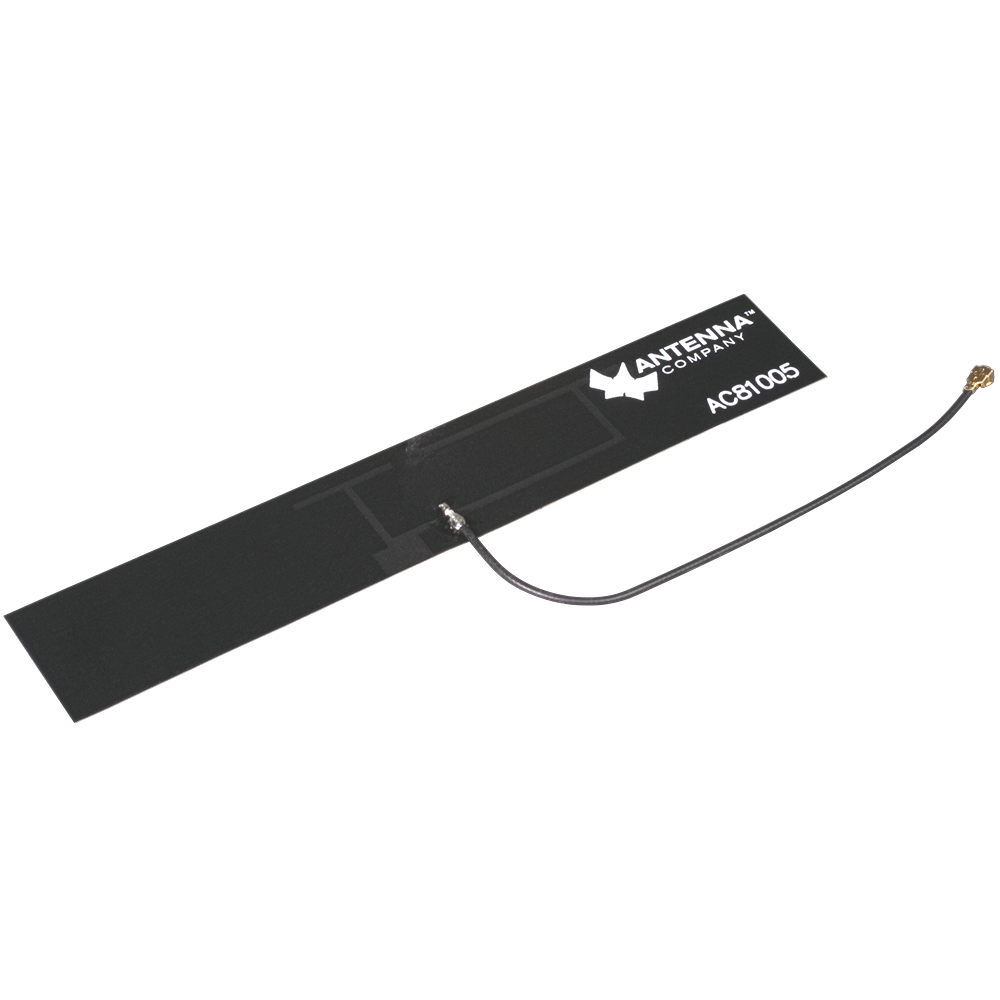

The Antenna Company AC81005 is a linearly polarized, flexible printed circuit (FPC) antenna that delivers robust, omnidirectional performance for wideband cellular IoT applications including NB-IoT, Cat-M1/LTE-M, and 5G NR systems from 617 MHz to 6000 MHz. The flexibility and peel-and-stick adhesive backing make the AC81005 antenna easy to mount in unique and custom enclosures.
Connection is made to the radio via a 1.13 mm coaxial cable terminated in a U.FL-type plug connector. Various cable length options are available (See Ordering Information).
Categories: Adhesive Mount, Cellular, Embedded/Internal, Multiband Cellular
Tags: 120x20mm, 4G, 5G, 5G NR, 5G RedCap, Cat-M1, CBRS, Cellular IoT, eRedCap, flexible printed circuit, FPC, Ground Plane Independent, Linear Polarization, LTE, LTE-M, MHF1-Type, NB-IoT, Omnidirectional, Passive, Plug (Male), Sub-6, T-shape, U.FL-Type
Features
- Broadband (617MHz to 6000MHz) coverage
- Very high efficiency
- Ground plane independent
- T-shape form factor
- 120.0 mm x 20.0 mm x 0.25 mm
- Linear polarization for use in varying orientations
- MHF1/U.FL compatible plug termination
Applications
- Worldwide 5G/4G/3G/2G cellular
- Cellular IoT
- 5G NR/RedCap
- 4G LTE
- Cat-M1/LTE-M
- NB-IoT
- Smart Metering and Smart Utility Infrastructure
- M2MÂ and Industrial IoT
- Asset Management
- Tracking Devices
- Vending Machines
- Gateways/Routers/CPEs
Ordering Information
Part Number
Description
Buy
AC81005-050UF
50mm cable cellular embedded FPC antenna with U.FL-type plug
AC81005-100UF
100mm cable cellular embedded FPC antenna with U.FL-type plug
AC81005-150UF
150mm cable cellular embedded FPC antenna with U.FL-type plug
AC81005-200UF
200mm cable cellular embedded FPC antenna with U.FL-type plug
Specifications and Additional Information

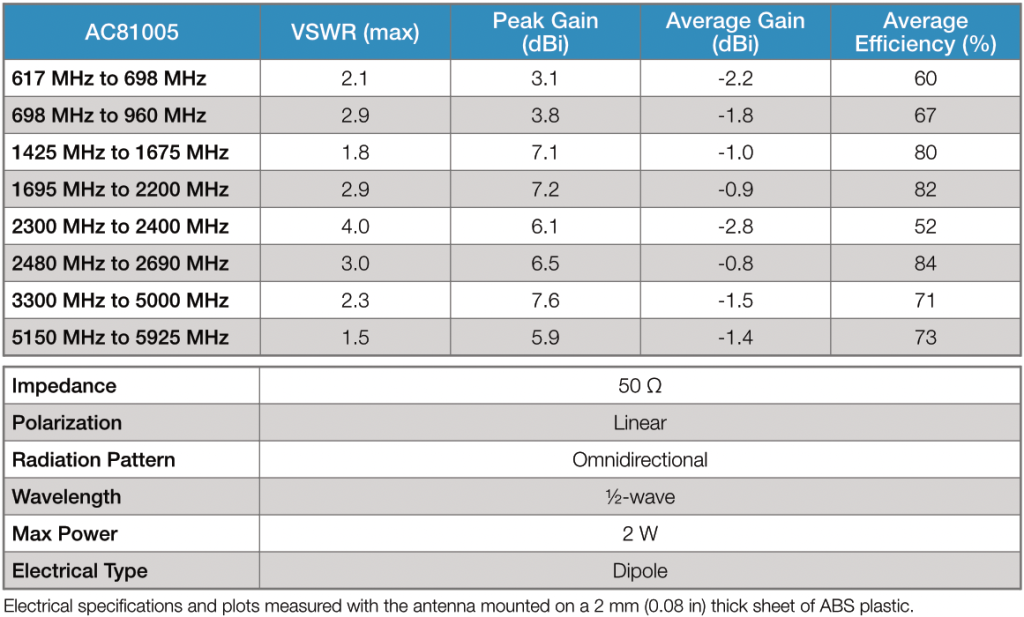

Electrical Specifications

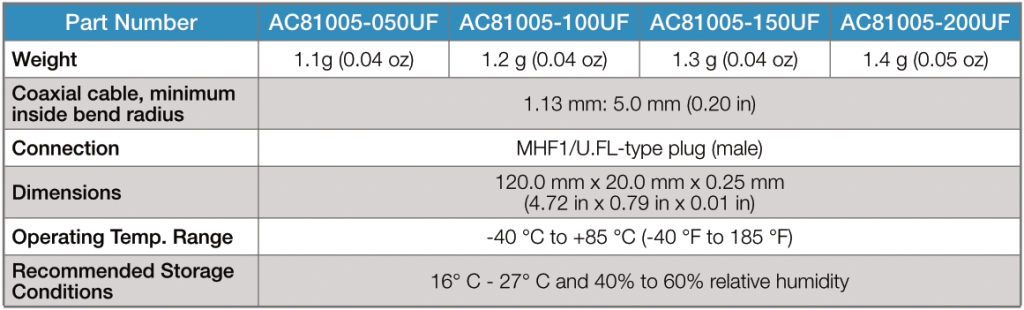

Mechanical Specifications
