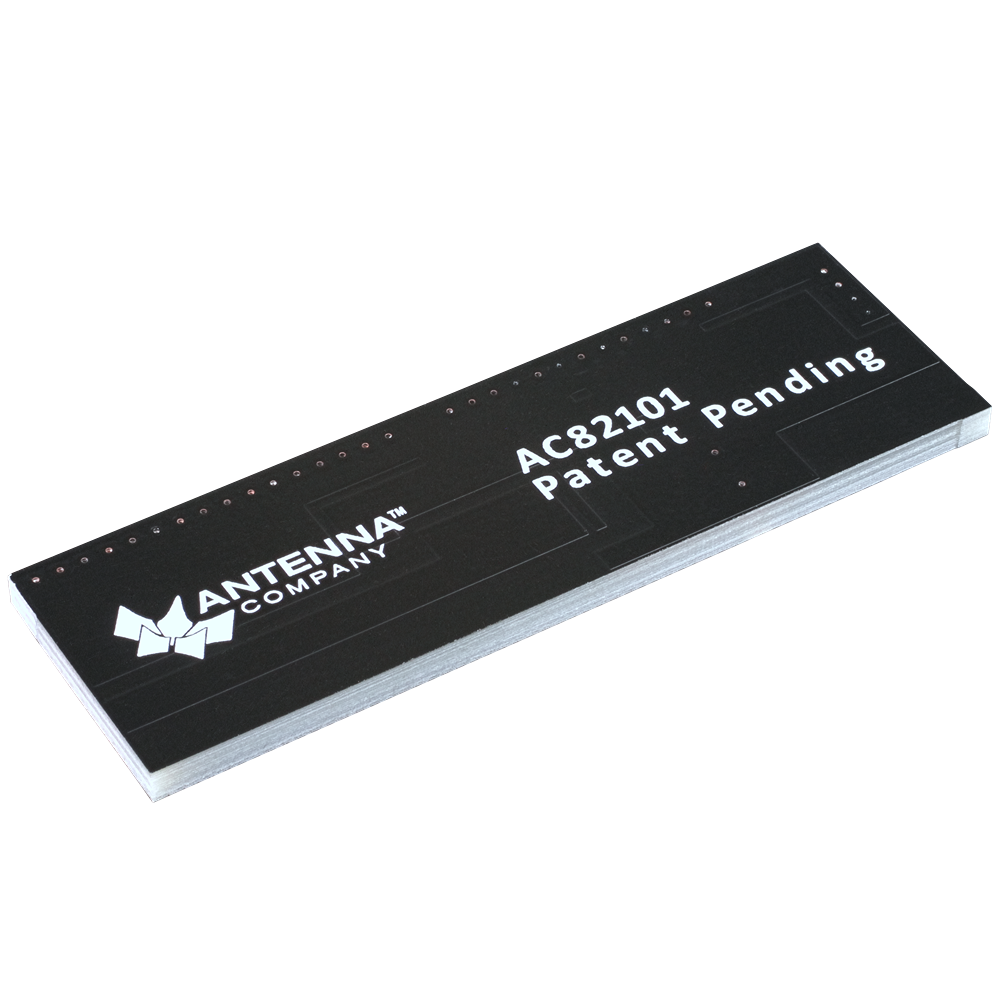

450 MHz/5G/4G Cellular Chip Antenna
AC82101
The Antenna Company AC82101 is a surface-mount monopole chip antenna for embedded cellular and cellular IoT (LTE-M/Cat-M1 and NB-IoT) applications. Supporting the 450 MHz and 617-6000 MHz bands, the AC82101 supports cellular applications in North America, Europe and worldwide.
Categories: Cellular, Embedded/Internal, SMD/Surface Mount, Wideband Cellular
Tags: 450 MHz, 4G, 5G, 5G NR, 900 MHz, Band 71, Cat-M1, CBRS, Cellular IoT, Chip, FR4, LTE, LTE 450, LTE-M, NB-IoT, Omnidirectional, Plug (Male), Private Wireless, SMA, Sub-6
Features
- Full-spectrum cellular performance
- 450-470 MHz, 617- 6000 MHz bands
- Performance at 450 MHz band
- VSWR: 2.7
- Peak Gain: 1.7 dBi
- Efficiency: 52%
- Excellent ground plane size resilience
- Compact package
- 26 mm x 70 mm x 3 mm
- Reflow- or hand-solder assembly
Applications
- 450 MHz cellular with wideband fallback
- Long-range smart meters
- Smart utility infrastructure
- Asset management
- Tracking devices
- Vending machines
- Cellular IoT
- LTE-M (Cat-M1) and NB-Iot
- 5G NR RedCap/eRedCap
- Industrial IoT
- Ultra-low-power devices
- Wearables
- Internet of Things (IoT) devices
Ordering Information
Part Number
Description
Buy
Specifications and Additional Information

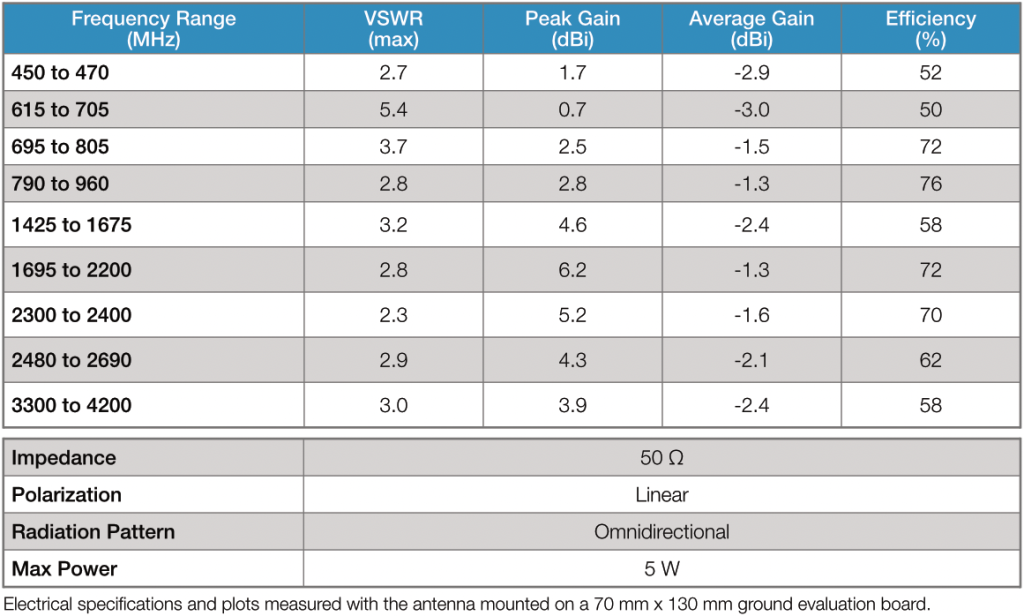

Electrical Specifications

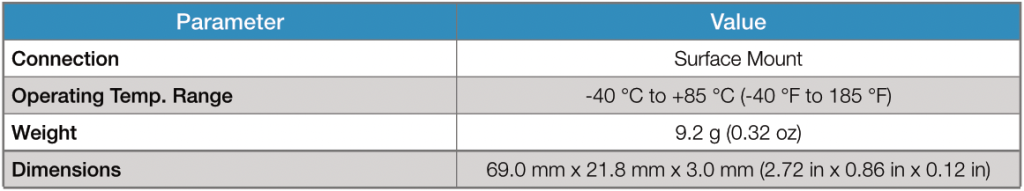

Mechanical Specifications
