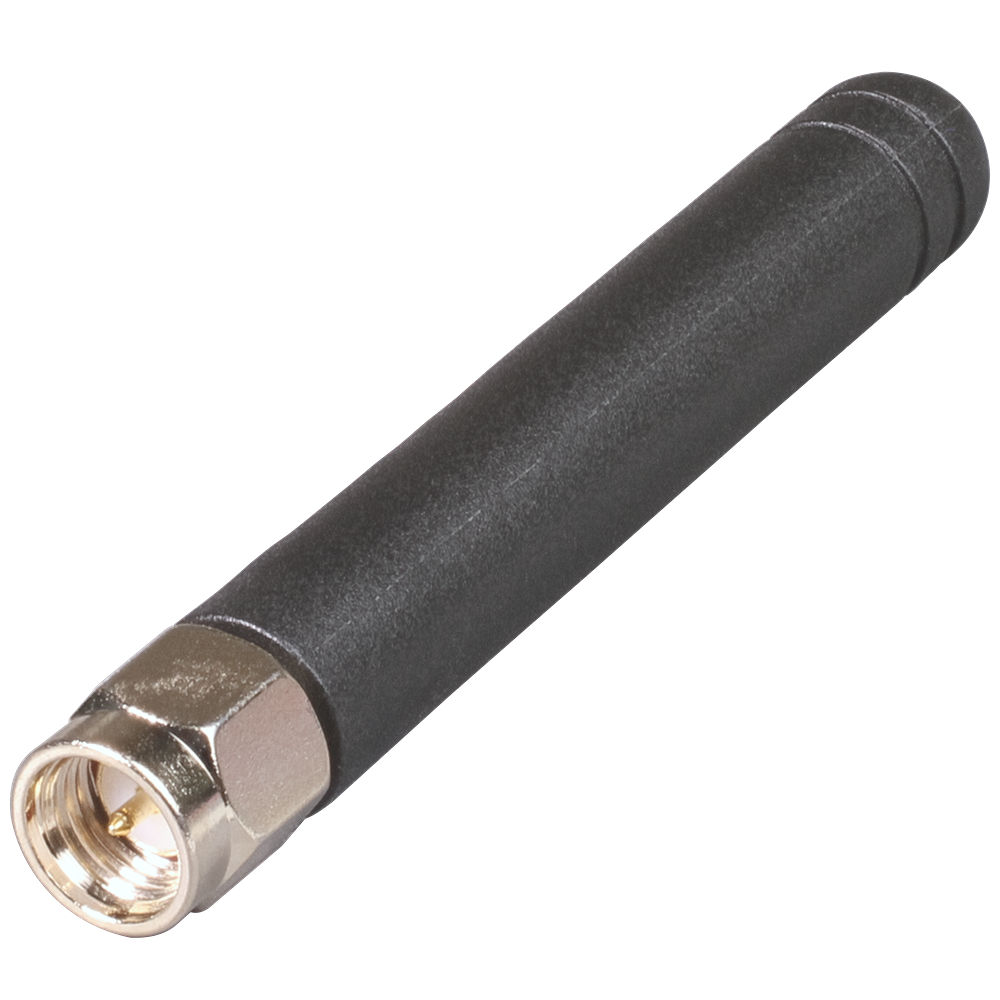

450 MHz Straight Whip Antenna
AC86500
The Antenna Company AC86500 straight whip antenna provides a compact omnidirectional 450 MHz band antenna solution for 450 LTE cellular applications.
The 60 mm long straight whip antenna performs adjacent to a ground plane and supports IP65 ingress protection for wet and dusty applications.
The AC86500 whip antenna is available with SMA plug (male) connector.
Categories: Cellular, Connector Mount, External, Single Band Cellular, Terminal Mount
Tags: 450 MHz, IP65, LTE, LTE 450, Omnidirectional, Plug (Male), SMA, Straight, Whip
Features
- Very high efficiency
- IP65 ingress protection
- Dimensions: 60.0 mm x 8.0 mm
- Performance at 450 MHz to 466 MHz
- VSWR: 2.4
- Peak Gain: 2.8 (dBi)
- Efficiency: 72%
- SMA termination
Applications
- 450 LTE applications
- Band 31
- Band 72
- Band 73
- Internet of Things (IoT) devices
- Smart metering
Ordering Information
Part Number
Description
Buy
Specifications and Additional Information

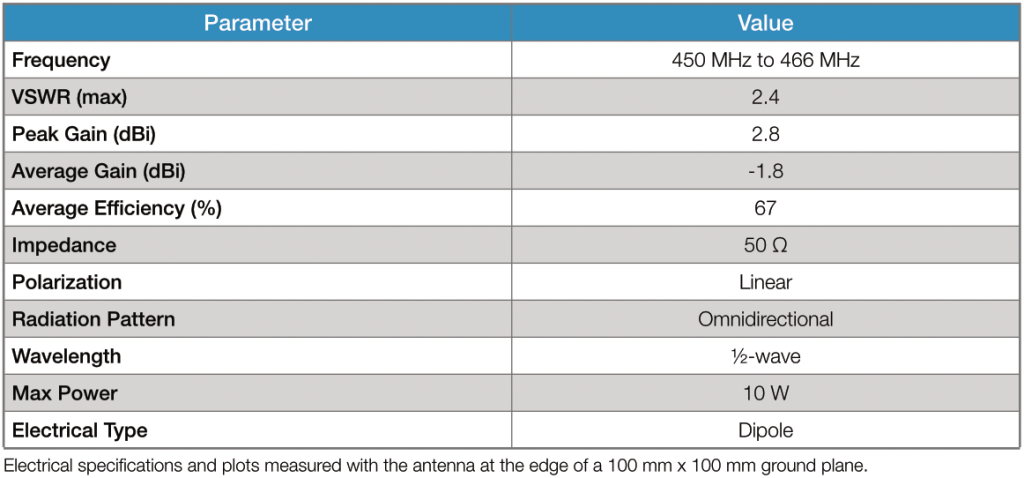

Electrical Specifications

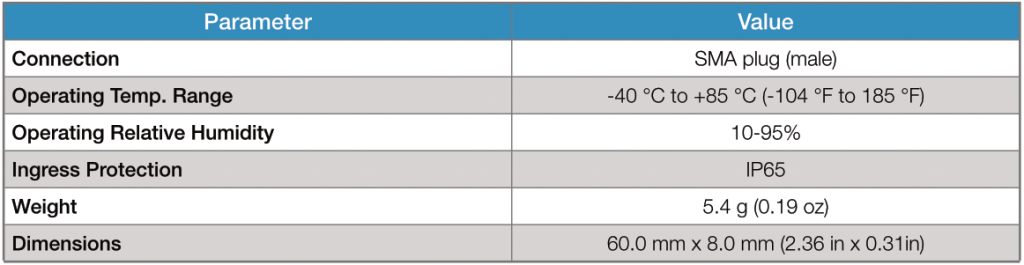

Mechanical Specifications
