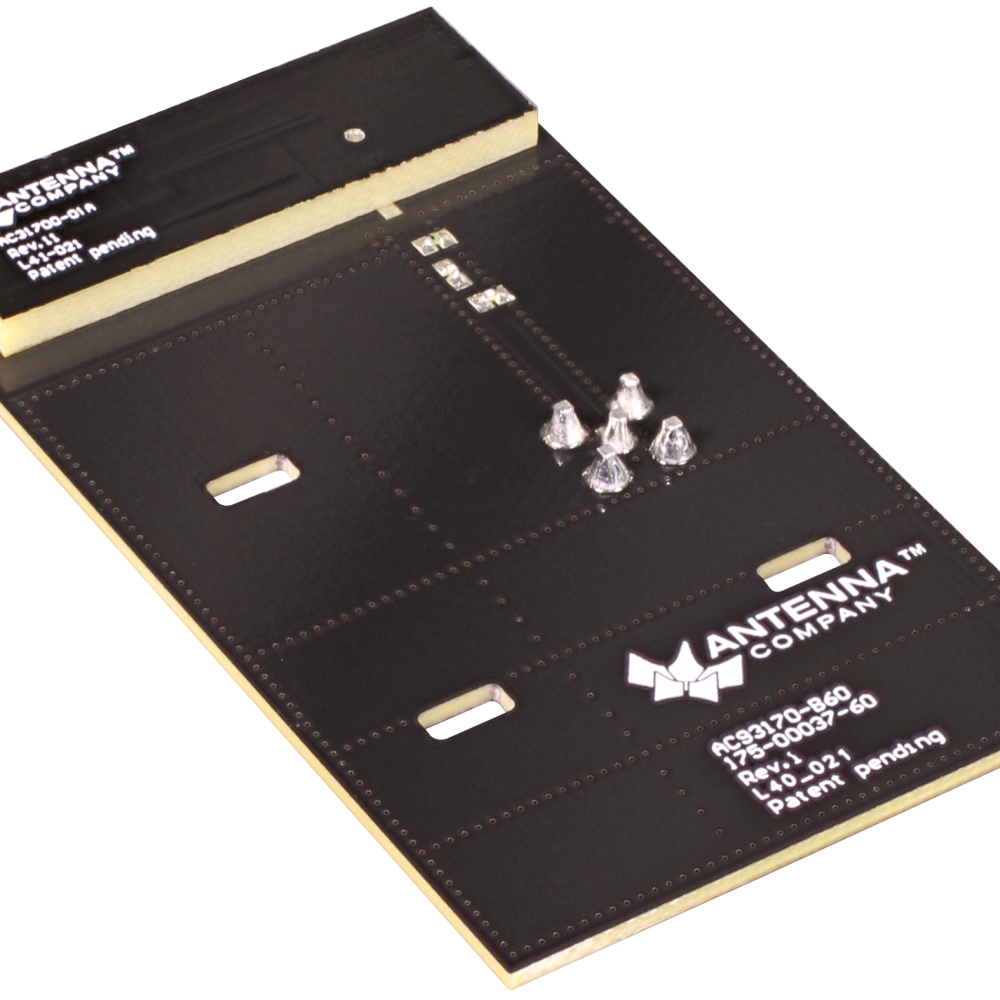

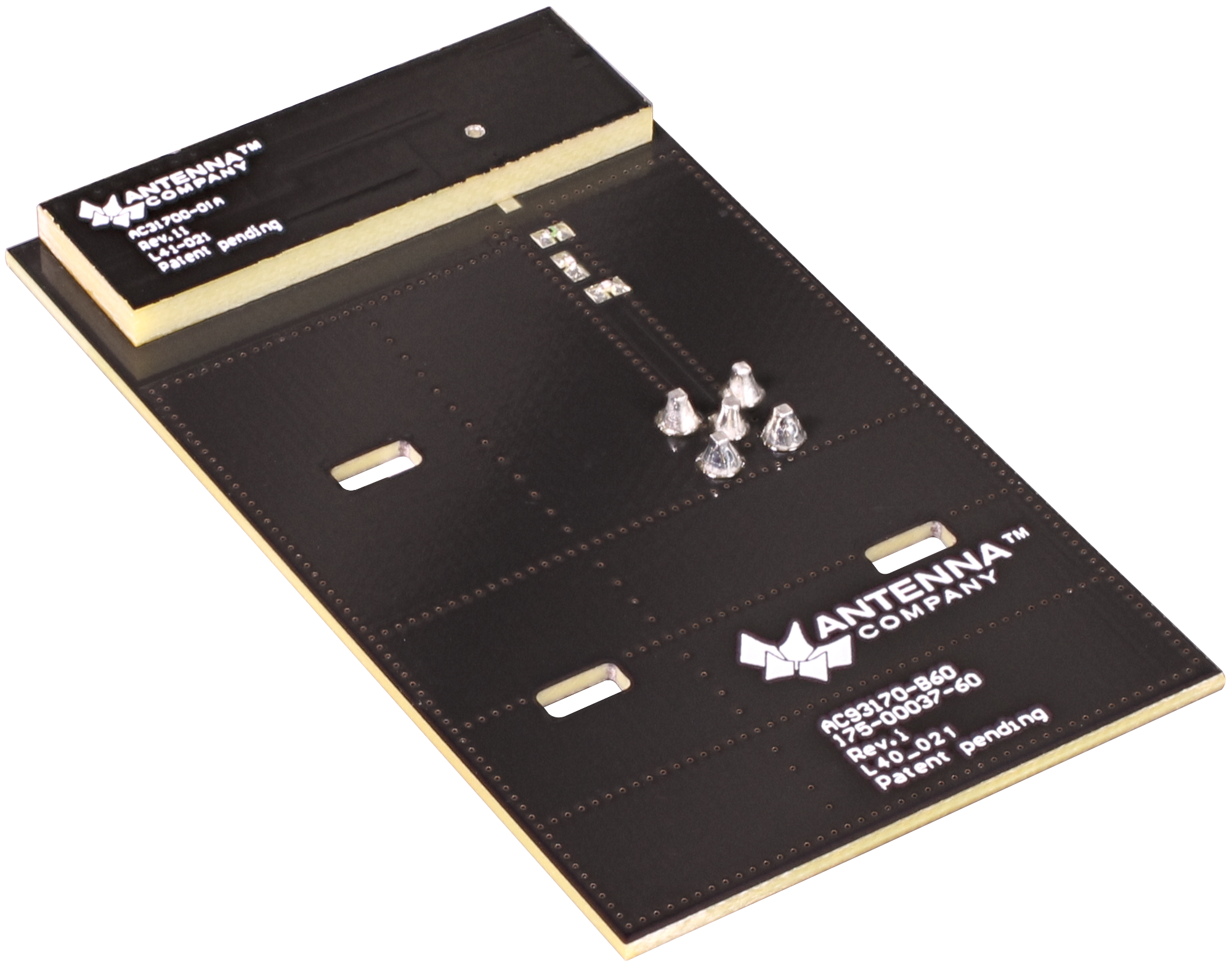

AC31700-01A/AC31700-01B Cellular Chip Antenna Evaluation Kit

AC93170-B80 is the evaluation kit for the AC31700-01A cellular surface mount chip antenna used with the AC31700-01B booster chip.

The AC31700-01A antenna has the unique feature of being compatible with a low-profile booster element AC31700-01B mounted directly beneath it on the rear side of the host printed circuit board. The use of a booster element allows antenna performance to be preserved on PCB boards with reduced ground plane lengths down to 50 mm.
