WiFi 6E 5GHz/6GHz FPC Antenna

AC10567

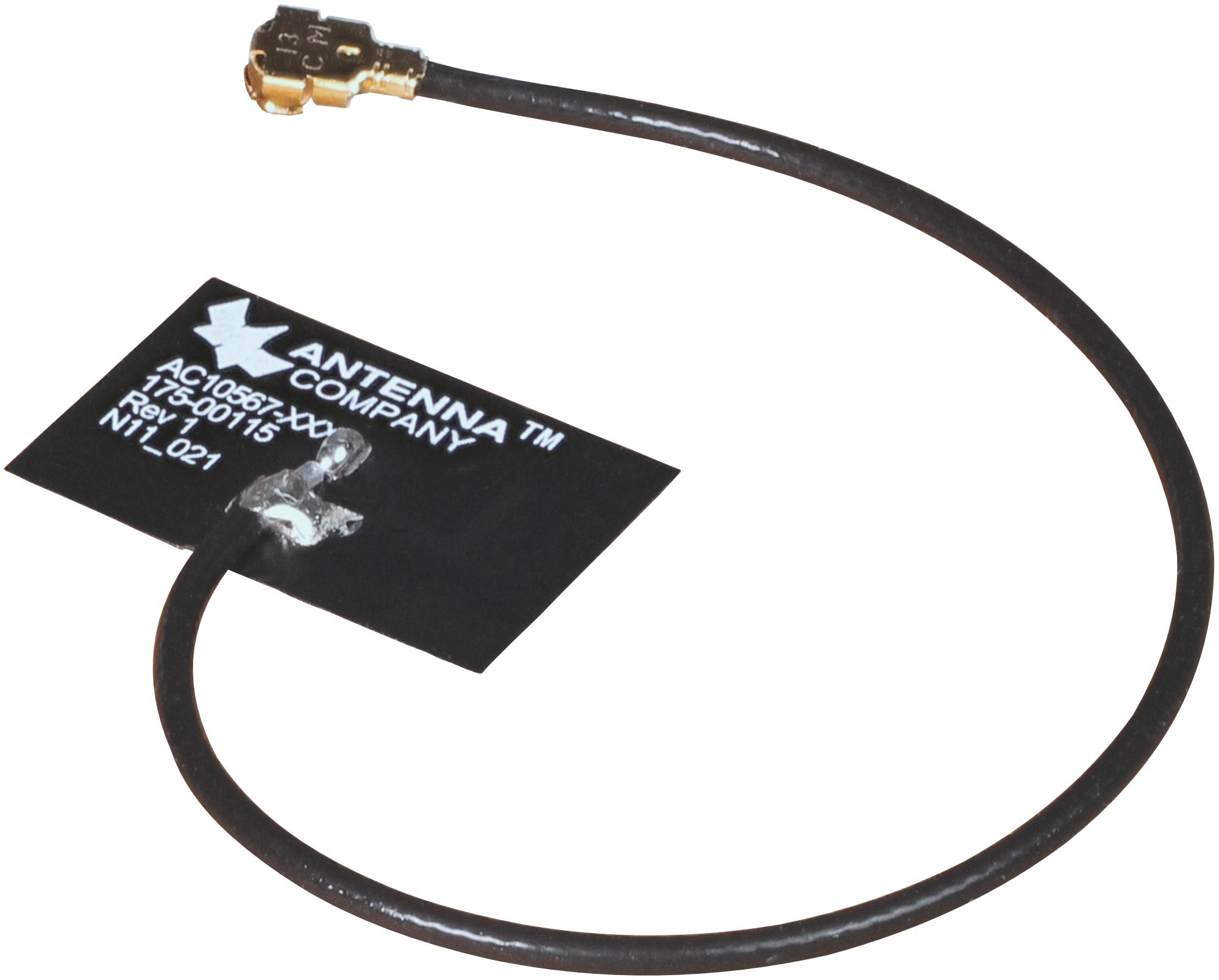

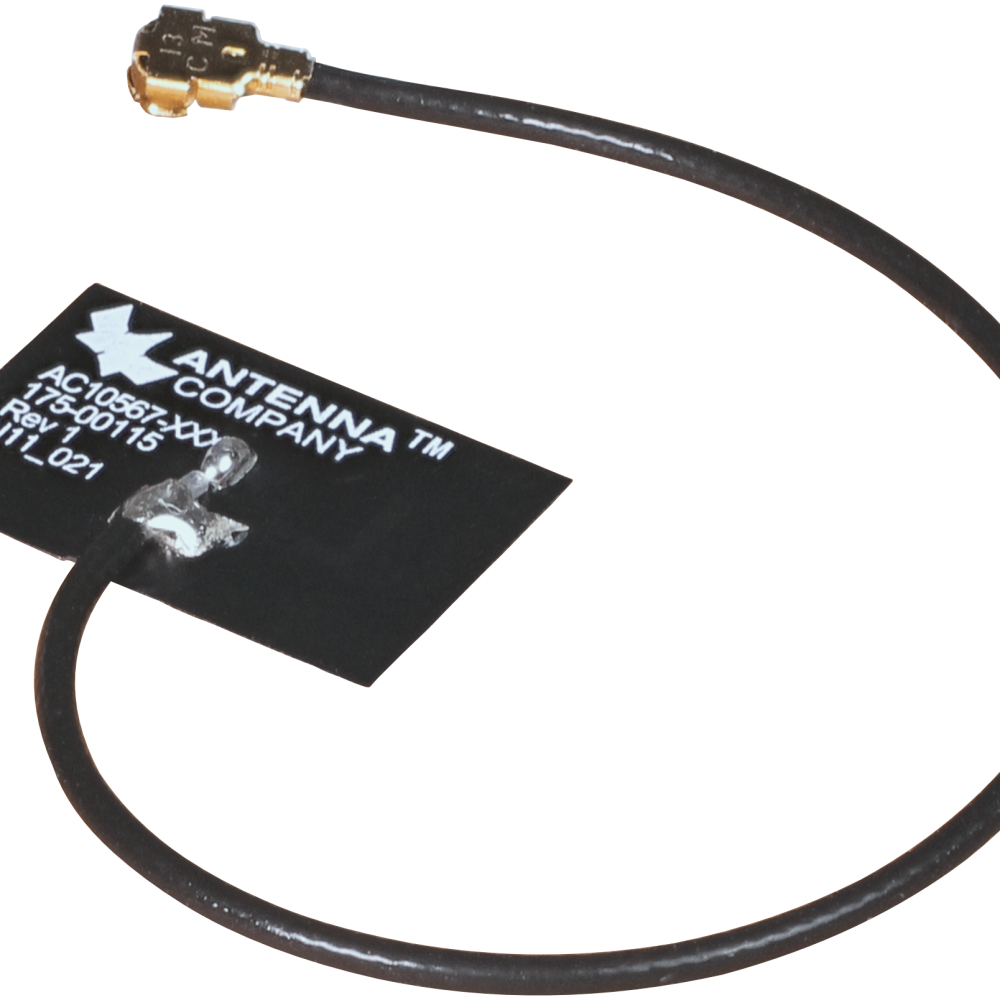

The AC10567 flexible embedded WiFi 6E dual-band WiFi antenna supports the 5 GHz and 6 GHz WiFi bands (5.15-7.125 GHz). The flexibility and peel-and-stick adhesive backing make the AC10567 antenna easy to mount in unique and custom enclosures.

Connection is made to the radio via a 1.13 mm coaxial cable terminated in a U.FL-type plug connector. Various cable length options are available (See Ordering Information).

Categories: Adhesive Mount, Dual Band WiFi, Embedded/Internal, Wi-Fi / Bluetooth

Tags: 5 GHz Band, 6 GHz Band, 802.11ac, 802.11ax, FPC, Wi-Fi, WiFi 5, WiFi 6E, WLAN

Features

Very high efficiency
Ground plane independent
Compact

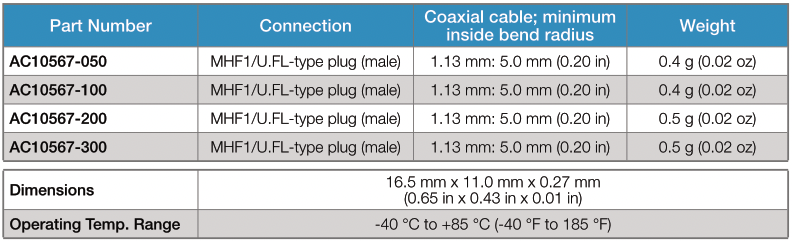

- 16.5 mm x 11.0 mm x 0.27 mm

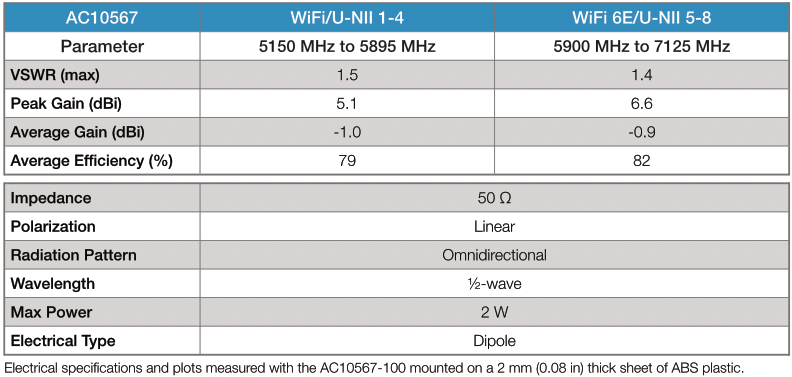

Performance at 5.15 GHz to 5.85 GHz
- VSWR: 1.5
- Peak Gain: 5.1 dBi
- Efficiency: 81%
Performance at 5.925 GHz to 7.125 GHz
- VSWR: 1.4
- Peak Gain: 6.6 dBi
- Efficiency: 88%
MHF1/U.FL compatible plug termination
