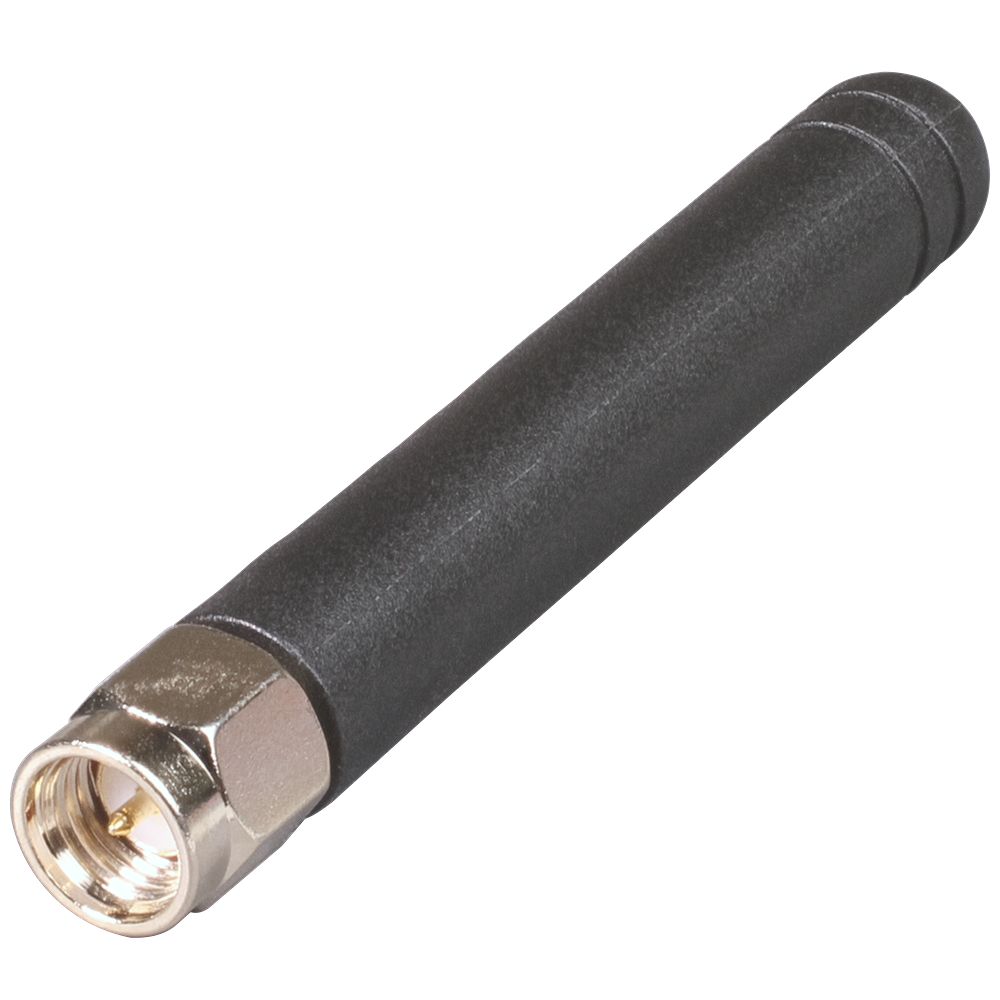

2.4 GHz Straight Whip Antenna
AC16500
The Antenna Company AC16500 straight whip antennas provide a compact omnidirectional 2.4 GHz antenna solution for all ISM applications including Bluetooth®, BLE and ZigBee®.
The 60 mm long straight whip (“rubber duck”) antenna performs adjacent to a ground plane or in free space including non-metallic enclosures. Additionally, the antenna supports IP65 ingress protection for wet and dusty applications.
The AC16500 whip antennas are available with SMA or reverse-polarity SMA (RP-SMA) plug (male) connector.
Categories: 2.4 GHz ISM, Connector Mount, External, Terminal Mount
Tags: BLE, Bluetooth, IEEE 802.15.4, IP65, ISM, Linear Polarity, Monopole, Omnidirectional, Plug, RP-SMA, SMA, Straight, Whip, ZigBee
Features
- Very high efficiency
- IP65 ingress protection
- Dimensions: 60 mm x 8 mm
- Performance at 2.4 GHz to 2.485 GHz
- VSWR: 1.7
- Peak Gain: 3.0 (dBi)
- Efficiency: 87%
- SMA and RP-SMA termination options
Applications
- 2.4 GHz ISM applications
- Bluetooth
- Bluetooth Low Energy (BLE)
- ZigBee
- Wi-Sun®
- Internet of Things (IoT) devices
- WLAN Gateways/Routers
Ordering Information
Part Number
Description
Buy
Specifications and Additional Information

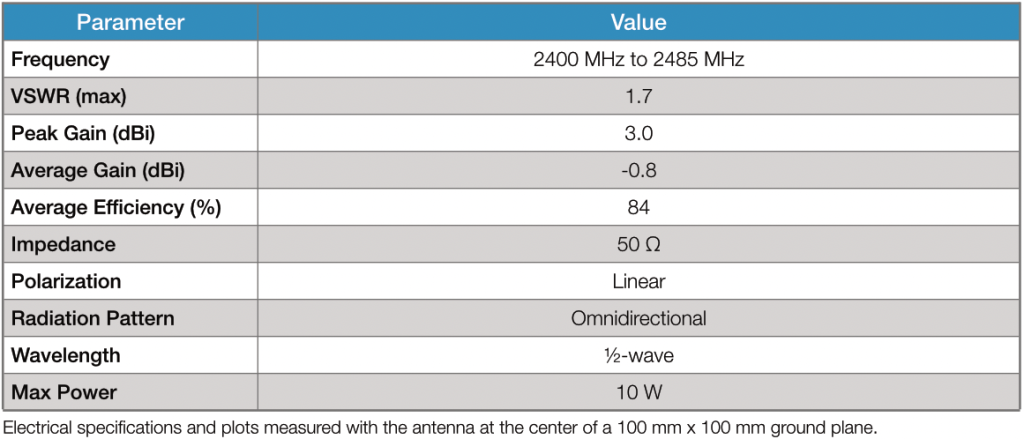

Electrical Specifications
Mechanical Specifications
