GNSS L1 Adhesive Embedded FPC Antenna

AC31002

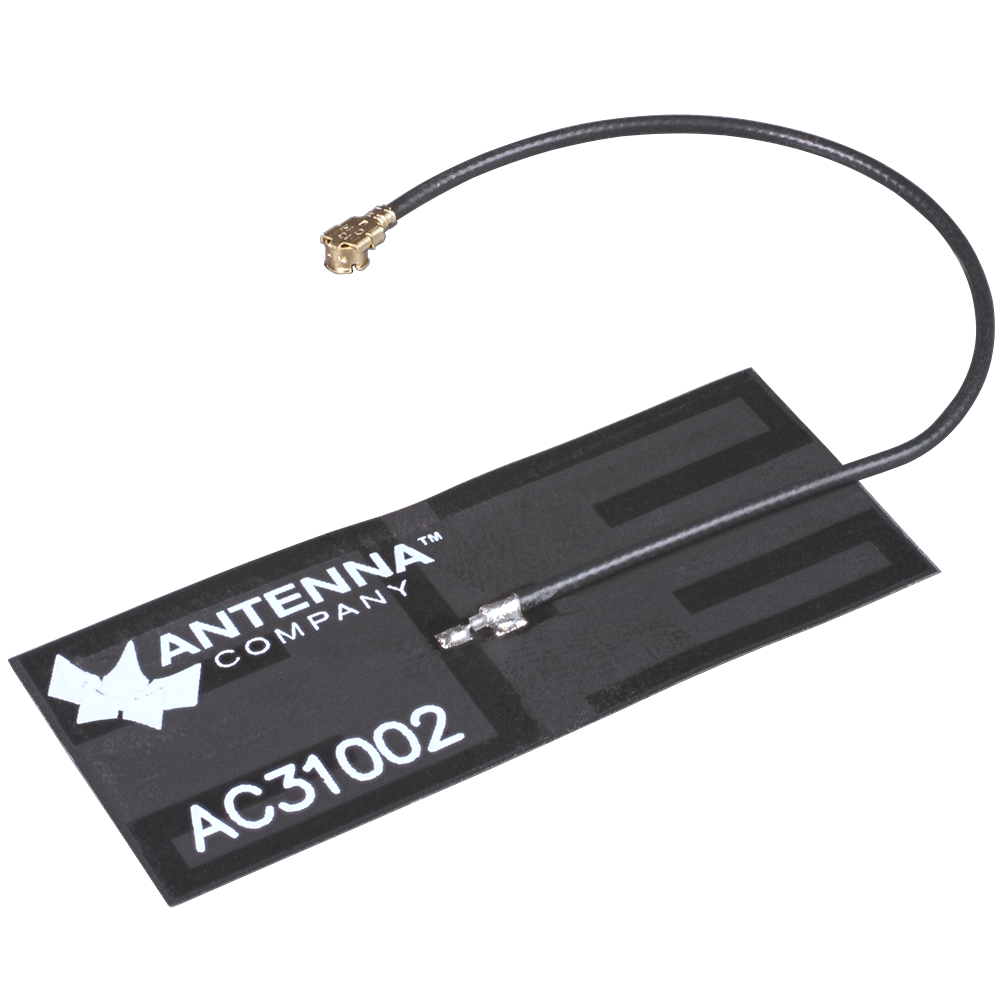

The AC31002 flexible printed circuit (FPC) antenna is an omnidirectional, linearly polarized, global navigation antenna operating in the GPS L1, Galileo E1, GLONASS L1, Beidou B1-BOC and QZSS bands. The AC31002 antenna features excellent efficiency and VSWR characteristics, providing quality of service for GNSS applications like vehicle tracking.

The flexibility and peel-and-stick adhesive backing make the AC31002 antenna easy to mount in unique and custom enclosures. Connection is made to the radio via a 1.13 mm coaxial cable terminated in a U.FL-type plug connector. Various cable length options are available (See Ordering Information).

Categories: Adhesive Mount, Embedded/Internal, GNSS/Navigation

Tags: 50x20mm, Beidou, Compass, FPC, FR4, Galileo, GLONASS, GPS, Ground Plane Independent, I-shape, Linear Polarization, MHF1-Type, Omnidirectional, Passive, Plug, QZSS, U.FL-Type

Features

Performance at 1.567 GHz to 1.584 GHz
- VSWR: 1.3
- Peak Gain: 4.5 dBi
- Efficiency: 83%
Performance at 1.593 GHz to 1.609 GHz
- VSWR: 1.2
- Peak Gain: 4.5 dBi
- Efficiency: 86%
Compact I-shape form factor

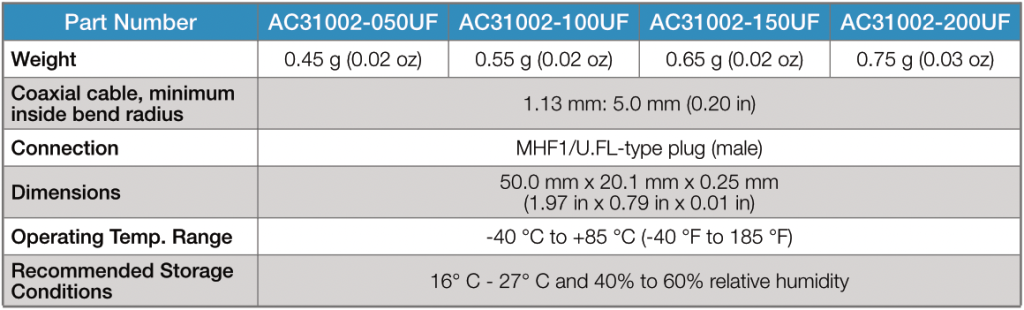

50.0 mm x 20.1 mm x 0.25 mm
Linear polarization for use in varying orientations
MHF1/U.FL compatible plug termination
Ground plane independent
Clean resonance with no unwanted out of band response

Applications

Global Navigation (GNSS)
- GPS L1
- Galileo E1
- GLONASS L1
- Beidou B1-BOC
- QZSS
Timing Applications
OBD-II Module
Internet of Things (IoT) Applications
- Asset Tracking
- Smart Energy
- M2M Industrial
- Wearables/Healthcare
- UAV/Drones
