868 MHz Hinged Whip Antenna
AC66504
The Antenna Company AC66504 hinged whip antennas provide a robust omnidirectional 868 MHz antenna solution for all ISM applications including LoRaWAN® and Wi-Fi HaLow™ . The antenna may be positioned at 0 (straight), 45 or 90 degrees to suit many applications.
The 196 mm long hinged whip antenna performs at the edge or center of a ground plane for wide applicability. The AC66504 whip antennas are available with SMA plug (male) or RP-SMA plug connector.
Categories: Connector Mount, External, LPWA/Sub-1 GHz ISM, Terminal Mount
Tags: 868 MHz, Hinged, IEEE 802.11.ah, ISM, LoRaWAN, Plug (Male), RP-SMA, SMA, Whip, WiFi HaLow
Features
- Very high efficiency
- IP65 ingress protection
- Dimensions: 196mm x 10 mm straight
- Performance at 863 MHz to 870 MHz
- VSWR: 2.2
- Peak Gain: 2.2 dBi
- Efficiency: 64.6%
- SMA or RP-SMA termination
Applications
- 868 MHz ISM applications
- LoRaWAN
- WiFi HaLoW
- Wi-Sun® FAN
- Wireless M-Bus
- DASH7®
- Internet of Things (IoT) devices
- WLAN Gateways/Routers
Ordering Information
Part Number
Description
Buy
Specifications and Additional Information

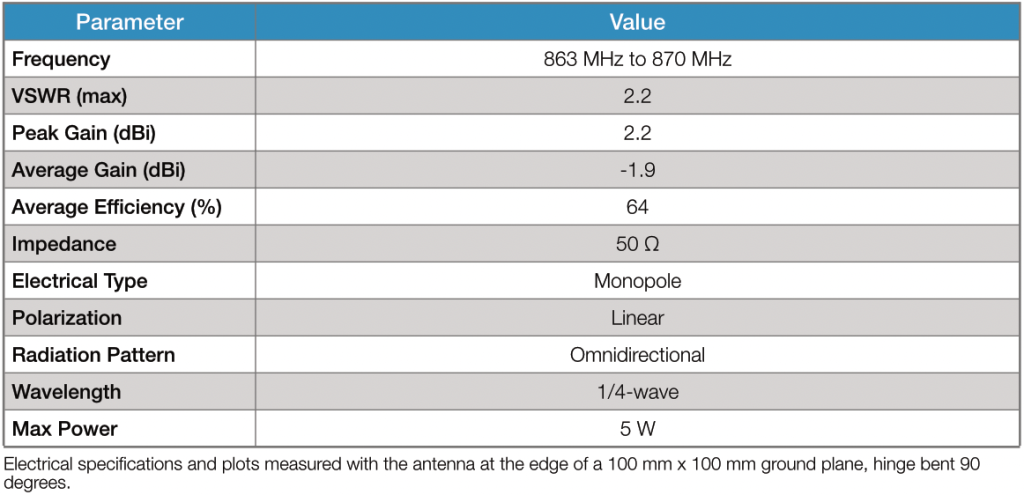

Electrical Specifications

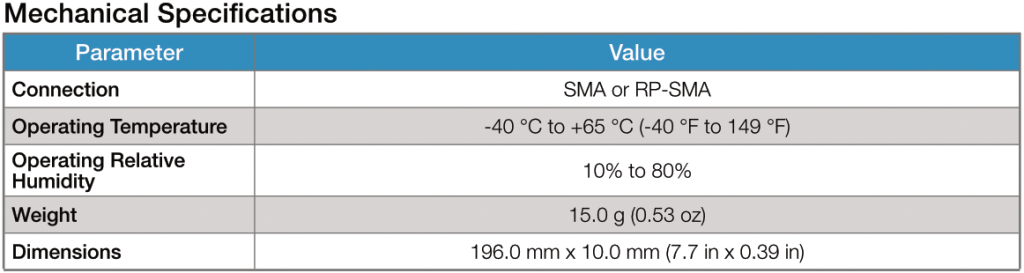

Mechanical Specifications
