915 MHz Hinged Whip Antenna

AC66506

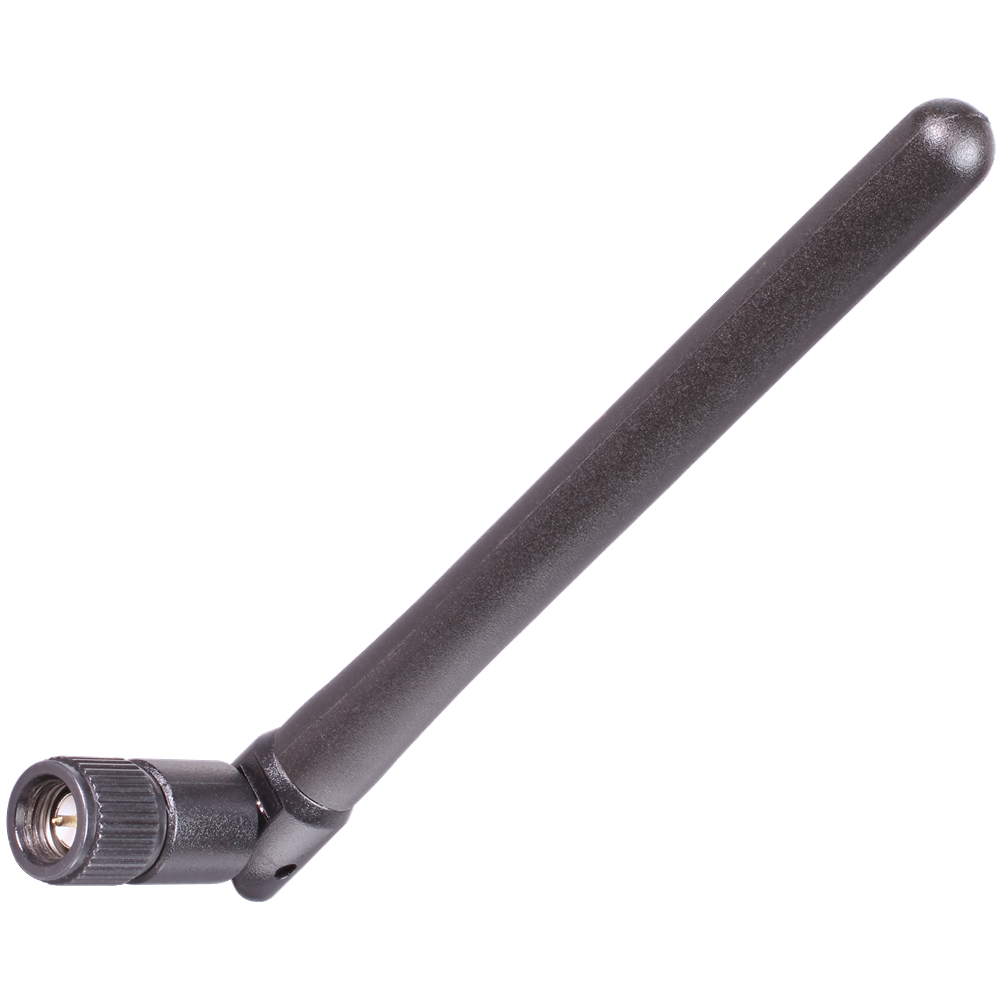

The Antenna Company AC66506 hinged whip antennas provide a robust omnidirectional 915 MHz antenna solution for all ISM applications including LoRaWAN® and Wi-Fi HaLow™ . The antenna may be positioned at 0 (straight), 45 or 90 degrees to suit many applications.

The 110 mm long hinged whip antenna performs in free space or adjacent to a ground plane for wide applicability. The AC66506 whip antennas are available with SMA plug (male) or RP-SMA plug connector.

Categories: Connector Mount, External, LPWA/Sub-1 GHz ISM, Terminal Mount

Tags: 915 MHz, Hinged, IEEE 802.11.ah, ISM, LoRaWAN, Plug (Male), RP-SMA, SMA, Whip, WiFi HaLow

Features

Very high efficiency
IP65 ingress protection

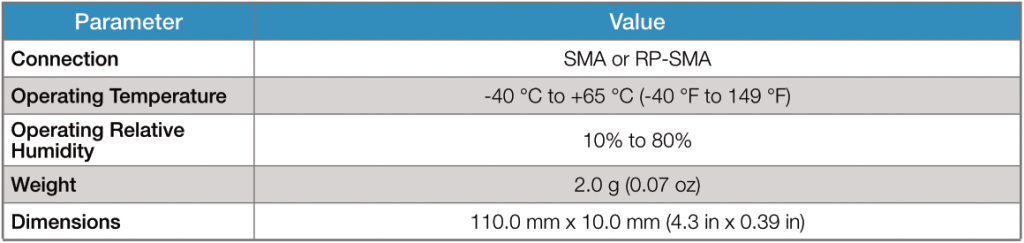

Dimensions: 110 mm x 10 mm straight

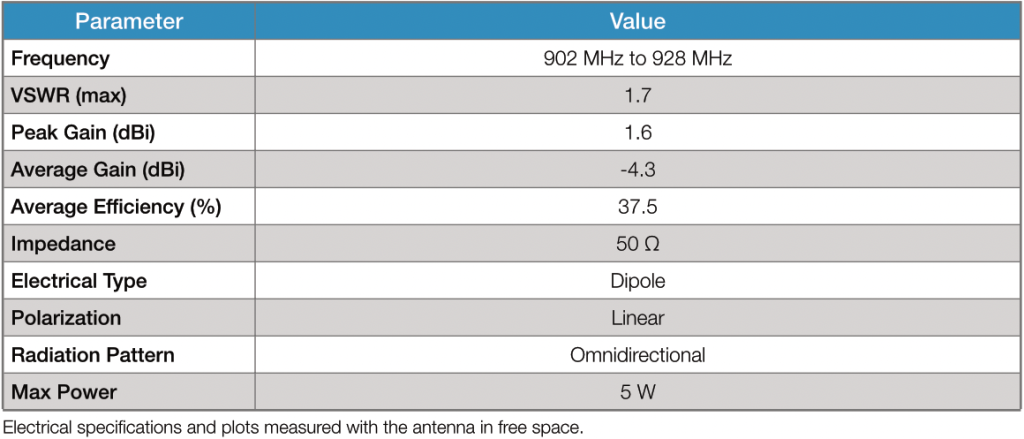

Performance at 902 MHz to 928 MHz
- VSWR: 1.7
- Peak Gain: 1.6 (dBi)
- Efficiency: 38.2%
SMA or RP-SMA termination
