915 MHz ISM Straight Whip Antenna

AC66508

The Antenna Company AC66508 straight whip antennas provide a very compact omnidirectional 915 MHz antenna solution for all ISM applications including LoRaWAN® and Wi-Fi HaLow™.

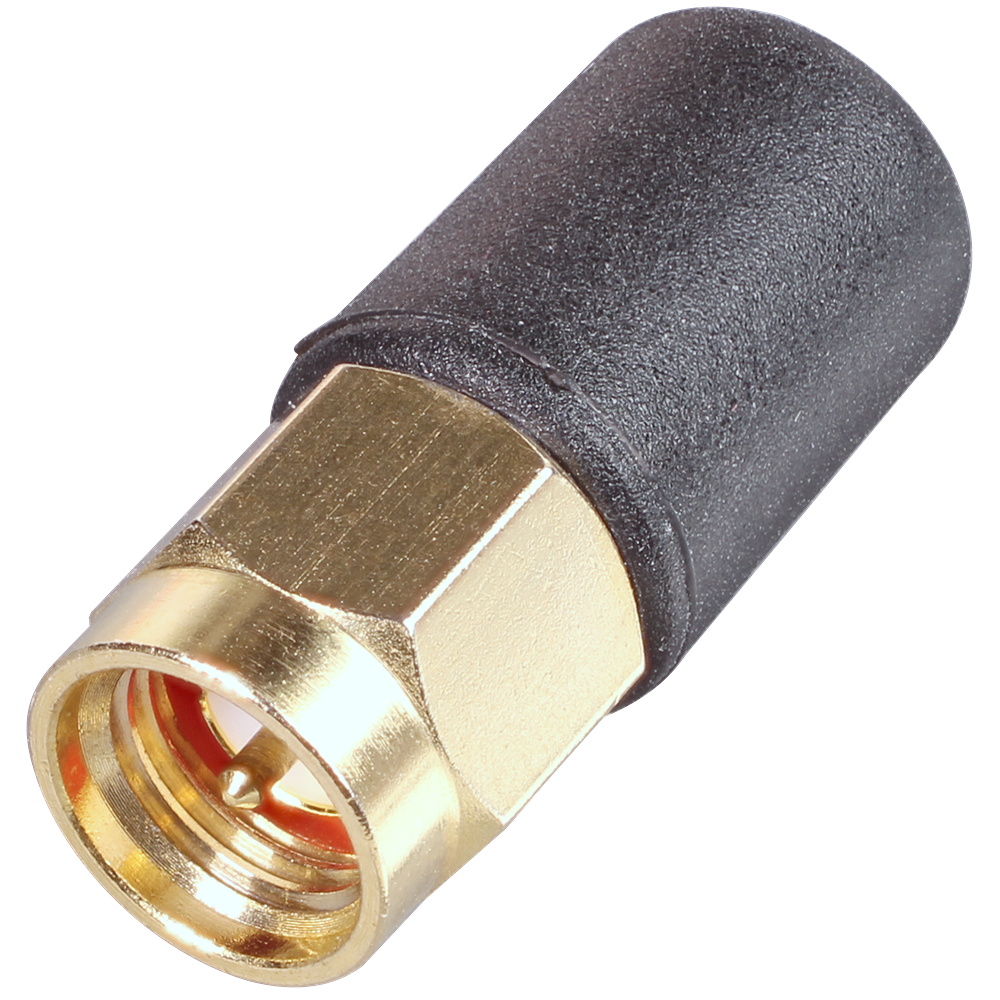

The 20 mm long straight whip (“rubber duck”) antenna performs at the edge of a ground plane for wide applicability. Additionally, the AC66508 supports IP68 ingress protection for wet and dusty applications when mounted. The AC66508 whip antennas are available with SMA plug (male) connector.

Categories: Connector Mount, External, LPWA/Sub-1 GHz ISM, Terminal Mount

Tags: Hinged, IEEE 802.11.ah, IP65, ISM, Linear Polarity, LoRaWAN, Omnidirectional, Plug (Male), SMA, Whip, Wi-SUN, WiFi HaLow, Wireless M-Bus

Features

Very high efficiency
IP68 ingress protection

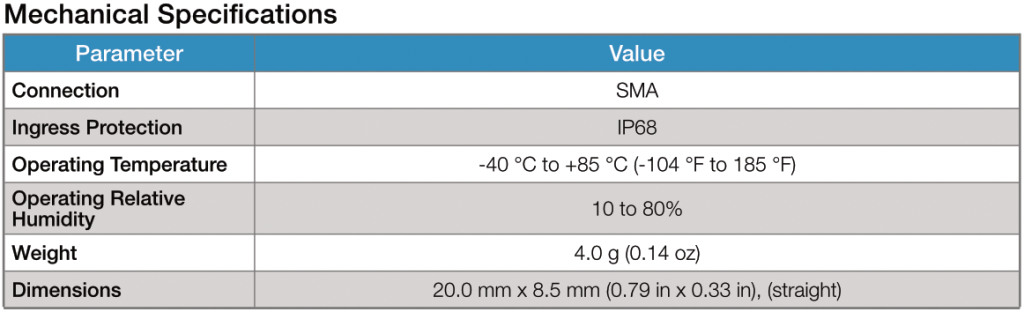

Dimensions: 20.0 mm x 8.5 mm

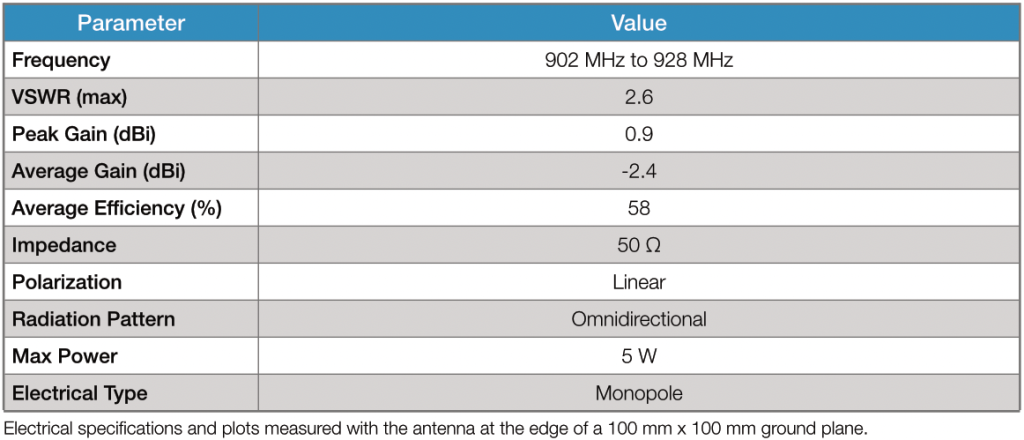

Performance at 902 MHz to 928 MHz
- VSWR: 2.6
- Peak Gain: 0.9 dBi
- Efficiency: 33%
SMA termination

Applications

Unlicensed low power wide area networking (LPWAN)
- LoRaWAN
- WiFi HaLow™
- Wireless M-Bus
- Wi-Sun®
Internet of Things (IoT) devices
Gateways/Routers
Industrial, scientific and medical (ISM) applications
