Cellular External Compact Dome Antenna
AC85002-NJ
The AC85002-NJ series N-connector dome antennas provide robust compact, outdoor, omnidirectional cellular antenna solutions for cellular IoT applications including Cat-M1/LTE-M and NB-IoT systems. Each antenna supports IP67 and IP65 ingress protection as well as IK-10 impact resistance, all under an attractive, UV-resistant, dome. The 82 mm x 40mm mounted size combines excellent antenna performance with a compact low-profile that fits in many applications from mobile/vehicular roof-mount to fixed vending machine use, and supports use on both metal enclosures or in free space including non-metallic enclosures.

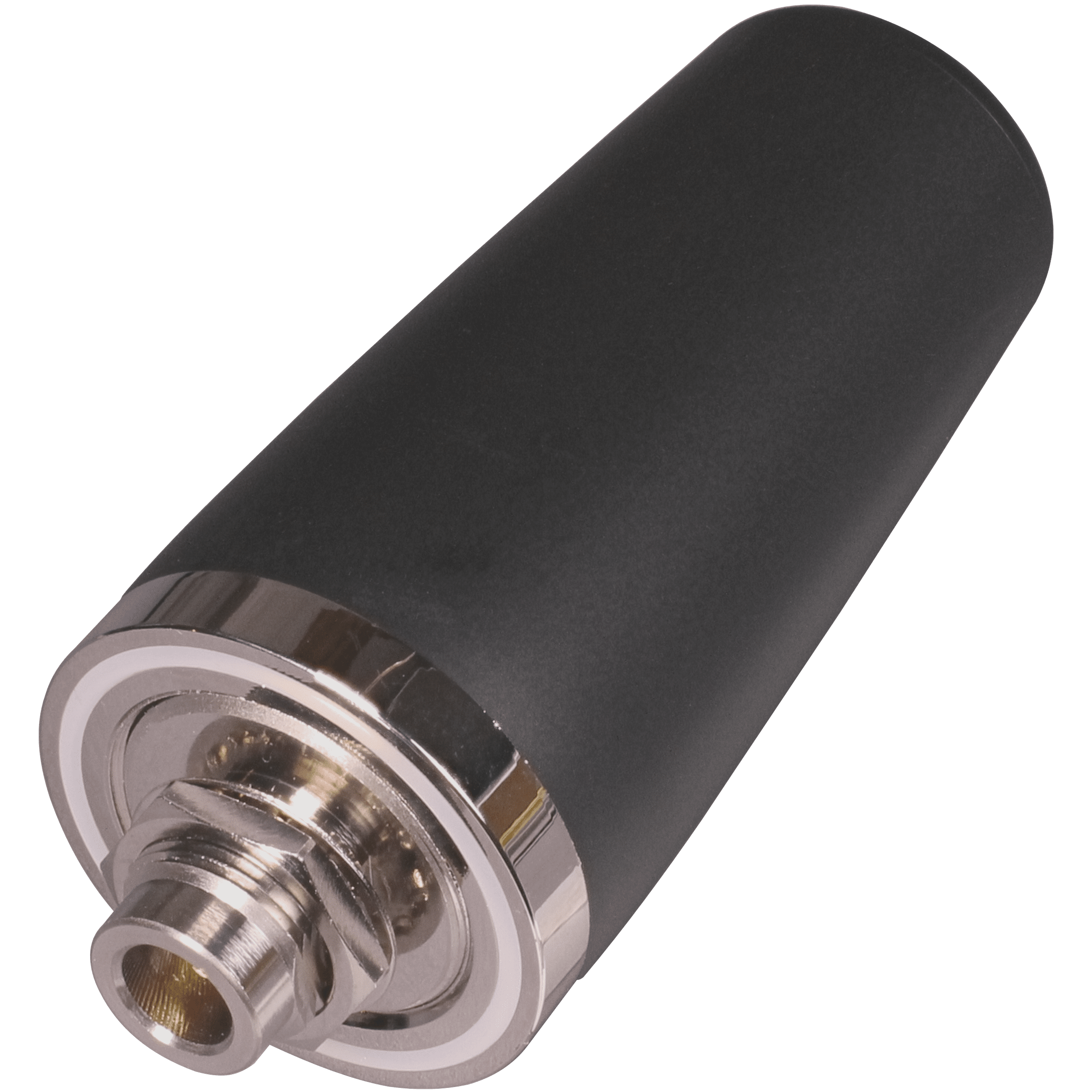

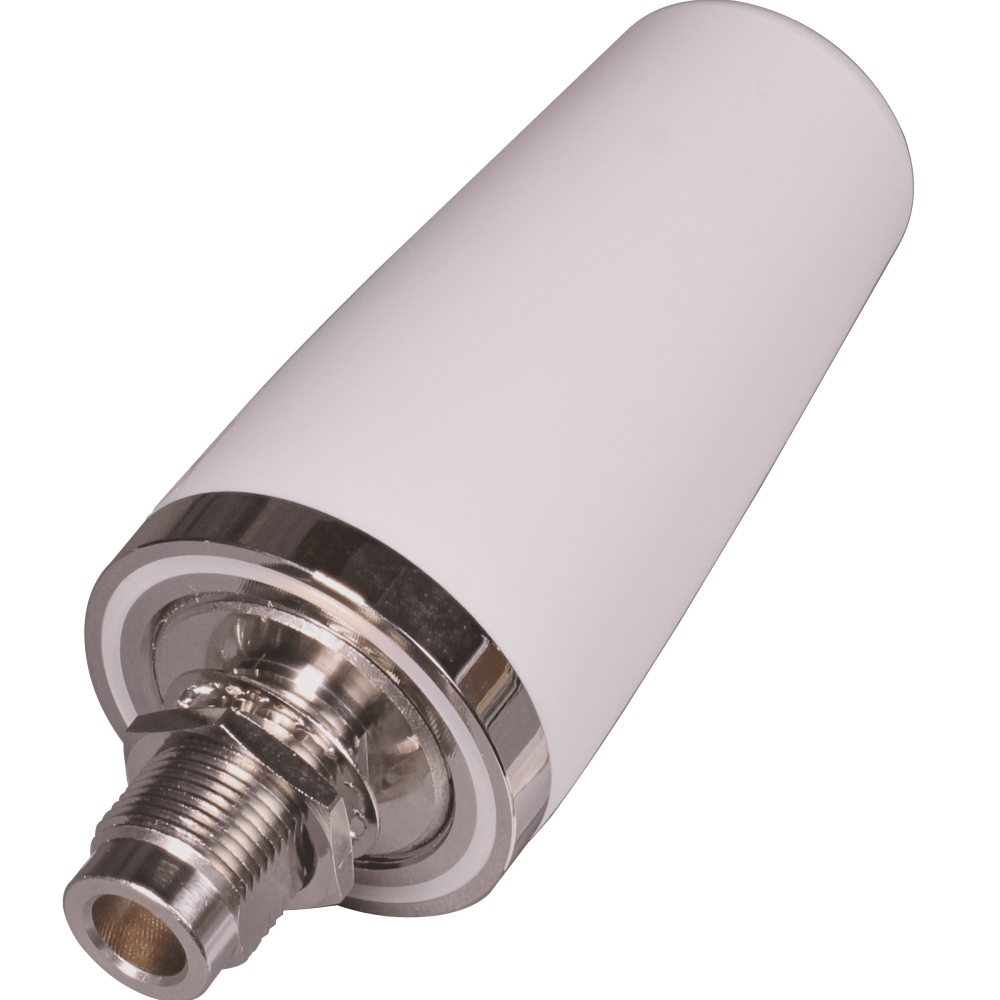

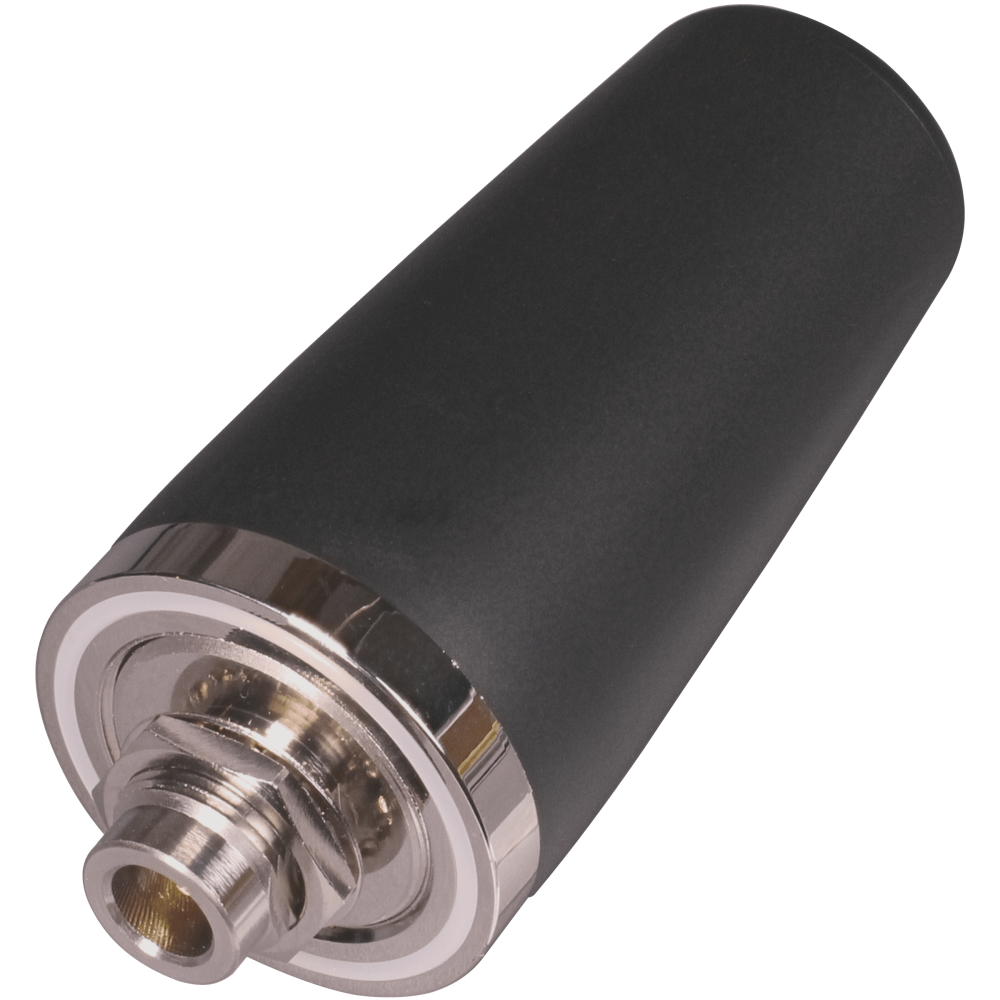

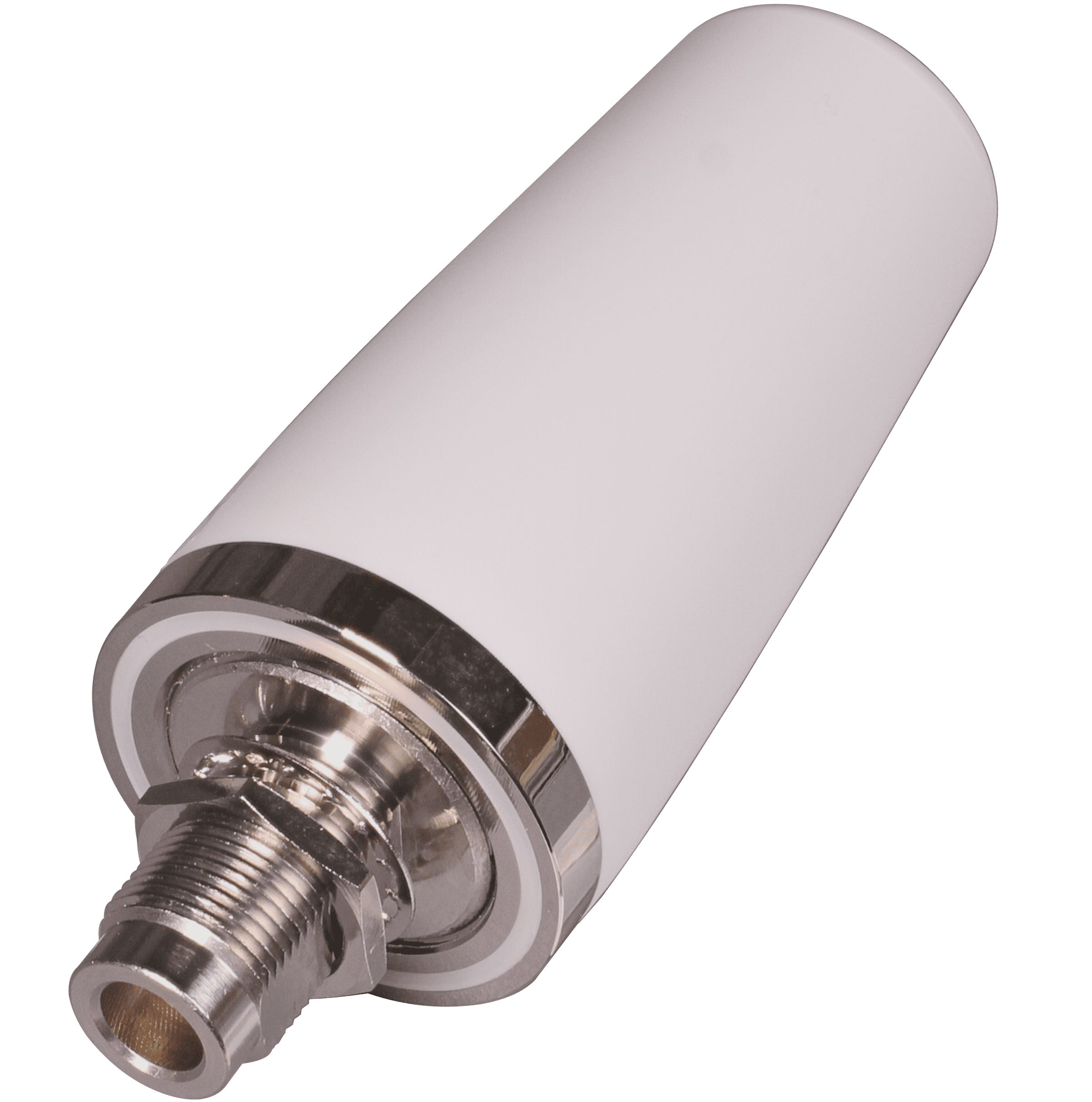

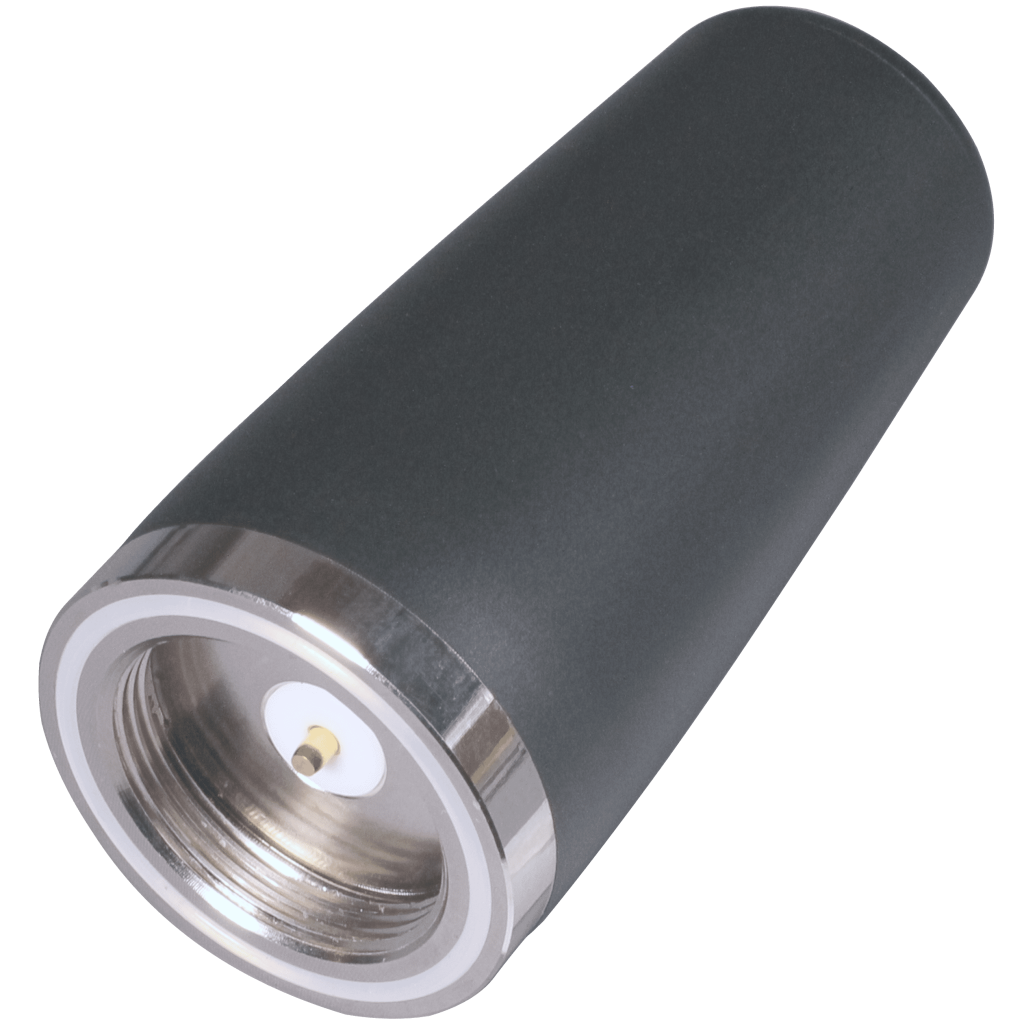

The AC85002-NJ compact dome antenna series is available in two colors, black and white, with fine matte finish, and two termination options: 24mm N-connector jack, and 14mm N-connector jack for thin/limited area mounts. Similar-performing NMO-terminated (AC85002-NM series) and cabled (AC87001 series) compact dome antennas are also available.
Categories: Cellular, External, Multiband Cellular, Panel Mount
Tags: 4G, 5G, 5G NR, Cat-M1, Cellular IoT, Dome, Ground Plane Independent, IP65, IP67, Jack (Female), Linear Polarity, LTE, LTE-M, N Connector, NB-IoT, Omnidirectional, Puck, Saltshaker, Shotglass
Features
- Very high efficiency
- IP67/IP65 ingress protection
- IK10 impact resistance
- O-ring mounting seal
- UV resistance
- Salt spray resistance
- Ground plane independent

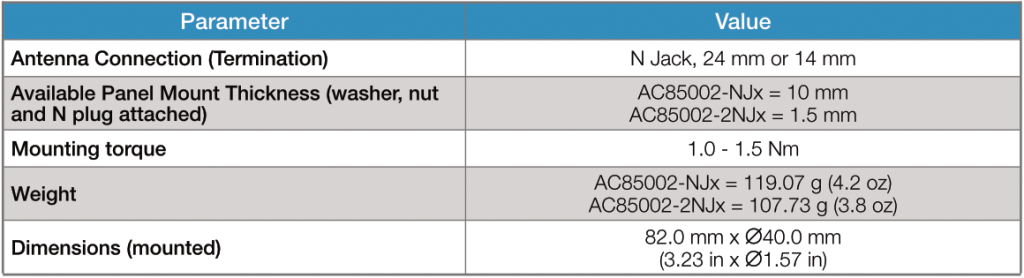

- Dimensions: 82 mm x 40 mm
- 24 mm and 14 mm N-connector termination options
Applications
- Worldwide 5G/4G/3G/2G cellular
- Cellular IoT
- Cat-M1/LTE-M
- NB-IoT
- Automotive/vehicular/OHV
- Outdoor CPE
- Fixed wireless
- Smart metering
- Internet of Things (IoT) devices
