External Panel-Mount Cellular 410/450MHz Cat-M1 Dome Antenna

External Panel-Mount Cellular 410/450MHz Cat-M1 Dome Antenna

AC94541-01N

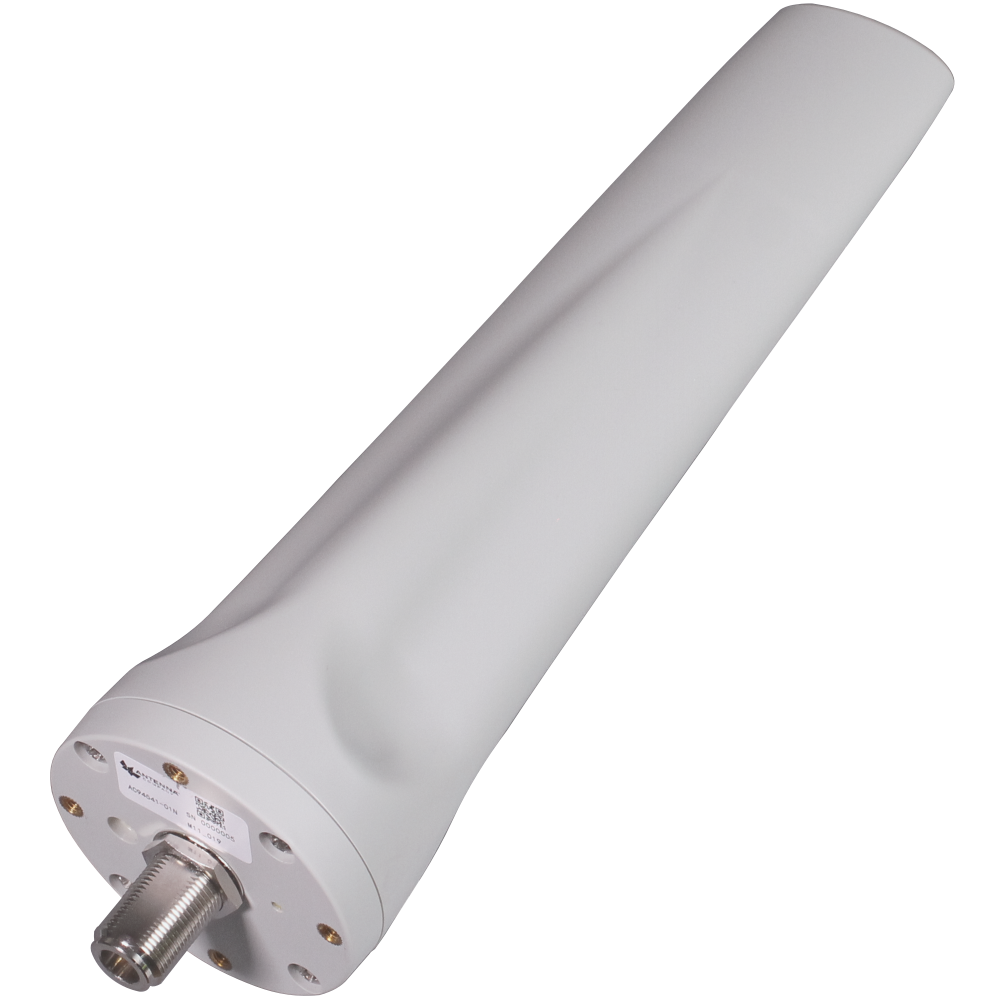

The AC94541-01N cellular 5G/4G/LTE panel-mount dome antenna combines excellent cellular and cellular IoT (Cat-M1/LTE-M, NB-IoT) performance in the 410 LTE, 450 LTE bands and bands from 600 MHz to 3800 MHz.

AC94541-01 antennas incorporate IP67 ingress protection, IK10 impact resistance and a UV stabilized dome, and have been tested for salt spray resistance and flammability rating, providing a high level of robustness for challenging applications and environments.

The AC94541-01N antenna is terminated with an N jack (female) connector.

Categories: Bracket Mount, Cellular, External, Multiband Cellular, Panel Mount
Tags: 4G, 5G, Cat-M1, Cellular IoT, Dome, Ground Plane Independent, IK10, IP-Rated, IP67, LTE, LTE 410, LTE 450, LTE-M, N Connector, NB-IoT, Omnidirectional, Plug (Male), Straight, UV Protection, Vertical Polarization, Whip

Features

  • Excellent multiband coverage:
    • 410-470 MHz
    • 600-960 MHz
    • 1700-3800 MHz
  • Suitable for mounting on metallic and non-metallic surfaces
  • Robust N jack (female) connector
  • Environmental performance
    • IP67 ingress protection
    • MIL-STD 810F/ASTM B117 salt spray testing
    • UL 94-HB flammability rating
    • IK10 impact resistance

Applications

  • Cellular IoT
    • Cat-M1/LTE-M
    • NB-IoT
  • Long-Reach Cellular
    • LTE 410
    • LTE 450
  • 900 MHz Cellular
  • Smart Utility Infrastructure

Ordering Information

Part Number
Description
Buy
AC94541-01N
Panel-mount antenna
AC94541-01NA
Panel-mount antenna with mounting accessories

Specifications and Additional Information

Electrical Specifications
Mechanical Specifications
