External Remote-Mount Cellular 410/450MHz Cat-M1 Dome Antenna

External Remote-Mount Cellular 410/450MHz Cat-M1 Dome Antenna

AC94541 Cabled

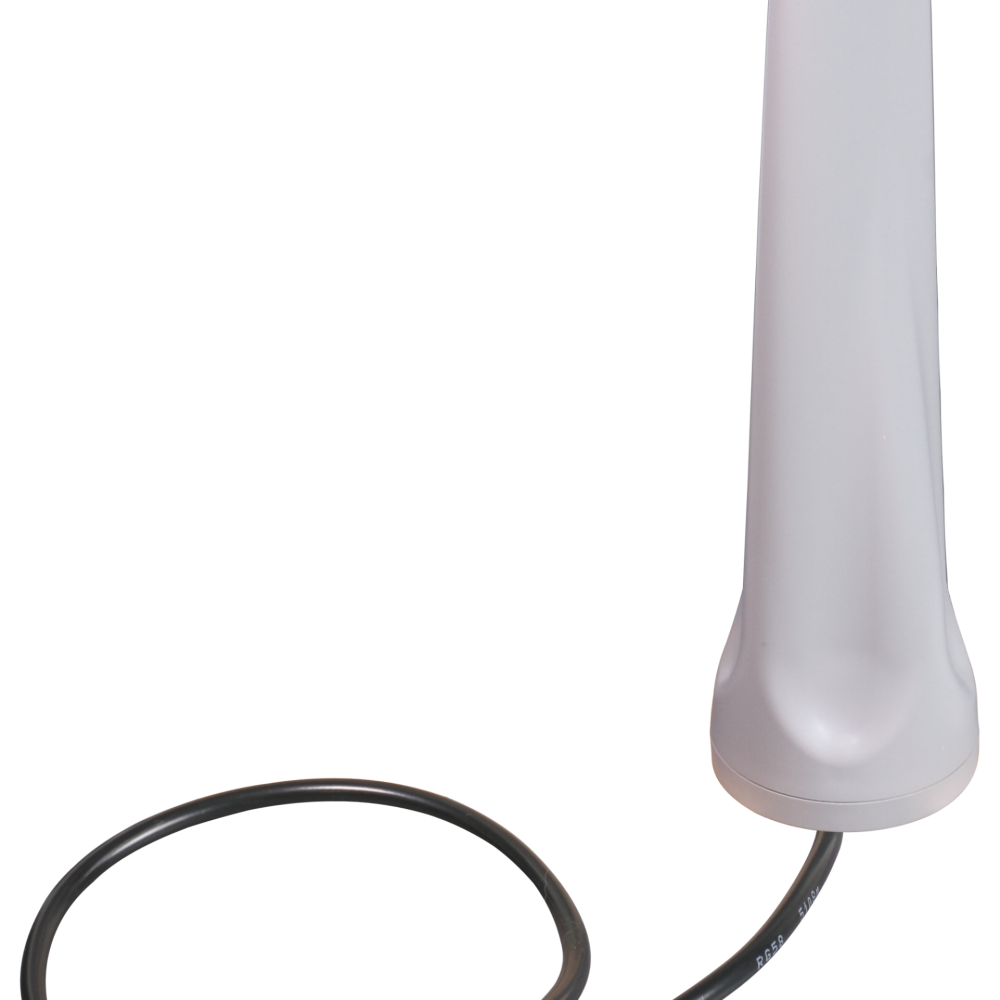

The AC94541 cellular 5G/4G/LTE cabled panel-mount/remote-mount dome antenna combines excellent cellular and cellular IoT (Cat-M1/LTE-M, NB-IoT) performance in the 410 LTE, 450 LTE bands and bands from 600 MHz to 3800 MHz.

AC94541 cabled antennas incorporate IP67 ingress protection, IK10 impact resistance and a UV stabilized dome, and have been tested for salt spray resistance and flammability rating, providing a high level of robustness for challenging applications and environments.

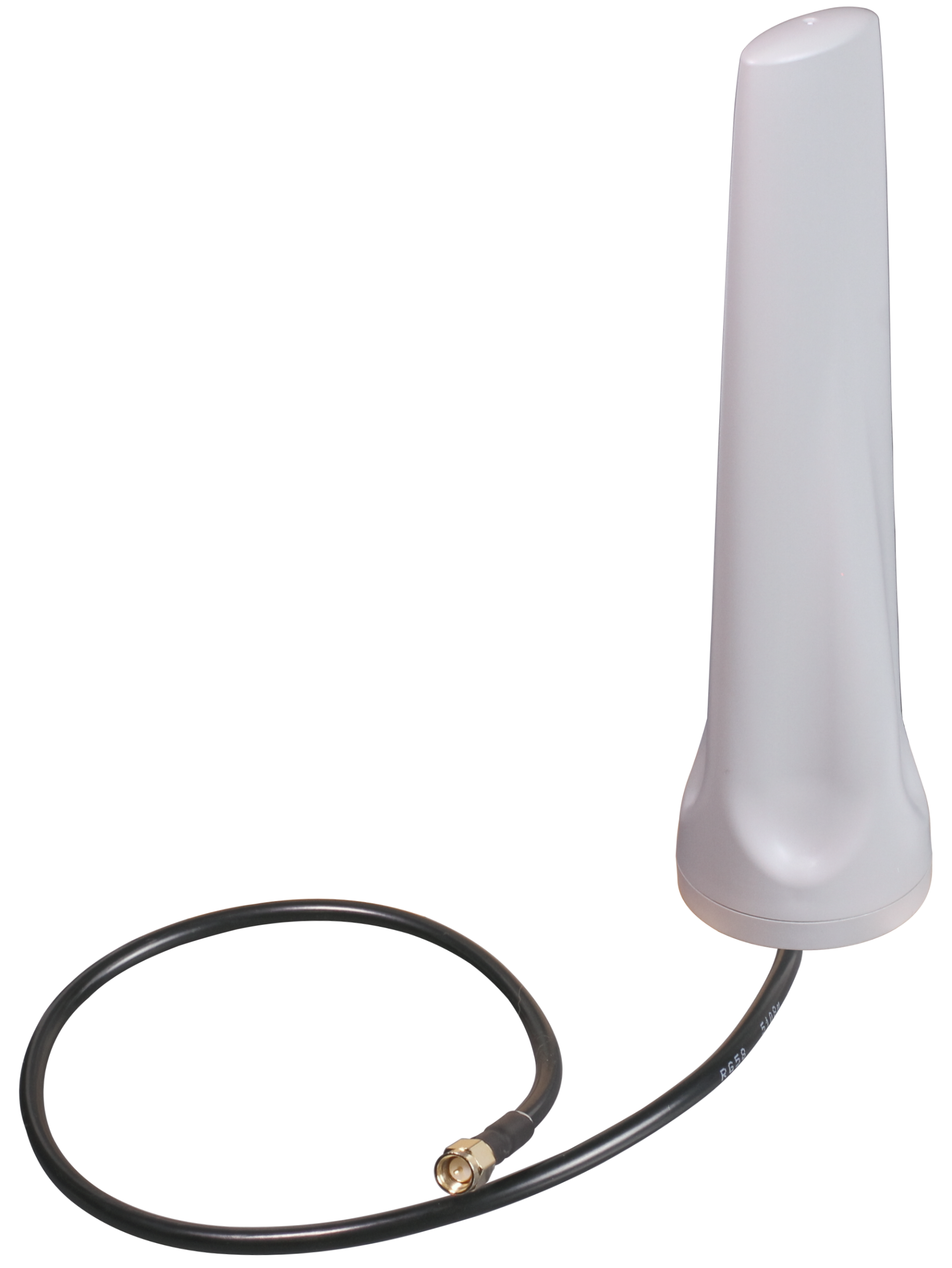

The AC94541 cabled antenna is terminated with an SMA plug (male) connector and is available in multiple cable lengths.

Categories: Bracket Mount, Cellular, External, Multiband Cellular, Panel Mount, Remote
Tags: 4G, 5G, Cat-M1, Cellular IoT, Dome, Ground Plane Independent, IK10, IP-Rated, IP67, LTE, LTE 410, LTE 450, LTE-M, Mounting Accessories, NB-IoT, Omnidirectional, Plug (Male), SMA, Straight, UV Protection, Vertical Polarization, Whip

Features

  • Excellent multiband coverage:
    • 410-470 MHz
    • 600-960 MHz
    • 1700-3800 MHz
  • Suitable for mounting on metallic and non-metallic surfaces
  • Multiple cable length options
  • Environmental performance
    • IP67 ingress protection
    • MIL-STD 810F/ASTM B117 salt spray testing
    • UL 94-HB flammability rating
    • IK10 impact resistance

Applications

  • Cellular IoT
    • Cat-M1/LTE-M
    • NB-IoT
  • Long-Reach Cellular
    • LTE 410
    • LTE 450
  • 900 MHz Cellular
  • Smart Utility Infrastructure

Ordering Information

Part Number
Description
Buy
AC94541-060
Antenna with 0.60 m (23.62 in) cable
AC94541-200
Antenna with 2.0 m (78.74 in) cable
AC94541-500
Antenna with 5.0 m (196.85 in) cable
AC94541-060A
Antenna with 0.60 m (23.62 in) cable and mounting accessory pack
AC94541-200A
Antenna with 2.0 m (78.74 in) cable and mounting accessory pack
AC94541-500A
Antenna with 5.0 m (196.85 in) cable and mounting accessory pack

Specifications and Additional Information

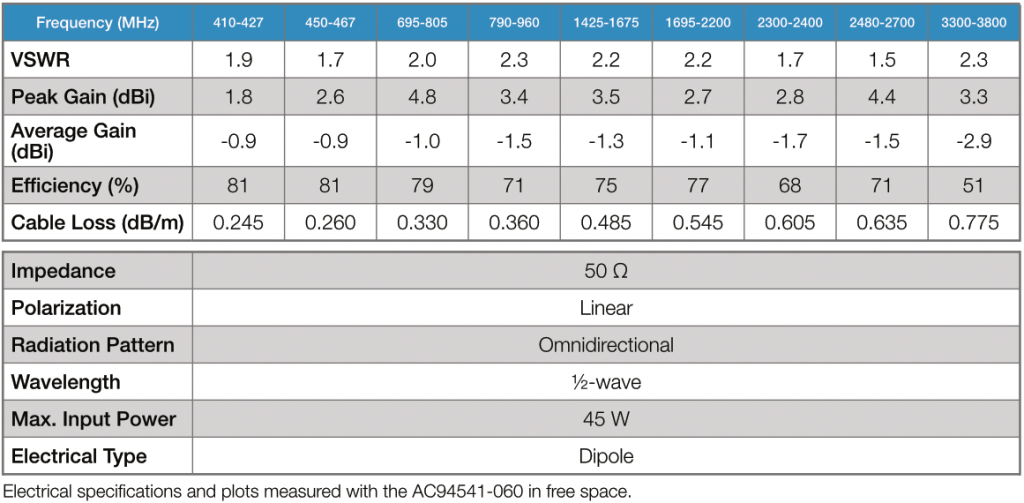

Electrical Specifications

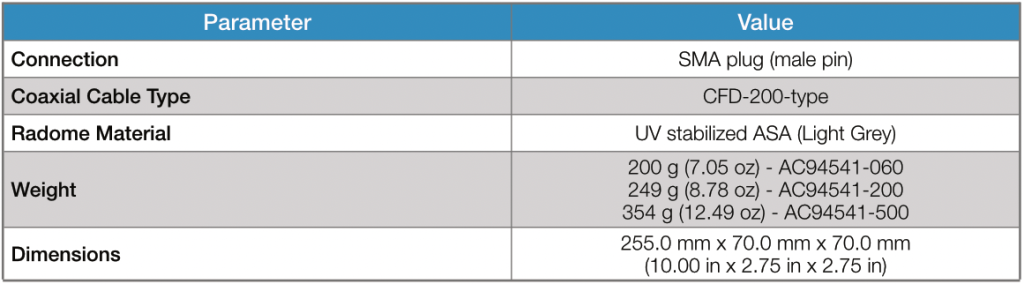

Mechanical Specifications

Downloads
