Wideband Cellular External Compact Dome Antenna
The AC85003 NMO cellular compact dome antennas provide robust, compact, outdoor, omnidirectional antenna solutions for 5G/4G/LTE
and cellular IoT applications including Cat-M1/LTE-M and NB-IoT systems from 617 MHz to 5925 MHz. Each antenna supports IP67 and IP65 ingress
protection as well as IK-10 impact resistance, all under an attractive, UV-resistant, dome. The 82 mm x 40 mm mounted size combines excellent antenna performance with a compact low-profile that fits in many applications from mobile/vehicular roof-mount to fixed vending machine use, supports use on both metallic and non-metallic enclosures.

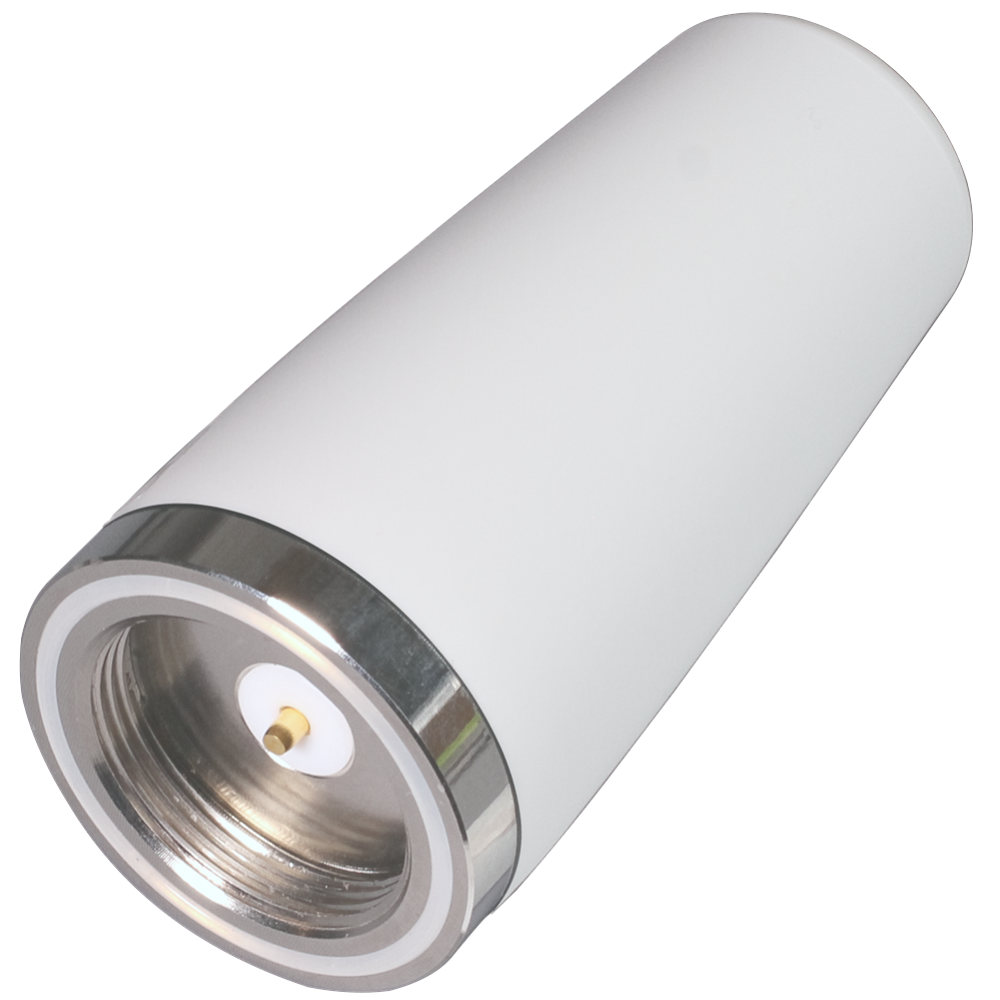

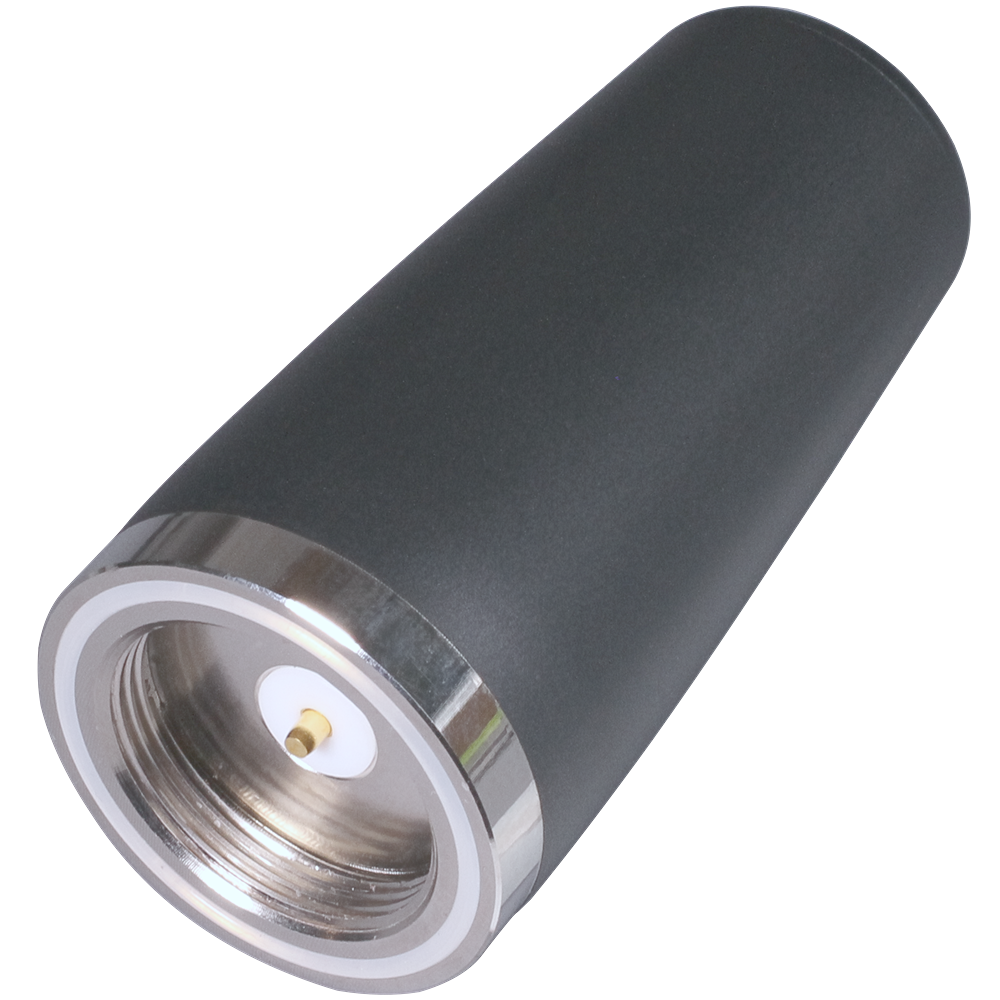

The AC85003 NMO compact dome antenna series is available in two colors, black and white, with fine matte finish. Similar-performing N-connector (AC85003 NJ type) and cabled (AC87002 type) compact dome antennas are also available.
Features
- 617 MHz to 6000 MHz Wideband Cellular
- Very high efficiency
- IP67/IP65 ingress protection
- IK10 impact resistance
- O-ring mounting seal
- UV resistance
- Dimensions: 82 mm x 40 mm
- Ground plane independenc
- NMO termination
Applications
- 5G/4G/LTE cellular
- Cellular IoT
- Cat-M1/LTE-M
- NB-IoT
- Automotive/vehicular/OHV
- Outdoor CPE
- Fixed wireless
- Smart metering
- Substation monitoring
- Asset management
- Internet of Things (IoT) devices
Ordering Information
Part Number
Description
Buy

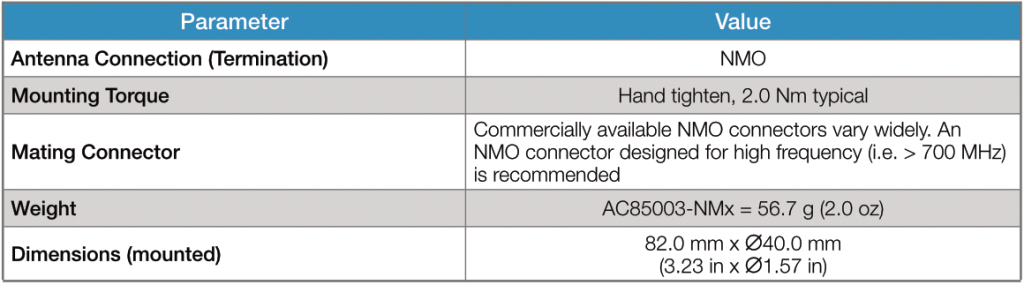

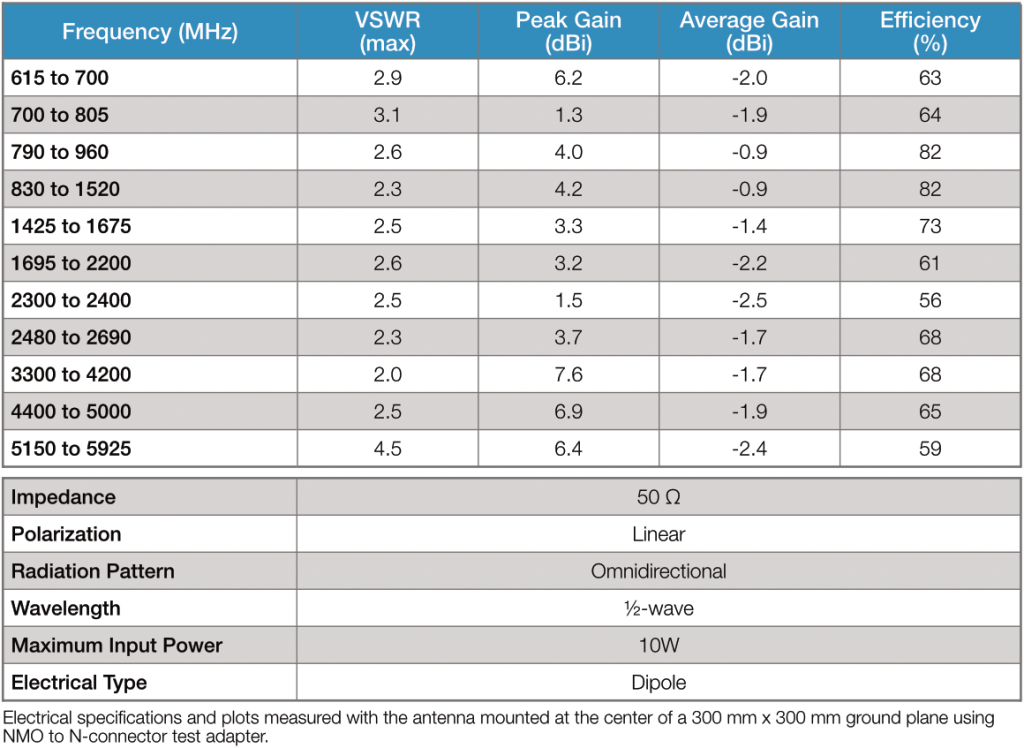

Specifications and Additional Information
