Cellular External Compact Dome Antenna
AC87001
The AC87001 series cabled SMA-connector dome antennas provide robust compact, outdoor, omnidirectional cellular antenna solutions for cellular IoT applications including Cat-M1/LTE-M and NB-IoT systems. Each antenna supports IP67 and IP65 ingress protection as well as IK-10 impact resistance, all under an attractive, UV-resistant, dome. The 82 mm x 40mm mounted size combines excellent antenna performance with a compact low-profile that fits in many applications from mobile/vehicular roof-mount to fixed vending machine use, and supports use on both metal enclosures or in free space including non-metallic enclosures.

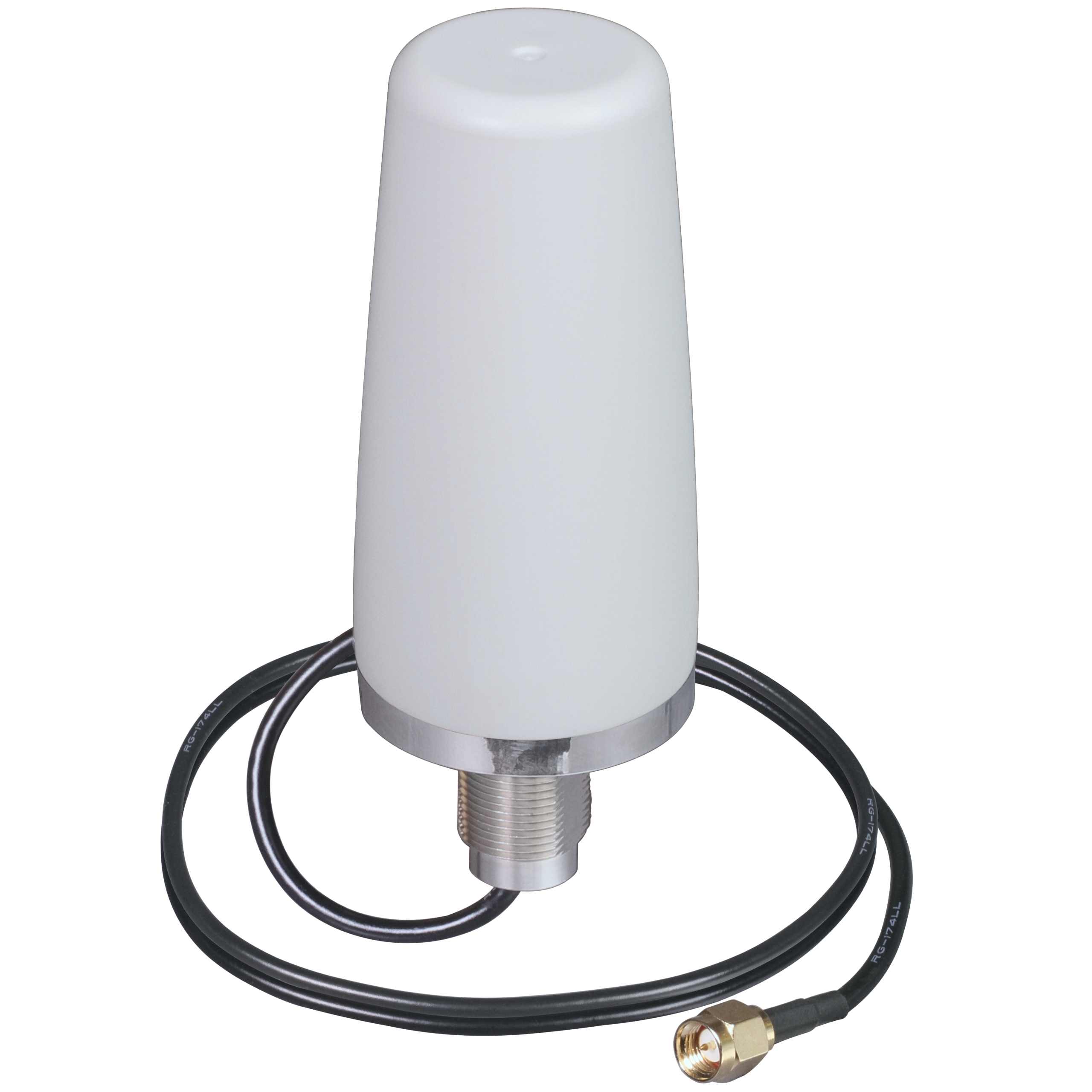

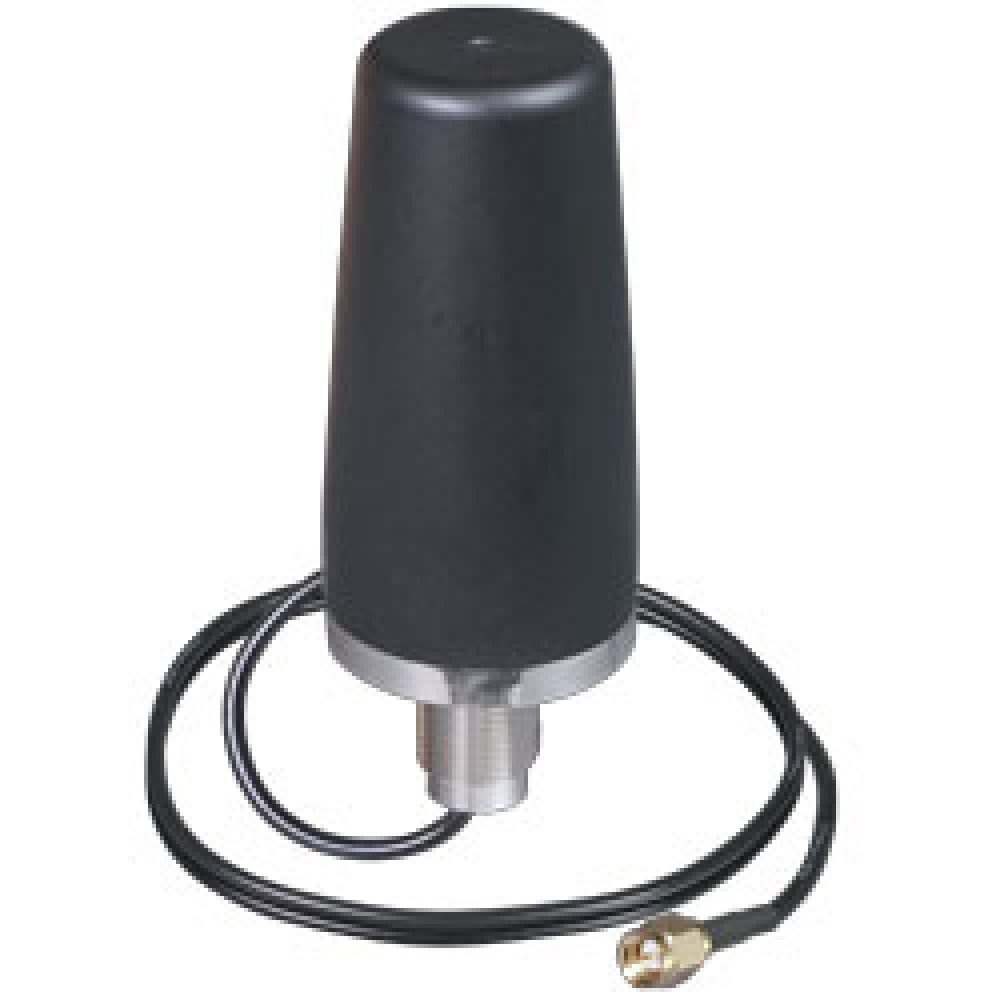

The AC87001 compact dome antenna series is available in two colors, black and white, with fine matte finish and two cable lengths, 1m and 2m. Similar-performing N-jack-terminated (AC85002-NJ series) and NMO (AC85002-NM series) compact dome antennas are also available.
Categories: Cellular, External, Multiband Cellular, Panel Mount, Remote
Tags: 4G, 5G, 5G NR, Bracket Mount, Cabled, Cat-M1, Cellular IoT, Dome, Ground Plane Independent, IP65, IP67, Linear Polarity, LTE, LTE-M, NB-IoT, Omnidirectional, Plug (Male), Puck, Saltshaker, Shot glass, SMA
Features
- Very high efficiency
- IP67/IP65 ingress protection
- IK10 impact resistance
- O-ring mounting seal
- UV resistance
- Ground plane independence
- Dimensions: 82 mm x 40 mm
- Multiple cable options: 1m, 2m
Applications
- Worldwide 5G/4G/3G/2G cellular
- Cellular IoT
- Cat-M1/LTE-M
- NB-IoT
- Automotive/vehicular/OHV
- Outdoor CPE
- Fixed wireless
- Smart metering
- Internet of Things (IoT) devices
Ordering Information
Part Number
Description
Buy
Specifications and Additional Information
Electrical Specifications

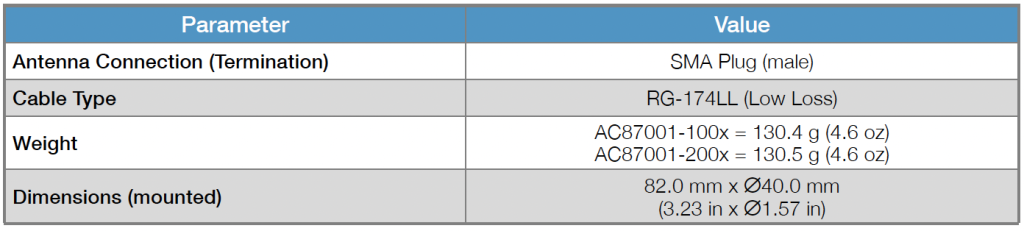

Mechanical Specifications
