Cellular 450MHz/5G/4G/LTE External Cabled Bar-Style Antenna

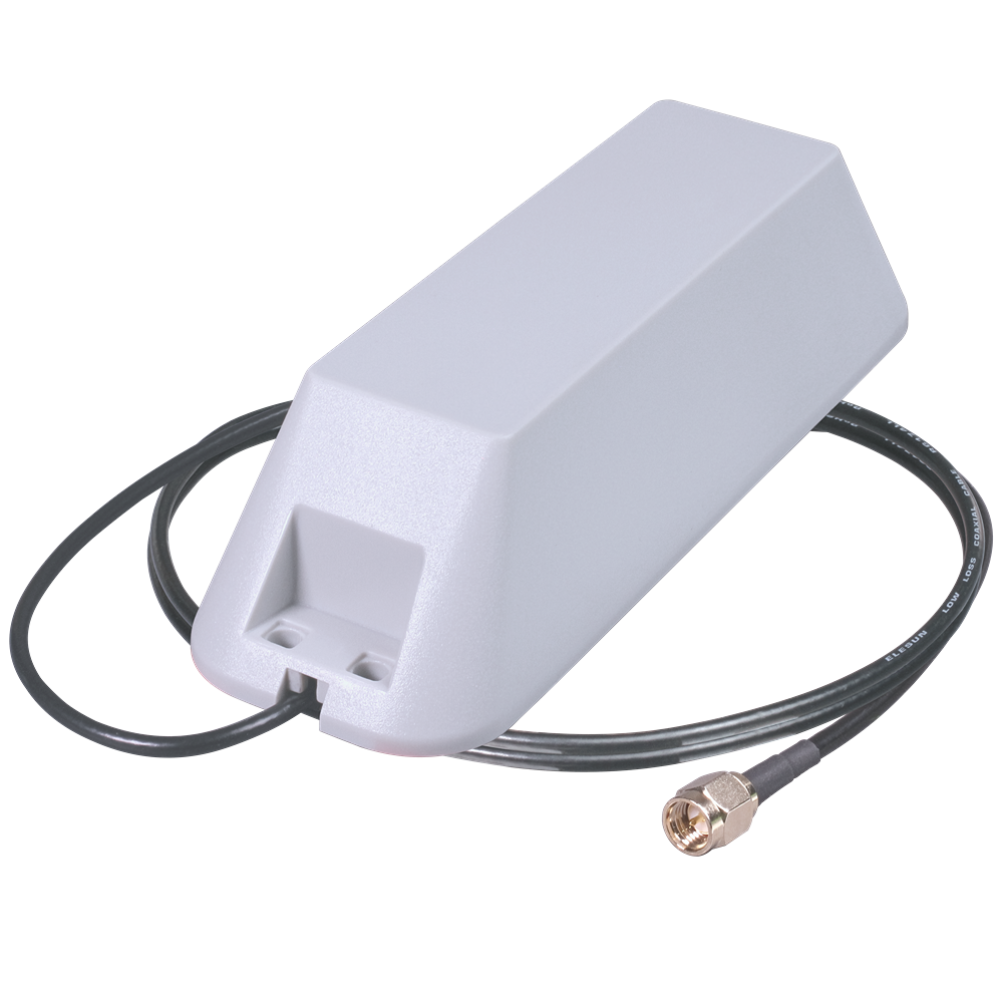

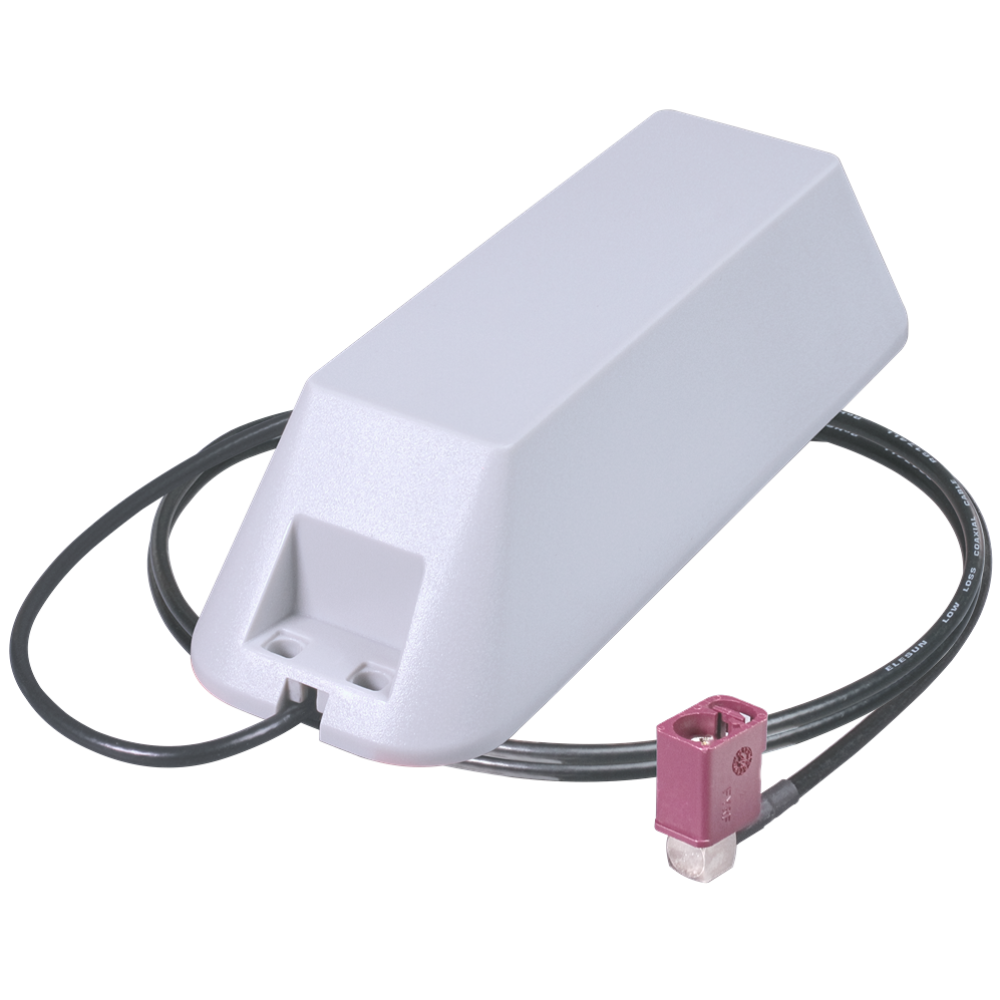

The AC94504 is a cellular bar-type antenna engineered for smart metering and industrial IoT applications that rely on public 4G/5G LTE or private 450 MHz LTE networks. Its high performance ensures reliable connectivity in the most demanding environments, whether deep within building infrastructure or in remote areas with limited coverage. By delivering strong signal reception, the AC94504 improves connectivity and reduces the risk of offline systems. The result is faster deployments, fewer field interventions, and a significantly lower total cost of ownership.

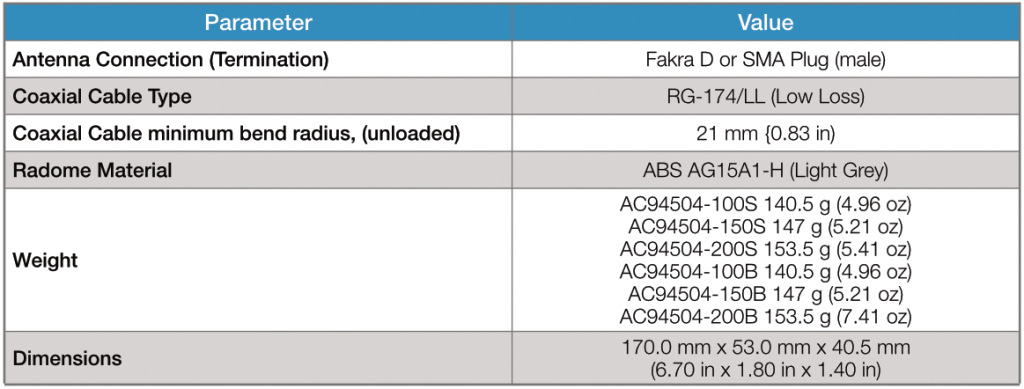

With its low-profile housing (40.5 mm) and compact footprint (53 × 170 mm), the AC94504 fits easily into electricity cabinets and tight enclosures. Its robust design offers flexible cable routing—either straight or perpendicular to the antenna base—helping to eliminate cable exposure. The peel-and-stick adhesive backing enables mounting in any desired orientation. Various cable lengths and termination options are available (see Ordering Information).
