Cellular External Adhesive Bar-Style Antenna

Cellular External Adhesive Bar-Style Antenna

AC97002

The Antenna Company AC97002 cellular 5G/4G/LTE bar antenna provides an external mount antenna solution for common cellular bands, including those for CatM1/LTE-M and NB-IoT cellular IoT applications.

The peel-and-stick adhesive backing makes the AC97002 antenna easy to mount on enclosures in any desired orientation. Mounting holes are provided for optional screw mounting.

Two versions for the AC97002 are offered to support various installations. The detachable cable version simplifies cabinet installation, requiring only a “cable-sized” hole for installation. The fixed cable version is IP67-rated for ingress protection. Various cable length options, cable types and connector types are available (See Ordering Information).

Categories: Multiband Cellular, Cellular, External, Adhesive Mount, Screw Mount
Tags: 170x45x36mm, 4G, 5G, 5G NR, 868 MHz, 915 MHz, ABS, Bar, Cat-M1, Cellular IoT, FAKRA, IP67, Linear Polarization, Low profile, LTE, LTE-M, NB-IoT, Omnidirectional, Plug (Male), RG174, RG178, SMA

Features

  • Low profile compact antenna
    • Dimensions: 170 mm x 45 mm x 35.5 mm
  • Excellent multiband coverage including 698 to 960 MHz and 1700 to 2700 MHz
  • Suitable for mounting on metallic and non-metallic surfaces
  • SMA and Fakra D termination options
  • RG174 and RG178 cable type options
  • Multiple cable lengths
  • Detachable cable version simplifies installation
  • IP67 ingress protection (fixed cable versions)

Applications

  • Worldwide 5G/4G/3G/2G cellular
  • Cellular IoT
    • Cat-M1/LTE-M
    • NB-IoT
  • Smart metering
  • Smart utility infrastructure
  • Asset management
  • Tracking devices
  • Vending machines

Ordering Information

Part Number
Description
Buy

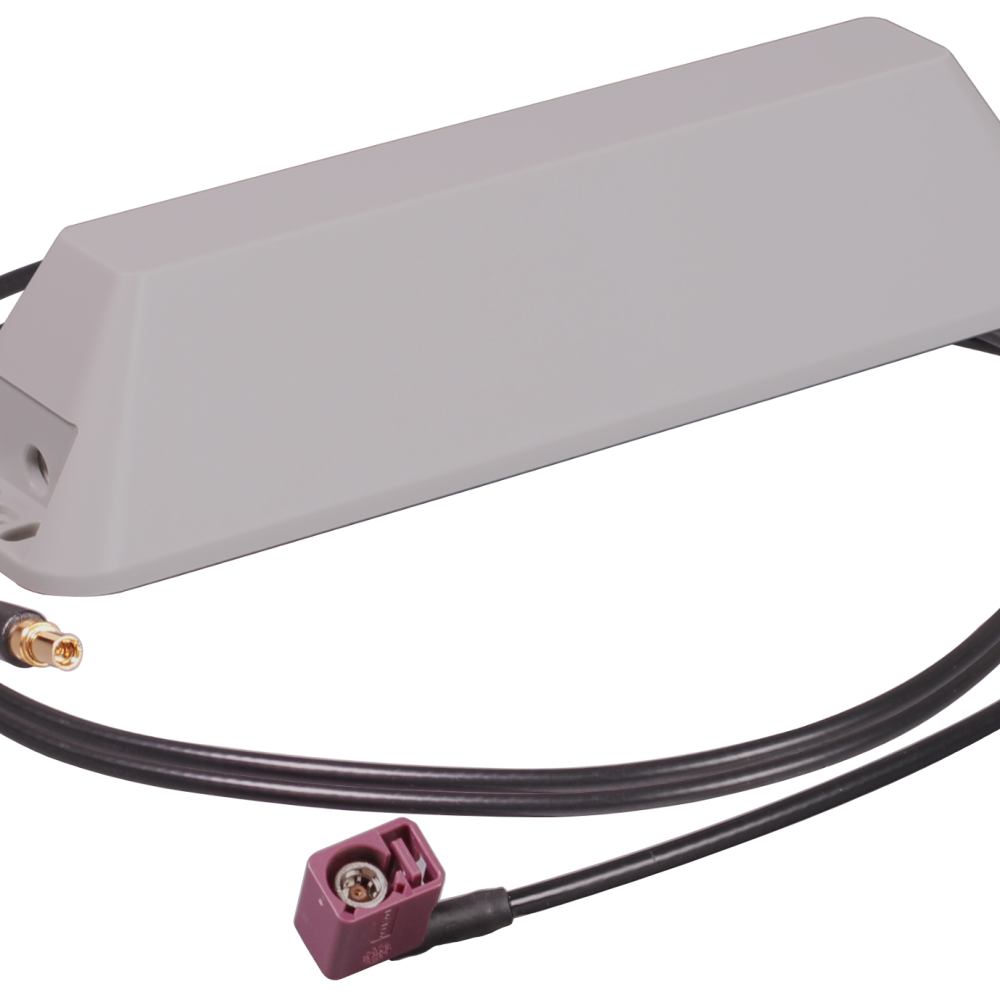

AC97002-100
Cellular Antenna with SMB* to Fakra D detachable 1 m (39.4 in) RG174LL cable
AC97002-150
Cellular Antenna with SMB* to Fakra D detachable 1.5 m (59.0 in) RG174LL cable
AC97002-200
Cellular Antenna with SMB* to Fakra D detachable 2 m (78.8 in) RG174LL cable
AC97002-100B
Cellular Antenna with fixed 1.0 m (39.4 in) RG174 cable with Fakra D termination
AC97002-100B

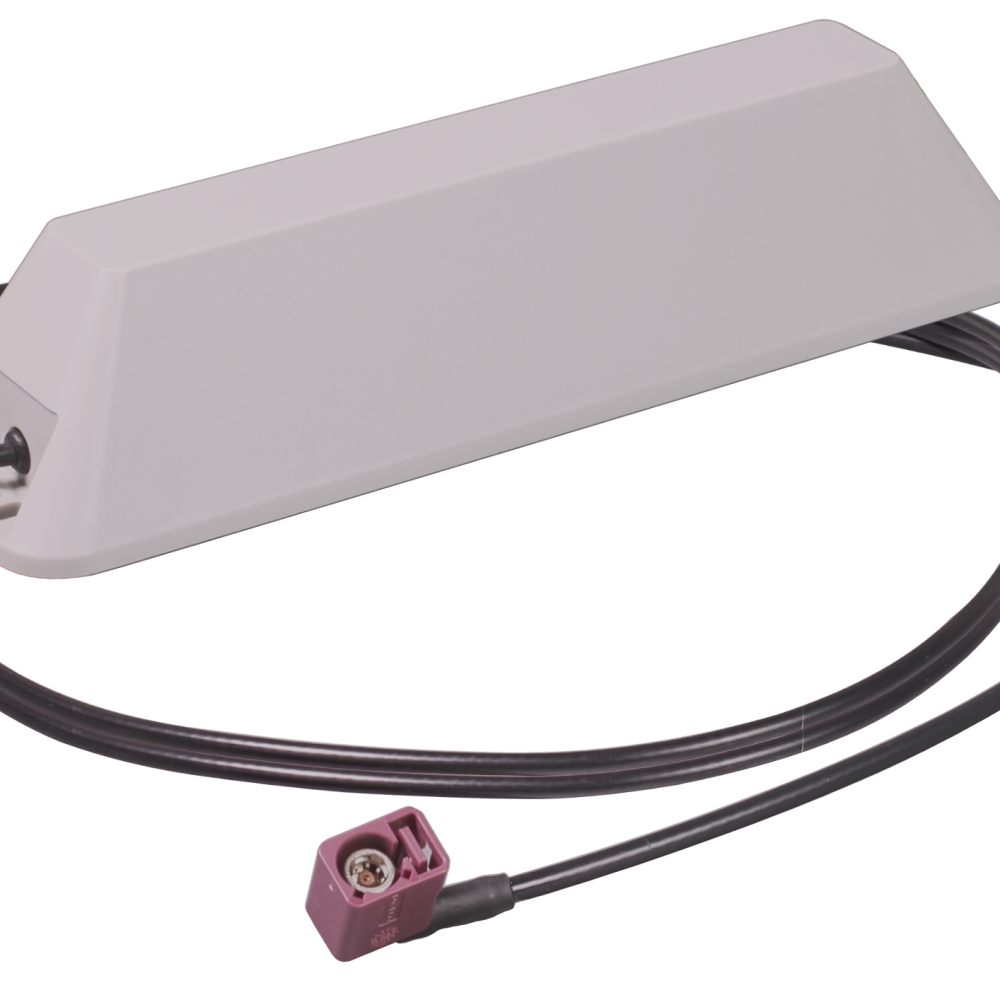

AC97002-150B
Cellular Antenna with fixed 1.5 m (59.0 in) RG174 cable with Fakra D termination
AC97002-150B
AC97002-200B
Cellular Antenna with fixed 2.0 m (78.8 in) RG174 cable with Fakra D termination
AC97002-200B
AC97002-300B
Cellular Antenna with fixed 3.0m (118.1 in) RG174 cable with Fakra D termination
AC97002-300B
AC97002-100S
Cellular Antenna with fixed 1.0 m (39.4 in) RG174 cable with SMA termination
AC97002-100S
AC97002-150S
Cellular Antenna with fixed 1.5 m (59.0 in) RG174 cable with SMA termination
AC97002-150S
AC97002-200S
Cellular Antenna with fixed 2.0 m (78.8 in) RG174 cable with SMA termination
AC97002-200S
AC97002-300S
Cellular Antenna with fixed 3.0m (118.1 in) RG174 cable with SMA termination
AC97002-300S
AC97002-100BT
Cellular Antenna with fixed 1.0 m (39.4 in) RG178 cable with Fakra D termination
AC97002-100BT
AC97002-150BT
Cellular Antenna with fixed 1.5 m (59.0 in) RG178 cable with Fakra D termination
AC97002-150BT
AC97002-200BT
Cellular Antenna with fixed 2.0 m (78.8 in) RG178 cable with Fakra D termination
AC97002-200BT
AC97002-300BT
Cellular Antenna with fixed 3.0m (118.1 in) RG178 cable with Fakra D termination
AC97002-300BT
AC97002-100ST
Cellular Antenna with fixed 1.0 m (39.4 in) RG178 cable with SMA termination
AC97002-100ST
AC97002-150ST
Cellular Antenna with fixed 1.5 m (59.0 in) RG178 cable with SMA termination
AC97002-150ST
AC97002-200ST
Cellular Antenna with fixed 2.0 m (78.8 in) RG178 cable with SMA termination
AC97002-200ST
AC97002-300ST
Cellular Antenna with fixed 3.0m (118.1 in) RG178 cable with SMA termination
AC97002-300ST

* SMB connector is specially designed to mate with the provided SMB to Fakra D cable.
