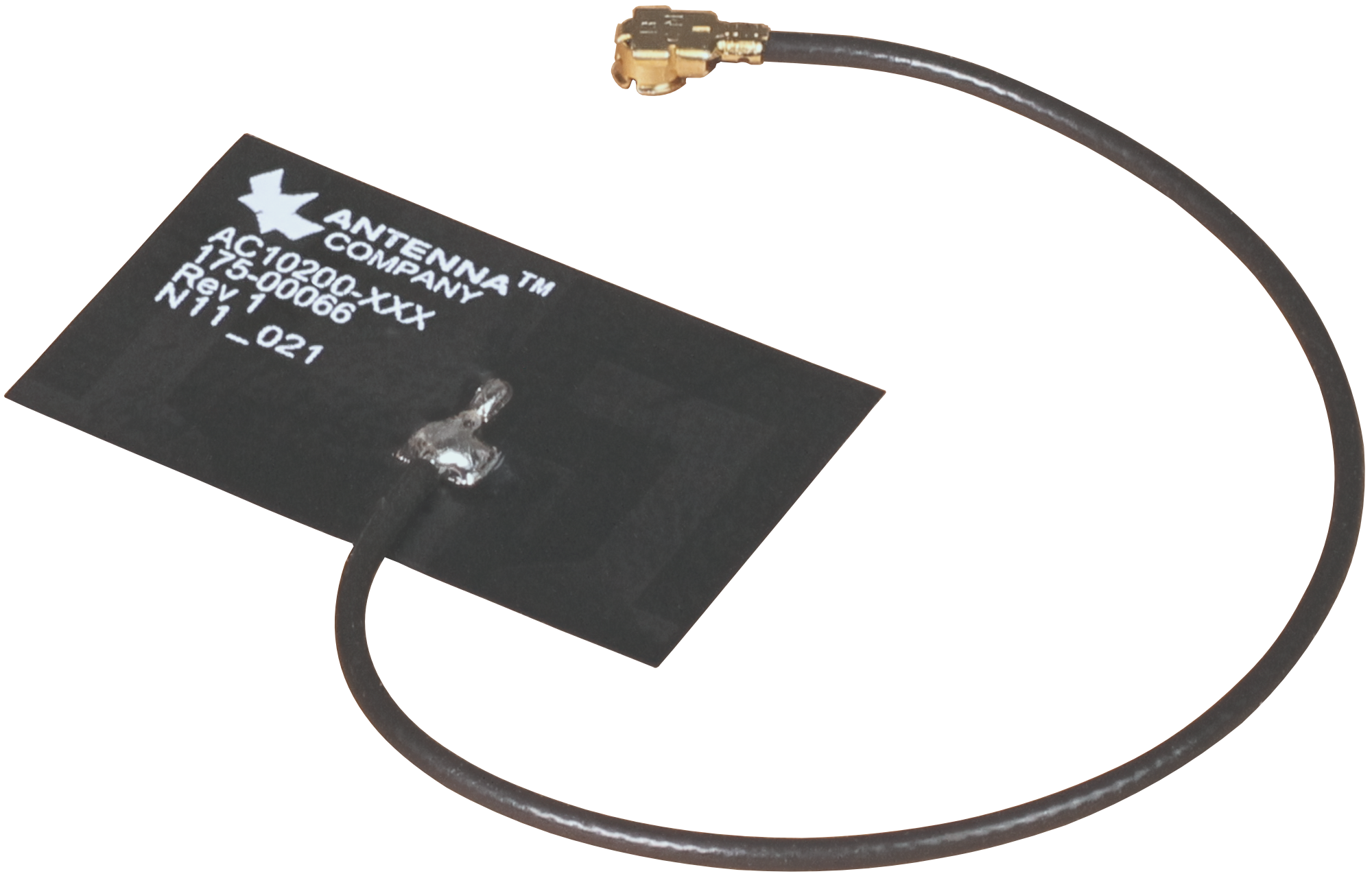

2.4 GHz Bluetooth/BLE/ISM FPC Antenna

AC10200

The AC10200 flexible printed circuit (FPC) antenna supports the 2.4 GHz industrial scientific and medical (ISM) band (2400-2500MHz), serving a multitude of Internet of Things (IoT) applications.

The flexibility and peel-and-stick adhesive backing make the AC10200 antenna easy to mount in unique and custom enclosures. Connection is made to the radio via a 1.13 mm coaxial cable terminated in a U.FL-type plug connector. Various cable length options are available (See Ordering Information).

Categories: 2.4 GHz ISM, Adhesive Mount, Embedded/Internal, Single Band WiFi, Wi-Fi / Bluetooth

Tags: 2.4 GHz Band, 26.1×16.0x0.27mm, 802.11b, 802.11g, BLE, Bluetooth, FPC, IEEE 802.15.4, ISM, MHF1-Type, Omnidirectional, Plug, U.FL-Type, Wi-Fi, WLAN, ZigBee

Features

Very high efficiency
Ground plane independent

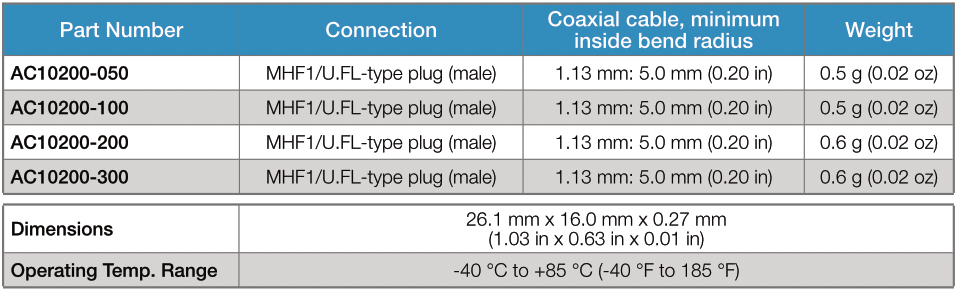

Dimensions 26.1 mm x 16.0 mm x 0.27 mm

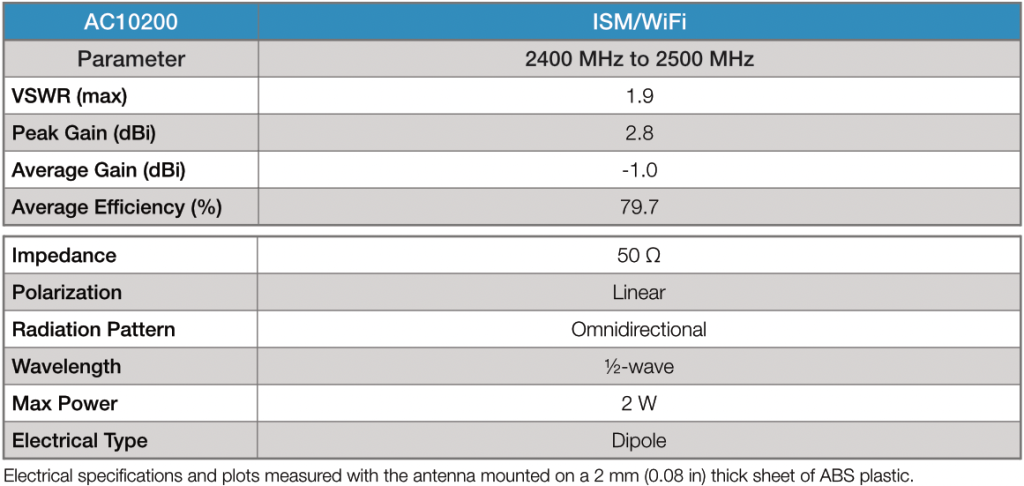

Performance at 2.4GHz to 2.5GHz
- VSWR: 1.9
- Peak Gain: 2.8 dBi
- Efficiency: 83%
MHF1/U.FL compatible plug termination
