2.4 GHz 20mm Straight Whip Antenna
AC16504
The Antenna Company AC16504 straight whip antennas provide a very compact omnidirectional 2.4 GHz antenna solution for all ISM applications including Bluetooth®, BLE and ZigBee®. The antenna may be positioned at 0 (straight), 45 or 90 degrees to suit many applications.

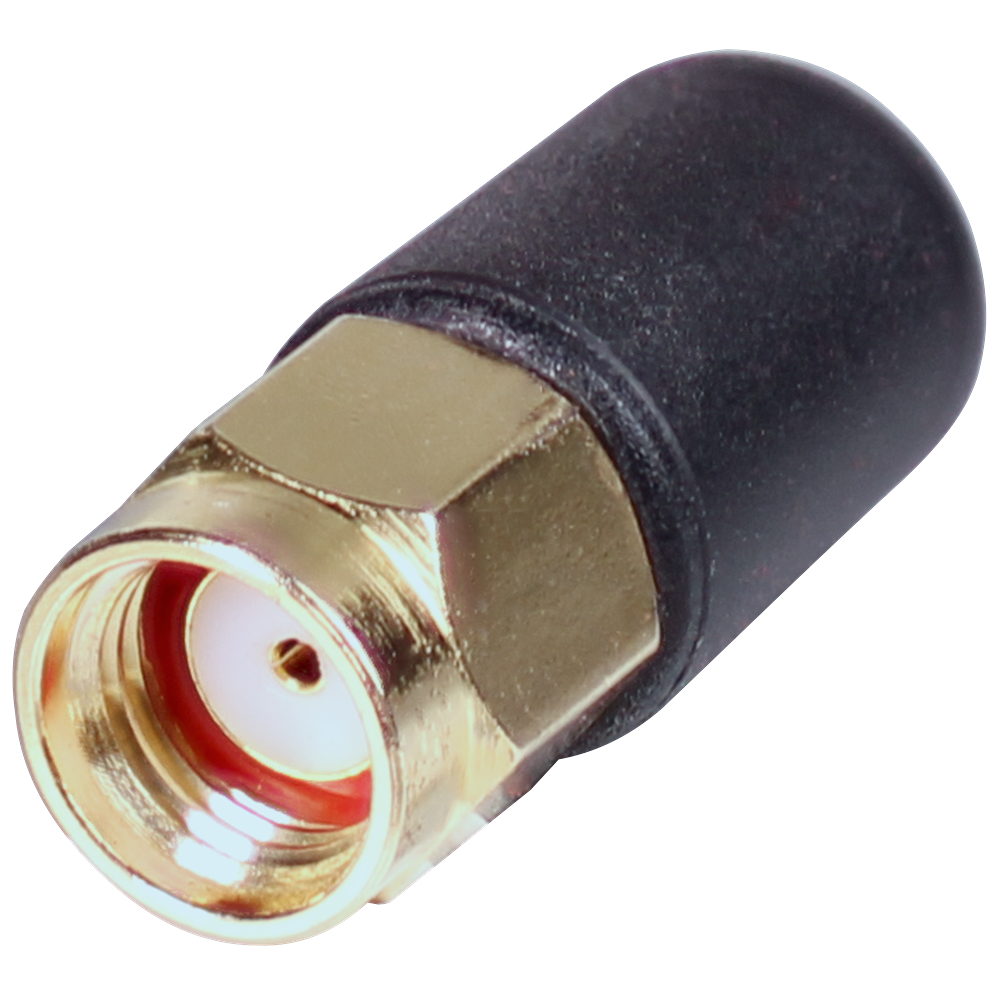

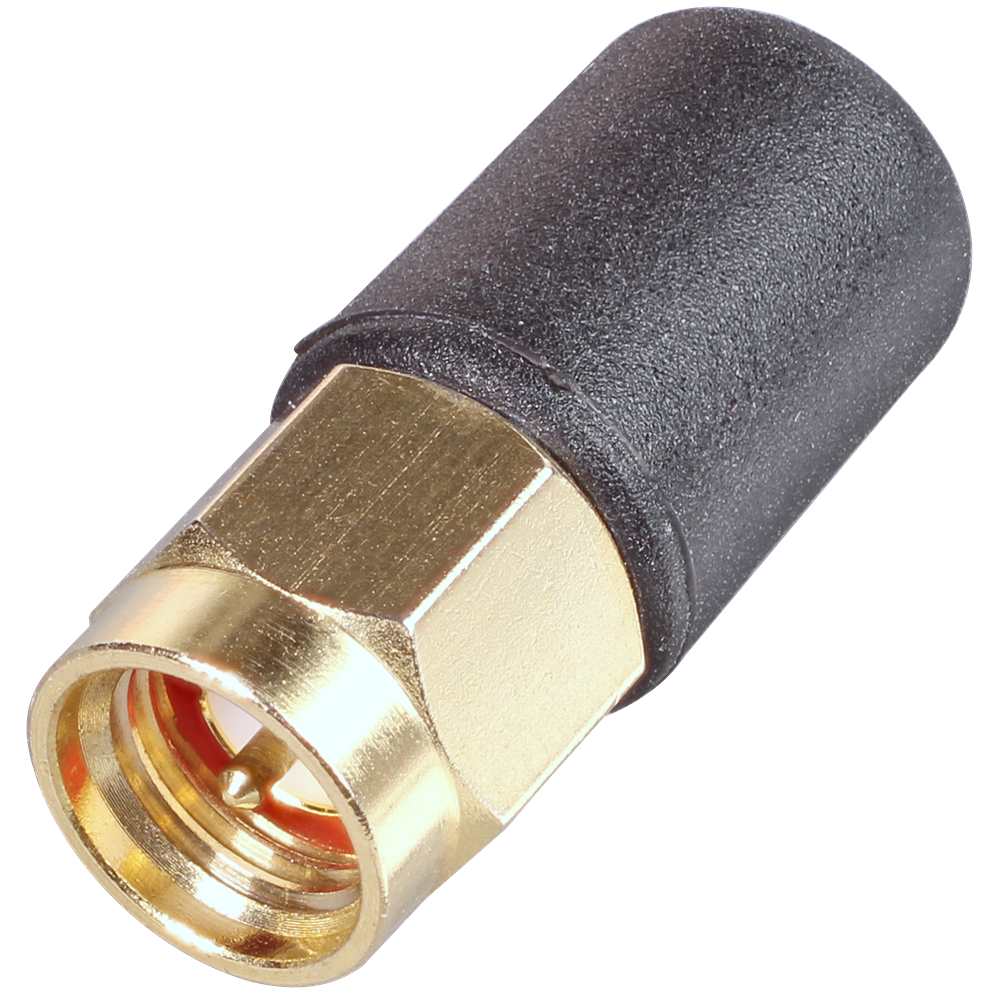

The 20 mm long straight whip antenna performs at the edge or center of a ground plane. The AC16504 whip antennas are available with SMA or reverse-polarity SMA (RP-SMA) plug (male) connector.
Categories: 2.4 GHz ISM, Connector Mount, External, Terminal Mount
Tags: BLE, Bluetooth, IEEE 802.15.4, IP68, ISM, Linear Polarity, Omnidirectional, Plug, RP-SMA, SMA, Straight, Stubby, Whip, ZigBee
Features
- Very high efficiency
- IP68 ingress protection
- Dimensions: 20.0 mm x 8.5 mm
- Performance at 2.4 GHz to 2.485 GHz
- VSWR: 2.2
- Peak Gain: 2.9
- Efficiency: 86
- SMA and RP-SMA termination options
Applications
- 2.4 GHz ISM applications
- Bluetooth®
- Bluetooth Low Energy (BLE)
- ZigBee®
- Wi-Sun
- Internet of Things (IoT) devices
- WLAN Gateways/Routers
Ordering Information
Part Number
Description
Buy
Specifications and Additional Information

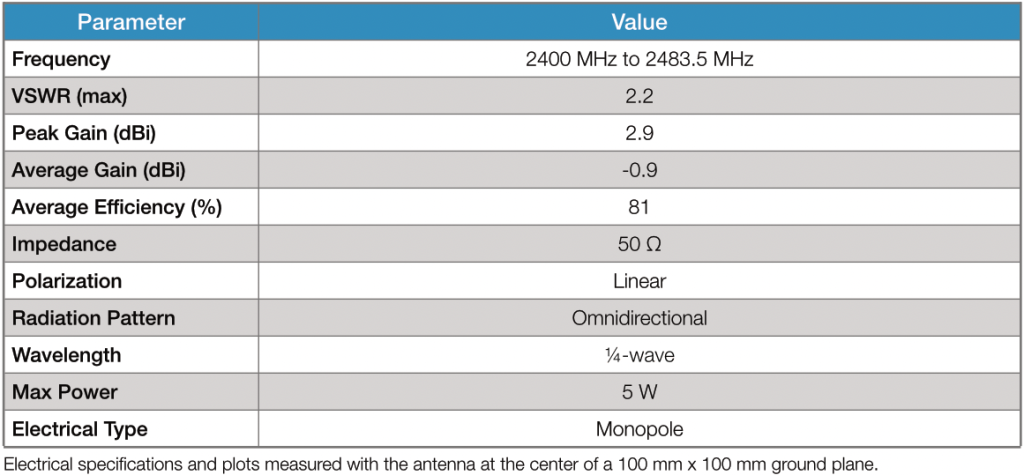

Electrical Specifications

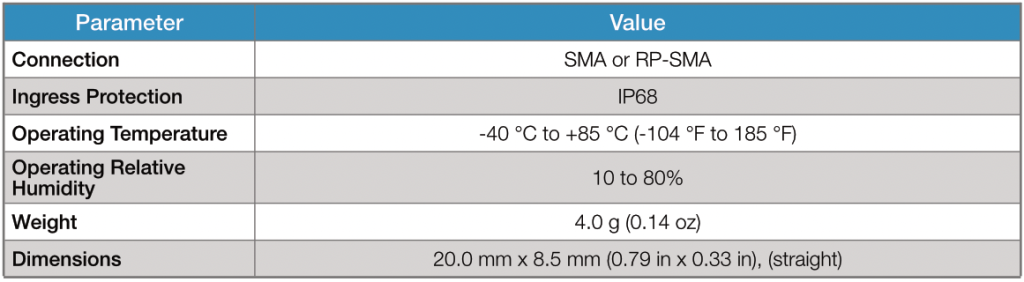

Mechanical Specifications
