Cabled Wideband Cellular External Compact Dome Antenna

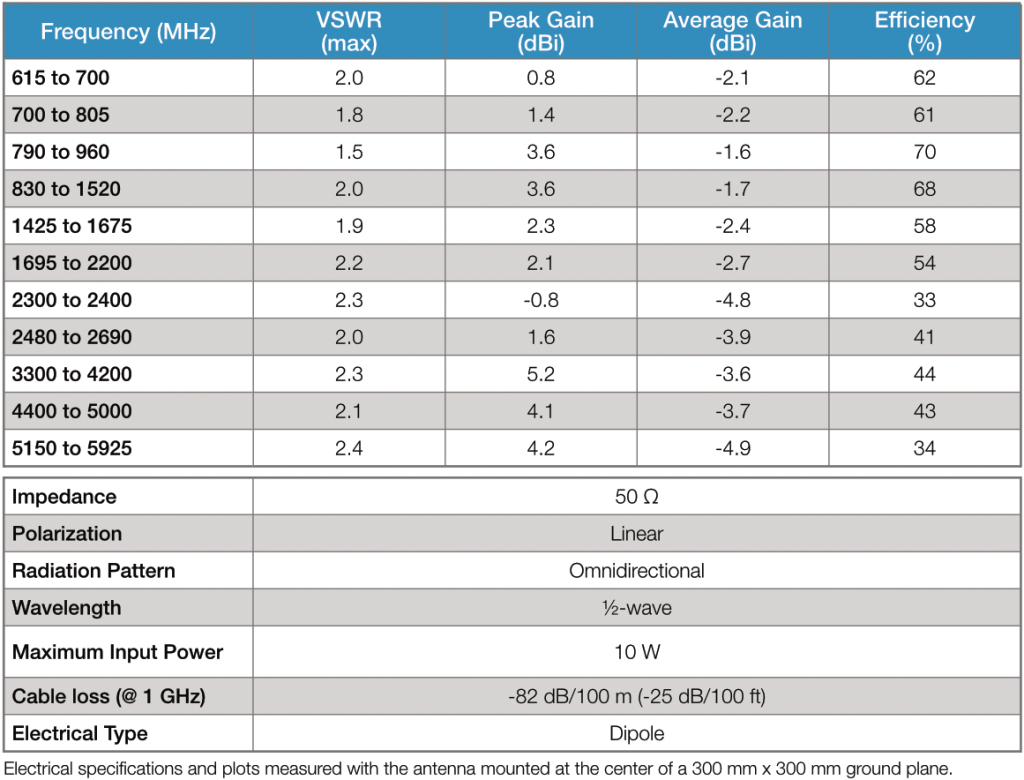

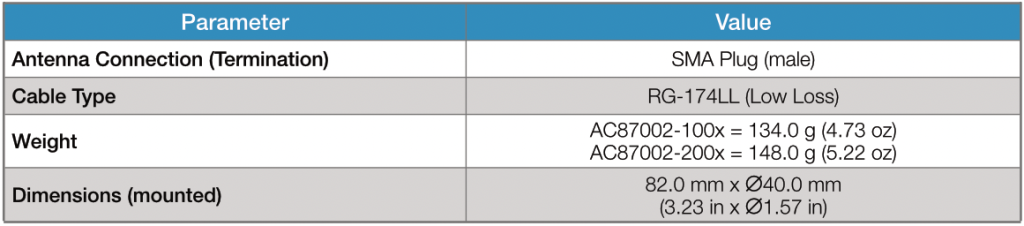

The Antenna Company AC87002 cabled SMA-connector dome antennas provide robust compact, outdoor, omnidirectional cellular antenna solutions for 5G/4G/LTE and cellular IoT applications including Cat-M1/LTE-M and NB-IoT systems from 617 MHz to 5925 MHz. Each antenna supports IP67 and IP65 ingress protection as well as IK-10 impact resistance, all under an attractive, UV-resistant, dome. The 82 mm x 40mm mounted size combines excellent antenna performance with a compact low-profile that fits in many applications from mobile/vehicular roof-mount to fixed vending machine use, and supports use on both metal enclosures or in free space including non-metallic enclosures.

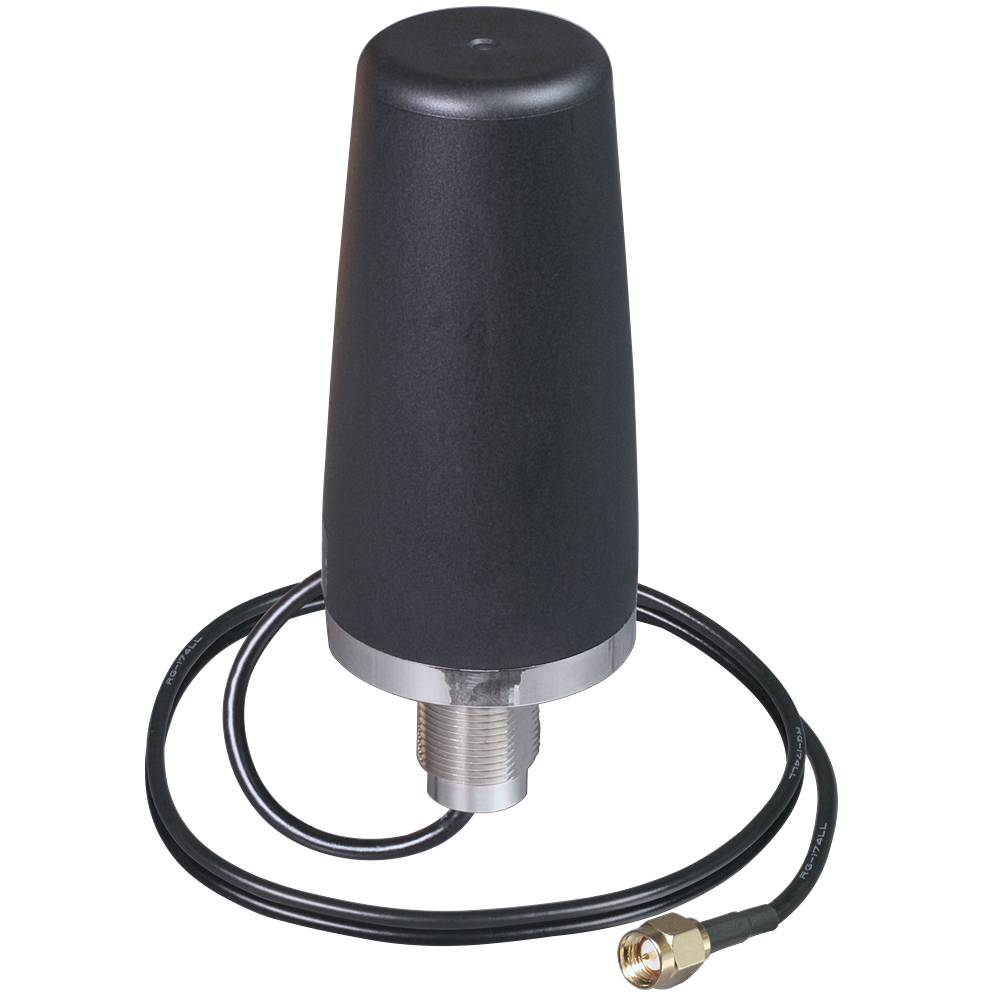

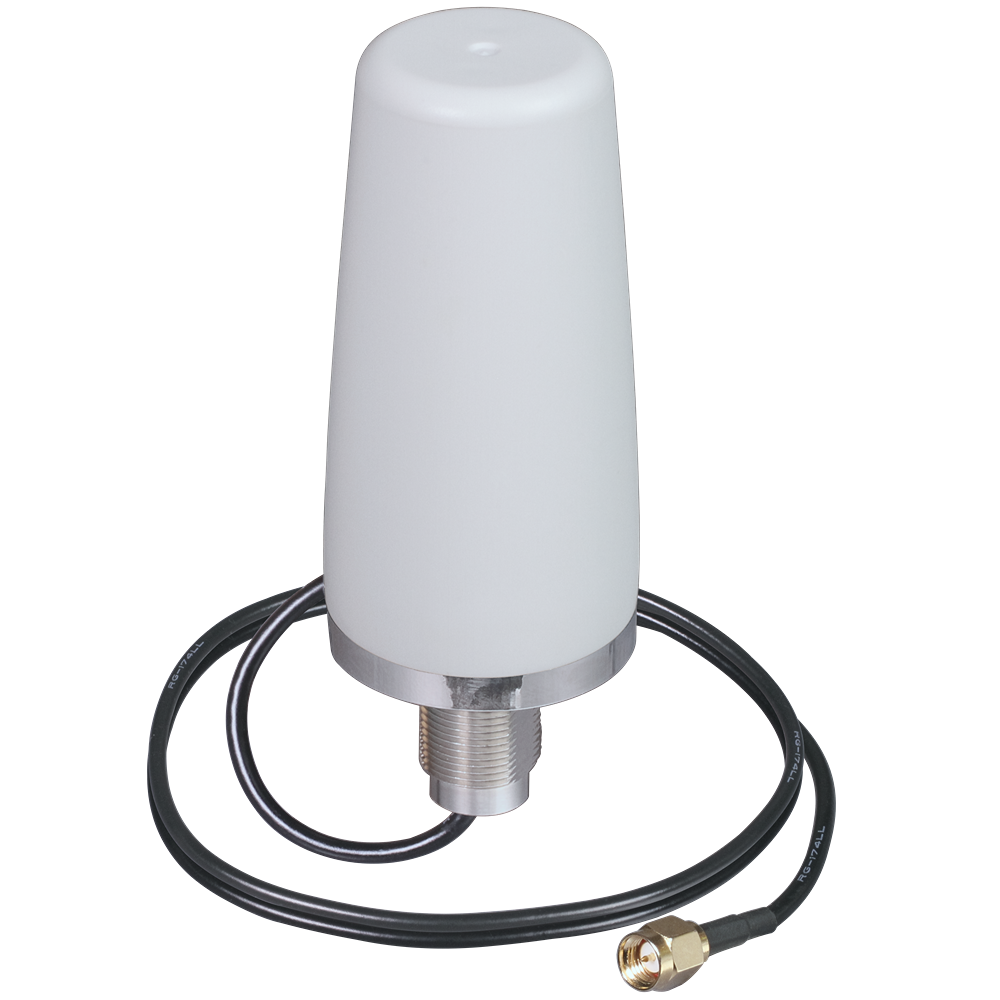

The AC87002 compact dome antenna series is available in black and white, with fine matte finish, and multiple cable lengths with SMA connector termination. Similar-performing NMO-terminated (AC85003-NM type) and N-connector (AC85003-NJ type) compact dome antennas are also available.
