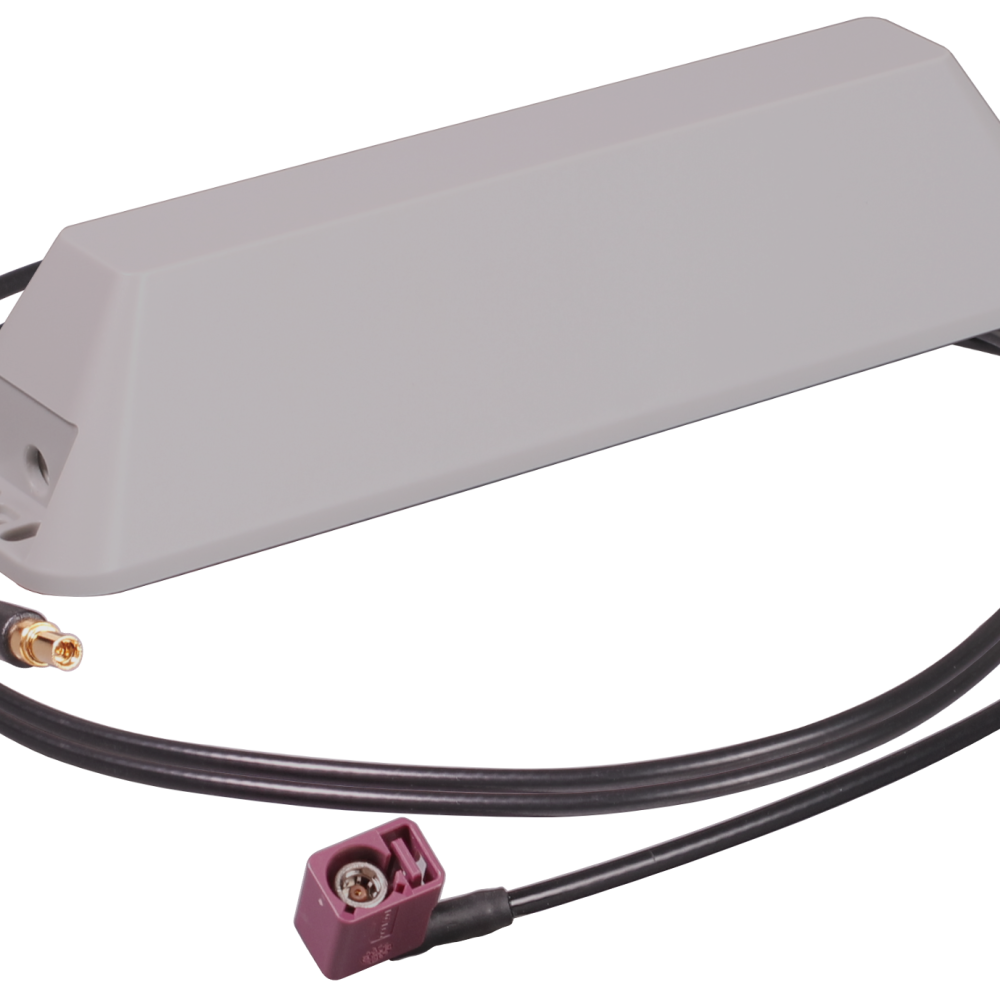

Low profile Multiband Cellular/4G Antenna

Low profile Multiband Cellular/4G Antenna

AC97002-100
Mounting type: External
Frequency band support: [698 – 960MHz], [1700 – 2700MHz]
Radiation pattern: Omni-Directional
Dimensions: 45 x 170 x 35 mm

Description & specifications

The AC97002-100 is an omni-directional indoor cellular antenna designed to minimize installation time. Its detachable cable with 6mm MMCX connector termination offers unprecedented advantages for cable routing when compared to competitor solutions with a bulky 22mm Fakra termination. Its high performance removes the need to investigate multiple mounting locations during installation and increases the success rate of mounting inside metal cabinets.

The AC97002-100 is intended for customers deploying infrastructure for smart utility applications: Smart metering (connection to smart meter gateways), Asset management and vending machines.

  • Smart detachable cable with 6mm MMCX connector termination:
    • Facilitates cable routing during installation
    • Avoids drilling holes in installation cabinets
    • Enables cable switch (longer cables available upon request)
  • Excellent Multiband coverage: 698-960MHz and 1700-2700MHz
  • Optimized performance at 698MHz to 960MHz (efficiency up to 70%) for better indoor signal penetration
  • Performance preserved on conductive and non-conductive surfaces
  • Barely noticeable due to neutral light grey color
  • RoHS and REACH compliant

Related products

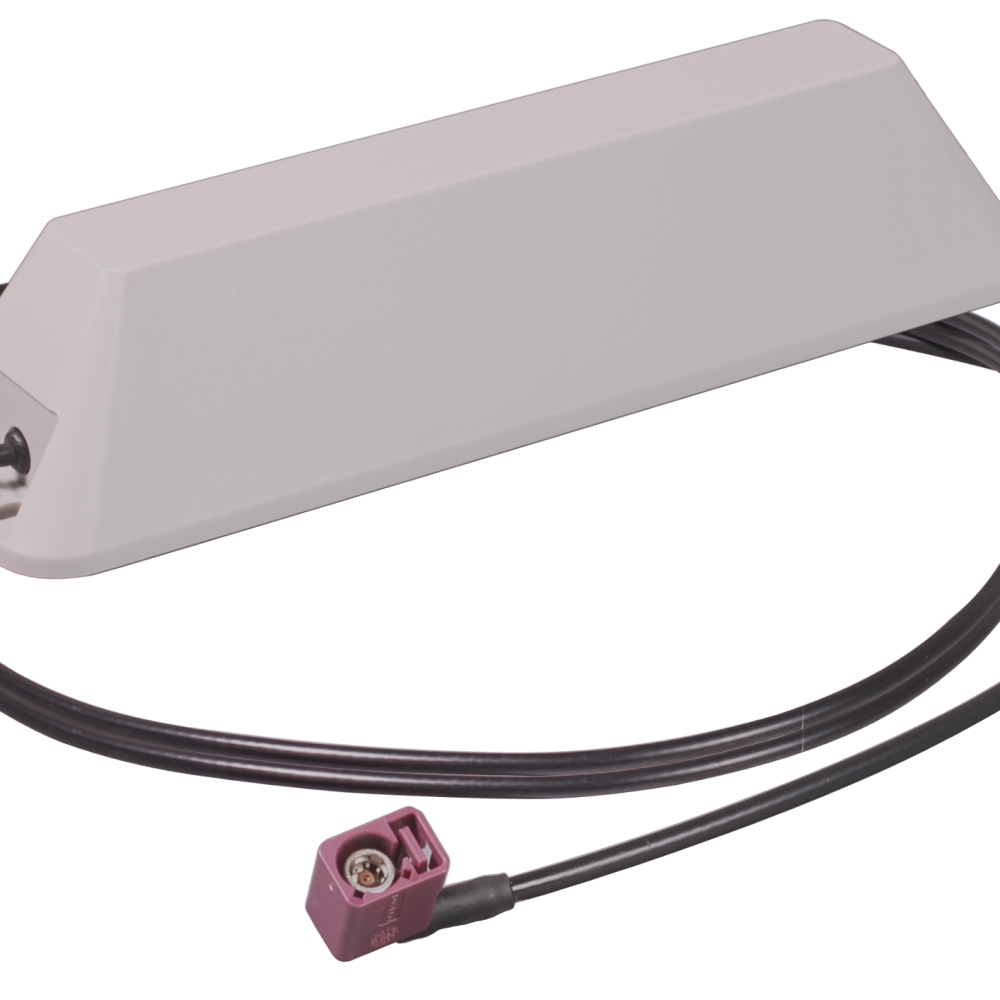

AC97002-150B
